Industrial steel structure design prefabricated poultry farm shed chicken house for layers

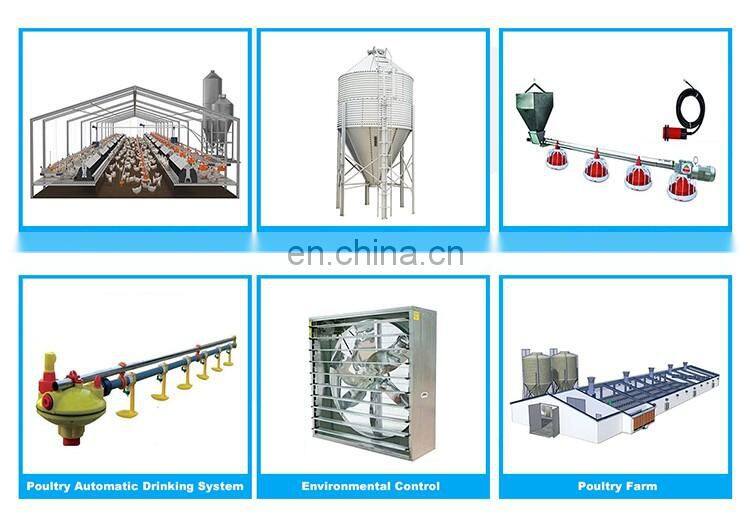

Full-automatic poultry house equipment from china supplier

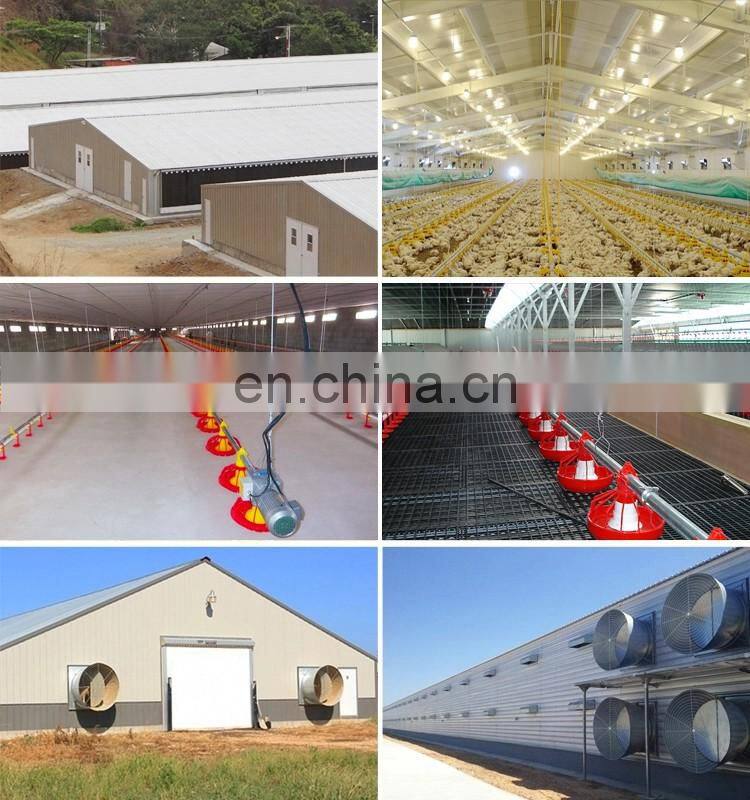

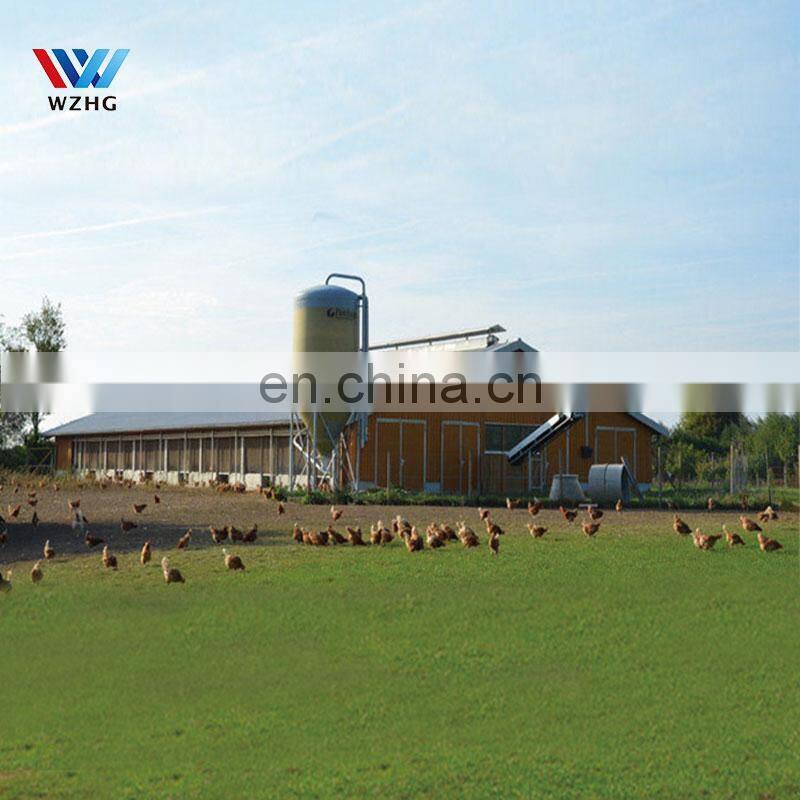

1.Steel structure poultry farm

2. Automatic main feed delivery system;
3. Automatic pan feeding system;
4. Automatic nipple drinking system;
5. Ventilation system;
6. Environment control system;
7. Cooling pad system;
8. Spraying system;
9. Heating system
10. Curtain system

A.Frame
High humidity and more ammonia can easily lead to some of the facilities corrosion. So we use galvanized H beam for columns and beams. We also use galvanized C beam for purlin. The galvanized frame can protect from being corroded thus can extend the life of the structure. Poultry shed in coastal city demand building have good wind resistance. We can design by the advanced software.

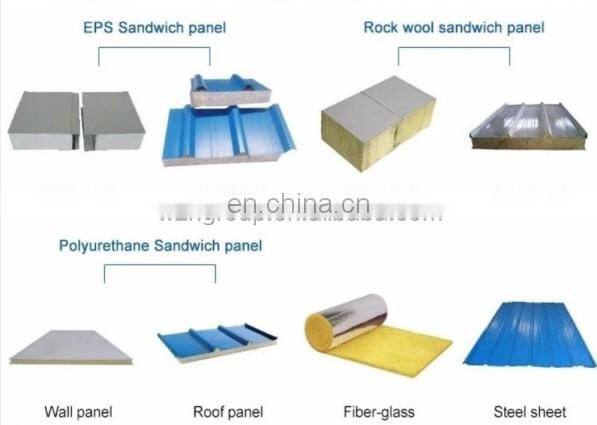

B. Panel
Depending on the climate in different regions, you can choose veneer or insulation composite panel. The plates have a variety of options colors. The board of tile can have a wide selection. Sandwich panels have EPS, glass fiber, rock wool. The panel can be heat insulation and prevent rust and corrosion. If you don't want to use the panel, you can use the wire mesh for wall. In hot or cold areas, we recommend to use composite panels, thermal insulation and heat insulation. Of course, the veneer price will be lower.
C. Height
Generally, if the poultry farm is free range farming, the height is 2m-3.5m. If it is cage farming, the height should be determined according to the number of cage layers.
D. Production time, installation time
About 3,000 square meters of the poultry shed, from design to sourcing to production finally ended is about a month.
E.Provide various types of ancillary farming equipment

(1. )Main feeding system is a complete set of automatic feeding system, included a material conveying pipe, silo, auger, drive motor and a feed level sensor.
(2) Main Feed line is mainly used to deliver feed from silo to the hopper in the poultry house. There is one feed sensor at the end of main feed line, which can control the drive motor on and off to realize automatically feeding.
(3)Different specifications of silos are alternative to choose according to the daily consumption.
Material of silo consist of galvanzied sheet and glass fiber reinforced plastic.
*If you don't use silo, you can use manpower hopper. Usually, if you just build one or two chicken house, we suggest you use hopper instead of silo

There is a sensor at each feeding line which controls motor on and off to achieve automatically feed delivery.
The motor will start working and deliver feed when the feed pan (with sensor)
Lacks feed and will stop working when the feed pan (with sensor) is full of feed

This system can provide fresh and clean water for poultry which is crucial for the growth of Poultry.
The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easier.

The system controls climate condition, can provide fresh air, proper humidity and temperature for birds, ensuring your chickens provide maximum production.
*The system including ventilation fan (box fan or butterfly cone fan) and air inlets.
*If your chicken farm is open, there is no need to use 36'' fan and air inlets, however, you
Might need curtain system.

Thickness: 100mm; 150mm
Width: 600mm
Height(with frame): 1660mm; 1960mm; 2160mm
Frame: Galvanized sheet/Aluminium alloy
When the air goes through the pad, the heat will be took down by the evaporation of water, so
The air will be cooled before going into the chicken farm

It's effective tool for cooling, damping, dedusting and disinfecting the house. (the tem-Perature is quickly reduced by 3-8 degrees centigrade within a few minutes)

Proper temperature is critical to chickens, especially day-old chicks, we have different kinds,
They fire coal, diesel, gas or use electricity, 4 kinds for your option

In some tropical zone, the farmers are inclined to use curtain instead of real walls(open farm),
They will use big fan accordingly.
Our curtain have two kinds for your choice, manual operated one and motorized one.

The system saves labor and resources under the condition of assuring the optimum growth environment of chickens.
It is imported from Israel can set an optimum working mode according to the local climate
And raising environment
