Free Design Furnished Light Steel Structure Prefabricated Long Span Eurocode Steel Structure Hall Building

Steel structure building as warehouse , storage shed and prefab house , office room

A. Introduction of the steel structure and steel structure building warehouse :
Compared with the traditional concrete structure building system, the light steel structure building projects have a series of advantages, such as large span, low demands of base structure, strong seismic and wind resistance, beautiful appearance, shorter construction cycle, strong corrosion resistance, non-polluted, low maintenance costs and so on. Therefore it is more and more popular with the customers. It is mainly used for large-span structures, workshops, warehouses, office buildings, large supermarkets, logistics warehouses, showrooms, hangar, etc.

B.Advantages of the steel structure building and prefabricated warehouse :
1)Economic : quick installed and saving the cost of construction

2)Reliable quality: mainly produced in the factory and control the quality , will checked quality before leaving the factory

3)Large span : the max span of prefab steel structure can reach 80 meters

4)Antiseismic: because the weight is light , max, is 8 grade .

5)Beautiful appearance: can use different colors and different models , double slope or with multi-span design

6)Long lifespan: design life time is 50 years

C.Design factor for the workshops and steel structure warehouse :
1 Location (where will it be built? ) _____country, city_____

2 Size: Length*width*height _____mm*_____mm*_____mm

3 Wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s

4 Snow load (max. Snow thickness)_____kn/m2, _____mm

5 Anti-earthquake grade_____

6 Brick wall needed or not. If yes, 1.2m high or 1.5m high?

7 Thermal insulation requirement. If yes, EPS/fiberglass wool/rock wool/PU sandwich panels will be suggested; If not, the metal steel sheets will be OK. The cost of the latter will be much lower than the former.

8 Door quantity & size _____units, _____(width)mm*_____(height)mm

9 Window quantity & size _____units, _____(width)mm*_____(height)mm

10 Crane needed or not. If yes, _____units, max. Lifting weight____tons; Max. Lifting height _____m

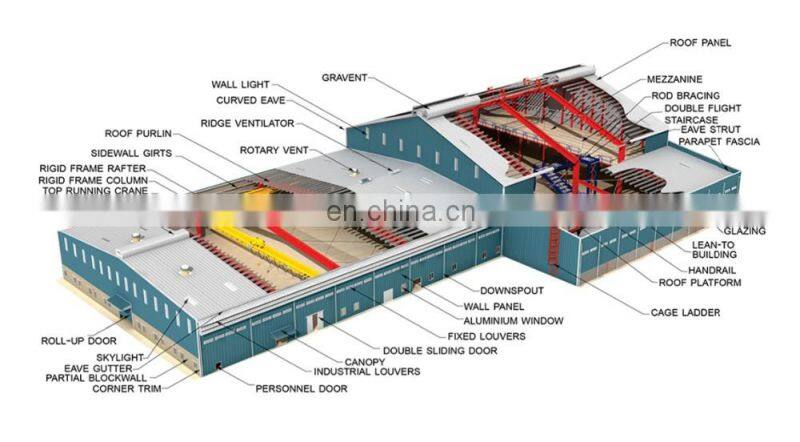

D. Main Steel Structure building used parts in the low cost industrial shed designs,

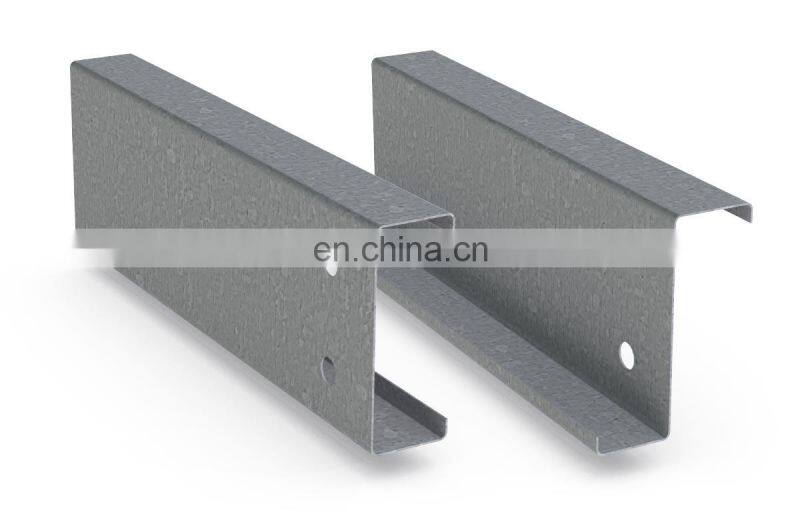

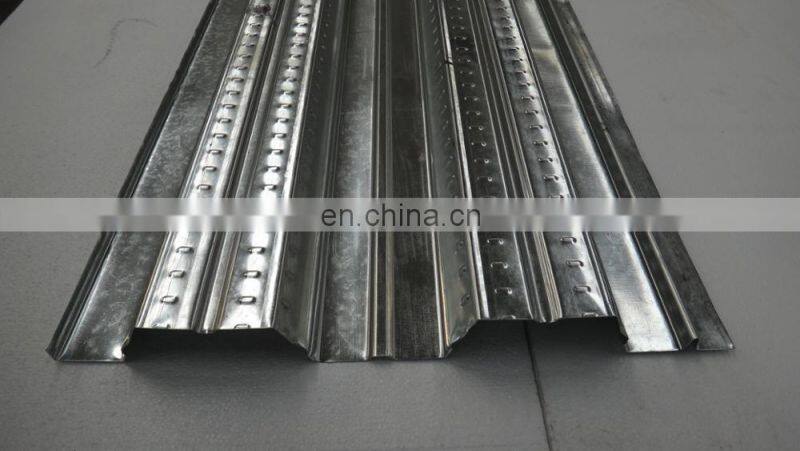

H beam, C purlin and floor decking are used as support brace

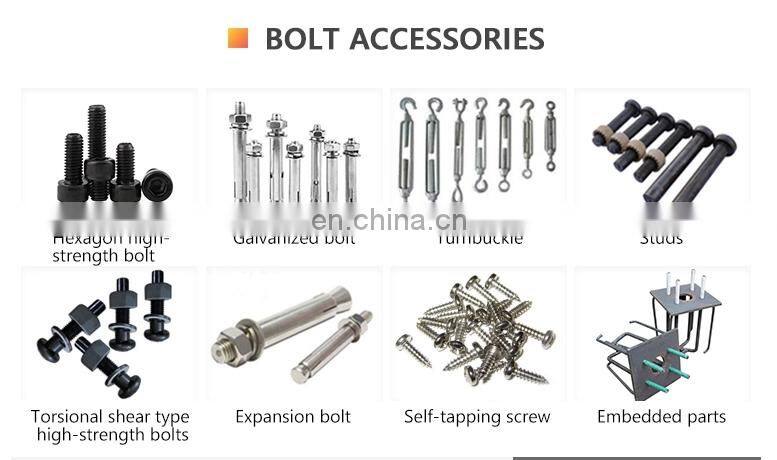

Foundation bolt and high strength bolt are used to fasten the support barce

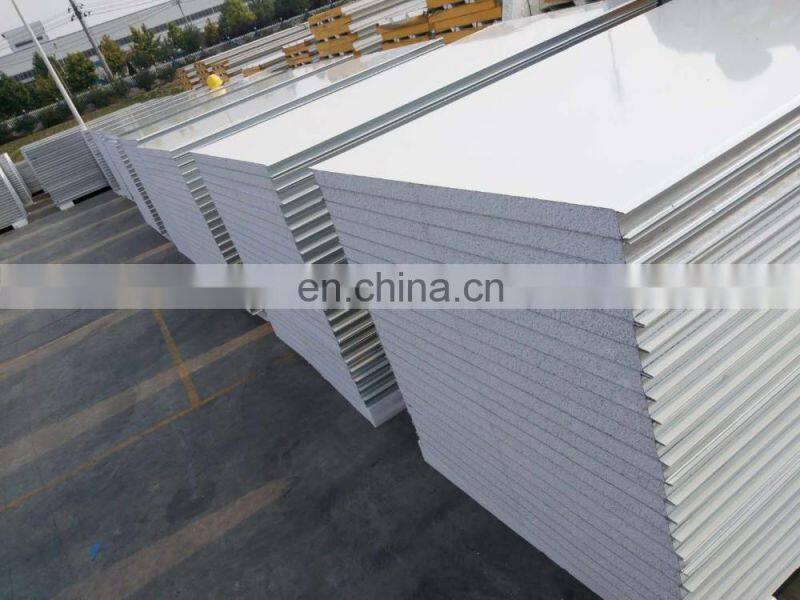

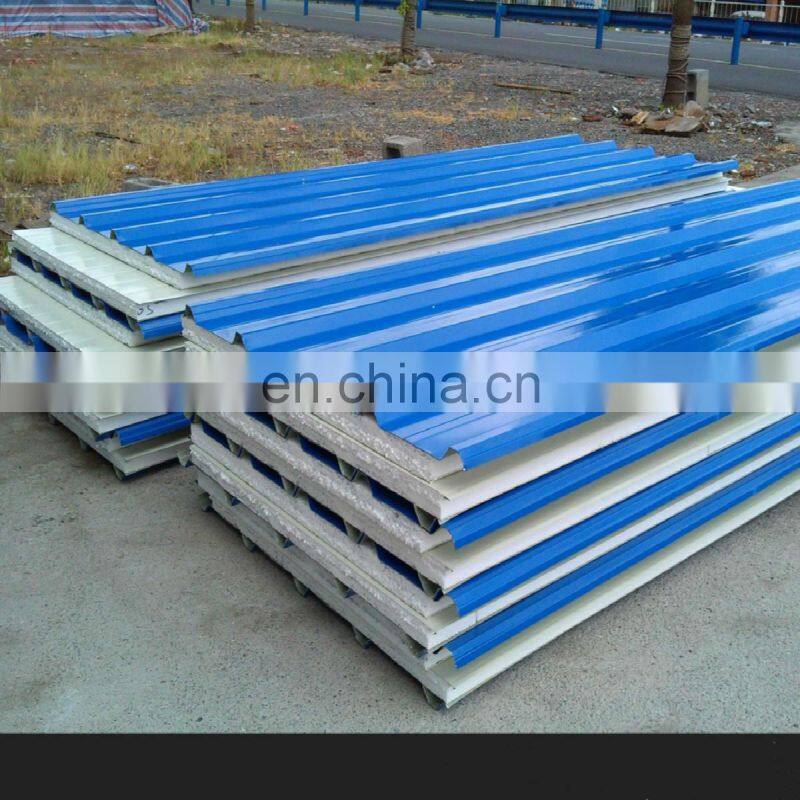

Wall panel and roofing panel: EPS or rock wool sandwich panel, or corrugated color steel

Skylight panel is used to day lighting

Steel plastic window and steel door

Accessories, such as tie bar, brace, screws

E. Deatails of the steel structure buildings and prefab apartments

F. More Detail of the metal buildings and self storage steel building

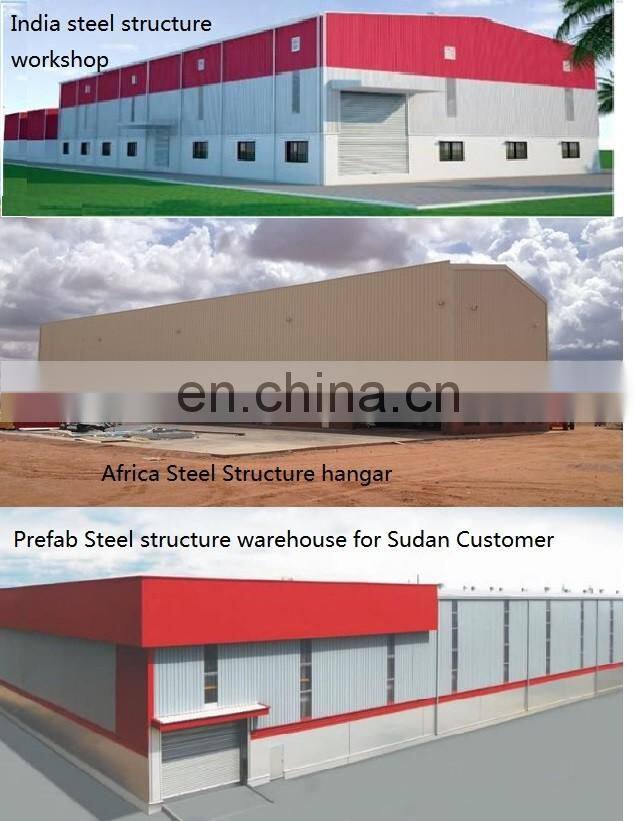

1 Simple Steel Structure Warehouse: Single span length is less than 18m, height is lower than 6m
2 Standard Steel Structure Warehouse/workshop: single span length is less than 24m, height is lower than 8m
3 Coastal (high wind speed) Steel Structure Warehouse/workshop: single span length is less than 18m, height is lower than 6m
4 Cold Region(heavy snow) Steel Structure Warehouse/Shop: single span length is less than 18m, height is lower than 6m
5 Steel Structure Warehouse/workshop with Crane (5T, 10T, 20T): single span length is less than 20m, height is lower than 10m

6.Roof: Color Galvanized Steel Sheet; sandwich panels in different thickness
7.Wall: Color Galvanized Steel Sheet; sandwich panels in different thickness

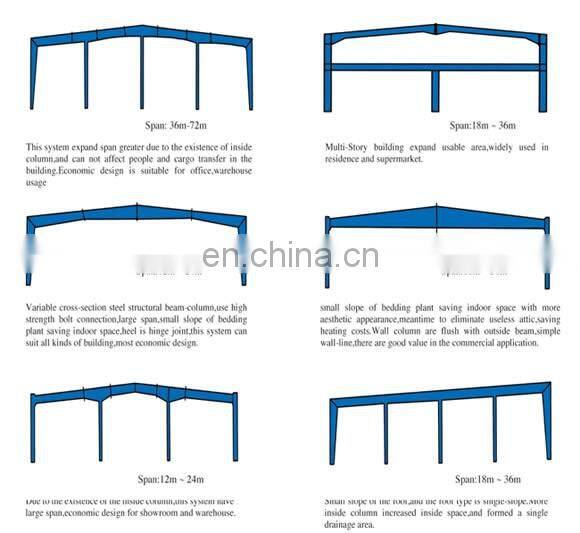

 Multi-Span is available , which is can be used for the different applications prefabricated steel warehouse price

A. Main Steel: Q345, Q235, Q345B, Q235B Etc

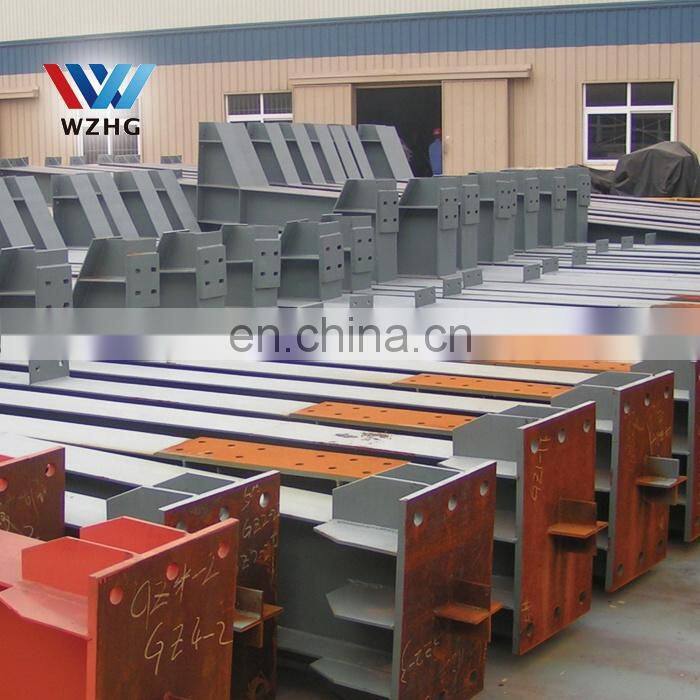

B. Colomn & Beam: Welded or hot rolled H section
C. Connection Method of Steel Structure: Welding Connection or Bolt Connection

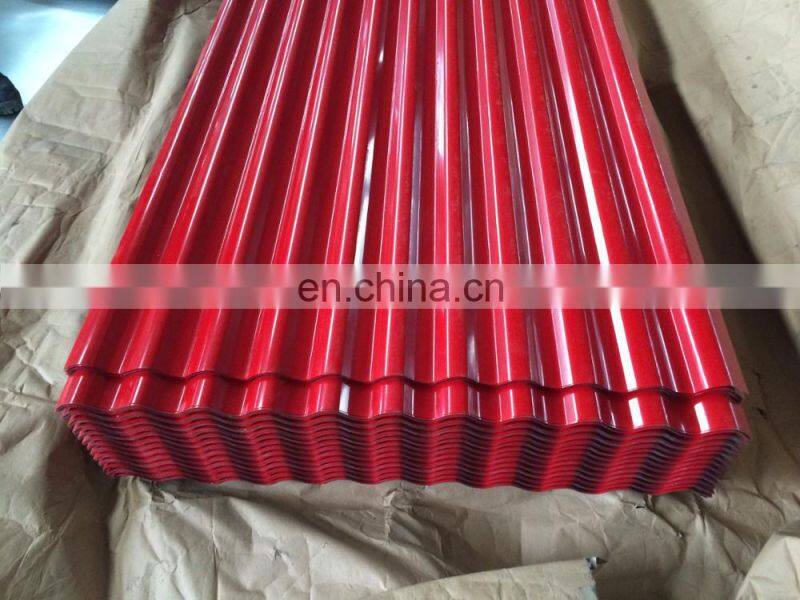

D. Wall & Roof: EPS, Rockwool, Glasswool, PU sandwich panels; Or corrugated Steel Sheet
E. Door: Rolling Door or Sliding Door
F. Window: UPVC window or Aluminum Alloy Window
G. Surface: Hot dipped galvanized Or grey color painted
H. Crane: 5MT, 10MT, 15MT and more

Installation of The steel structure formwork materials , sandwich panels for the steel building warehouse structure peb ,prefab insulated steel structure warehouse

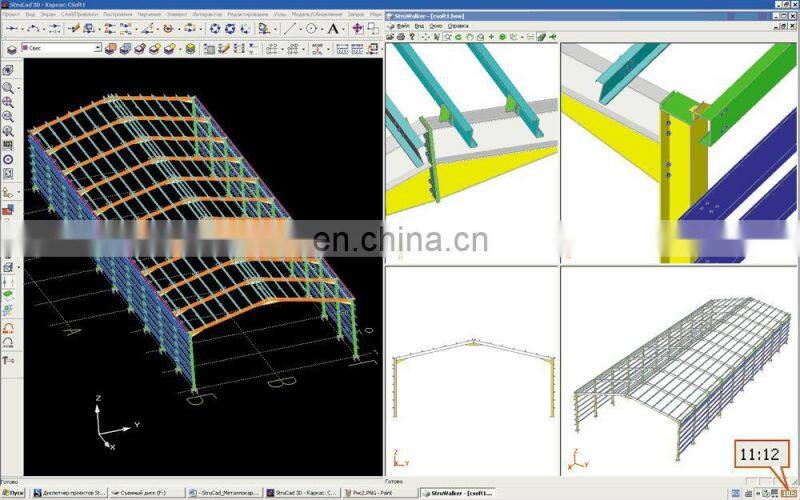

We we will supply detailed installation drawing for your steel structure building project, each component will be marked by different numbers, you only need to assemble them one by one according to our drawing. Certainly sales and engineer also will be here for your questions or problems, we will try our best to solve your problems in time.

Established in 2001, Weizhengheng Group covers an area of over 48,000 sqm, with more than 1,000 employees from 9 subsidiary companies together with offices. Each company enjoys its own feature.

Shijiazhuang Weizhengheng Light Steel Color Plate Co., Ltd, professional in export trade business, has more than six years of experience in this field. Hebei Weizhengheng Modular House Teck Co., Ltd., located in Shijiazhuang and specialized in steel frame villa and container houses design, product, sell and construction. Heilongjiang Weizhengheng Steel Structure Engineering Co., Ltd, located in Harbin, benefits from freight economy when exported to Russia. Beijing Weizhengheng Metal Structure Engineering Co., located in the capital city of China, may receive clients from the abroad while saving their time and energy. Other branch companies are Shenyang Tianying Light Steel Color Plate Co., Ltd, Hulun Buir Weizhengheng Light Steel Color Plate Co., Ltd, Ulanhot Weizhengheng Light Steel Color Plate Co., Ltd, Shandong Office, Manzhouli Office and Uganda Office.

Our main product
