Weizhengheng Group Low Price Two Story Prefabricated Bailey Steel Structure and Steel Structure Bridge

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

low price two story light steel structure frame house warehouse steel structure and steel structure bridge

Steel is widely used around the world for the construction of bridges from the very large to the very small. It is a versatile and effective material that provides efficient and sustainable solutions. Steel has long been recognised as the economic option for a
range of bridges. It dominates the markets for long span bridges, railway bridges, footbridges, and medium span highway bridges.
It is now increasingly the choice for shorter span highway structures as well. Society gains in many ways from the benefits delivered by steel bridge solutions. Landmark steel bridges embody good design, they are fast to build, and have stimulated the
regeneration of many former industrial, dock and canalside areas.
WZH Steel bridges are classified according to the Type of traffic carried, type of main structural system and the position of carriageway relative to the main structural system

WZH Bridges are classified as: Highway or road bridges / Railway or rail bridges / Road – cum – rail bridges

The roof and wall can be made of composite panel or veneer. Galvanized sheet metal can prevent rust and corrosion. The use of self-tapping screw can make the connection between the plates more closely, to prevent leakage. Composite panel for roof and wall can also be used in our system such as polystyrene, glass fiber, rock wool, polyurethane sandwich panel which have good thermal insulation, heat insulation, fire-retardant performace. The wall of the steel structure maintenance also can use brick wall.

Introduction of steel structure bridge
Material: Q235/Q345 Low Carbon Steel
Color: Blue; Green; Darkgray; Client's Request
Grade: SS400,S235JR,A36,Q235B Q345B Q460 45# 304 316
Standard: ISO,GB,JIS,ASTM,ANSI,AISI,DIN,BS

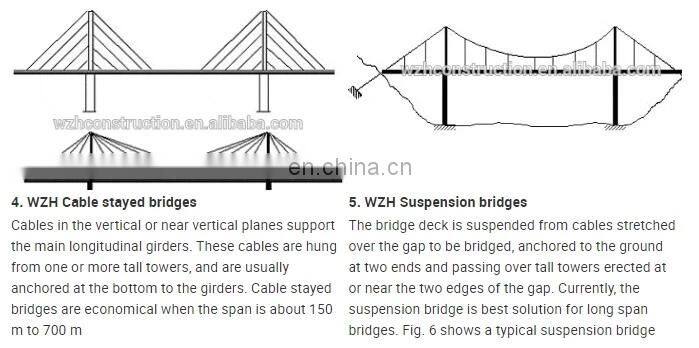

Classcification of Steel Bridge Many different types of structural systems are used in bridges depending upon the span, carriageway width and types of traffic. Classification, according to make up of main load carrying system, as follows:

Product Description

Specifications of the poultry farming chicken building and the prefab steel structure workshop	1)Size:MOQ is 10m2, width X length X eave height, roof slope
		2)Span: 9-180m,type:Single slope, double slope, muti slope; Single span, double-span, Multi-span, single floor, double floors!
		3)Height: 3-10m
		4)Slope: 1/20, 1/10,1/5,1/3
		5)column distance: 6-9m
		6) Base:Cement and steel foundation bolts
		7) Column and beam:Material Q345(S355JR)or Q235(S235JR) steel, all bolts connection! Straight cross-section or Variable
		8) Bracing: X or V or other type bracing made from angle, round pipe, etc
		9) C or z purlin:Size from C120~C320, Z100~Z200
		10) Roof and wall panel:Single colorfull corrugated steel sheet0.2 ~1.2mm thick, such as YX25-207-828 or sandwich panel :sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~150mm, YX40-320-960
		11)Accessories:Semi-transparent skylight belts, Ventilators, down pipe, outer gutter, etc
We are glad to bulid steel structre as your given drawing.If you need we design for you, pls supply us the following parameter together with detail size:
Design Parameters of the steel structure prefabricated houses	1)Live load on roof(KN/M2)
		2)Wind speed(KM/H)
		3)Snow load (KG/M2) if have
		4)Earthquake load if have
		5)Crane (if have) ,Crane span, crane lift height, max lift capacity
		6)Doors and windows: dimension, quantity, position
		7)The materials on the roof and the wall
		8)Crane need or not. if yes, please tell me the max lifting weight and max lifting height.
		9) If you have other requirements,please also inform us.
		10) It is better if you have your own drawings. please send them to me.

Prefab steel structure warehouse Steel Structure design and detailing

We have professional and normalized design team, through AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc, we can design complex industrial building like office building, supermarket, shopping mall, apartment, retail shop, workshop, warehouse, chicken shed and so on. Professional working team have been the basement for us to devote ourselves to build a world brand "WZHGROUP".

The advantages of light steel structure and the steel structure hangar and the steel warehouse structure

1)Economic : quick installed and saving the cost of construction for the steel structure home
2)Reliable quality: mainly produced in the factory and control the quality
3)big space: the max span of prefab steel structure can reach 80meters
4)antiseismic: because the weight is light
5)Beautiful appearance: can use different colors
6)Long lifespan: can be used more than 50 years

A. Main Steel Structures : Q345, Q235, Q345B, Q235B Etc
B. Colomn & Beam: Welded or hot rolled H section
C. Connection Method of Steel Structure: Welding Connection or Bolt Connection
D. Wall & Roof: EPS, Rockwool, Glasswool, PU sandwich panels; Or corrugated Steel Sheet
E. Door: Rolling Door or Sliding Door
F. Window: UPVC window or Aluminum Alloy Window
G. Surface: Hot dipped galvanized Or grey color painted
H. Crane: 5MT, 10MT, 15MT and more

Remark: this list is for your reference but the elements can vary.

Technique Index for the large span steel space frame structure warehouse
Earthquake resistante: 8 fission intensity
Wind pressure: <31m/s about 10 grade
Roofing snow load; <80kg/m2
Roofing live load: 50kg/m2

1. Economic : quick installed and saving the cost of construction
2. the period of delivery is very short and can installed very easily
3. Reliable quality: mainly produced in the factory and control the quality
4. big space: the max span of prefab steel structure can reach 80meters
5. antiseismic: because the weight is light
6. Flexible: can be dismantled and enlarged
7. Beautiful appearance: can use different colors
8. Long lifespan: can be used more than 30 years

In order to supply the most suitable drawing and best price for you, our design team need to confirm some information with you, as below:
1 Location (where will it be built? ) _____country, city_____
2 Size: Length*width*height _____mm*_____mm*_____mm
3 Wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
4 Snow load (max. Snow thickness)_____kn/m2, _____mm
5 Anti-earthquake grade_____
6 Brick wall needed or not. If yes, 1.2m high or 1.5m high?
7 Thermal insulation requirement. If yes, EPS/fiberglass wool/rock wool/PU sandwich panels will be suggested; If not, the metal steel sheets will be OK. The cost of the latter will be much lower than the former.
8 Door quantity & size _____units, _____(width)mm*_____(height)mm
9 Window quantity & size _____units, _____(width)mm*_____(height)mm
10 Crane needed or not. If yes, _____units, max. Lifting weight____tons; Max. Lifting height _____m

FAQ

1. You are manufacture factory or trading company?

We are manufacture factory. And you are welcomed to visit us at any time. The quality control flow and sales team will show you our professionalism. Also you will can get best and most competitive price after visiting us.
2. Is your price competitive compared with other companies?
Our business objectives are to give the best price with same quality and best quality with the same price. We will do everything we can to reduce your cost and guarantee you get the best product that you paid for.
3. Can you send engineers or whole team to install my project?
We will give detailed installation drawings and video for free. We can send engineers as installation director or a team upon request.
4. Do you accept container loading inspection?
You are welcomed to send an inspector, not only for the container loading, but any time during the production time.
5. Do you offer designing service for us?
Yes, we could design full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc. we can design complex industrial building like office mansion, super marker, auto dealer shop, shipping mall, 5 star hotel.
6. What is the delivery time?
Delivery time depends on order quantities. In general the delivery time to nearest seaport in China will be 30 days after receiving deposit.
7. How can you get a quotation for your projects?
You can contact us by email, phone, TM, WhatsApp, Skype, Viber and so on 24*7 and you will get reply within 8 hours.
