Portable Design Warehouse Galvanized Steel Frame Prefabricated Steel Structure Workshop Keter Photovoltaique Hangar Drawings

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

prefabricated steel building design with drawings for warehouse and workshop hangar

WZH Group

Weizhengheng Group was founded in 2001 and has a glorious history of 18 years until 2019. Since its development, it has become a leader in China's The group covers an area of 390,000 square meters and has more than 1,000 employees from more than 10 subsidiaries.

Main Structural Form

Steel Structure Workshop

Warehouse & Storage

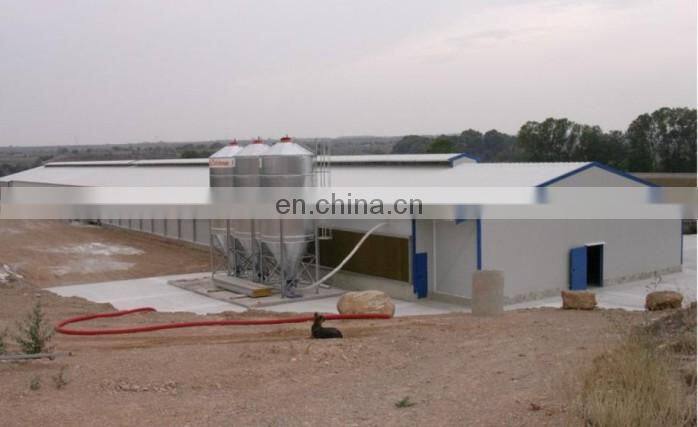

Chicken House

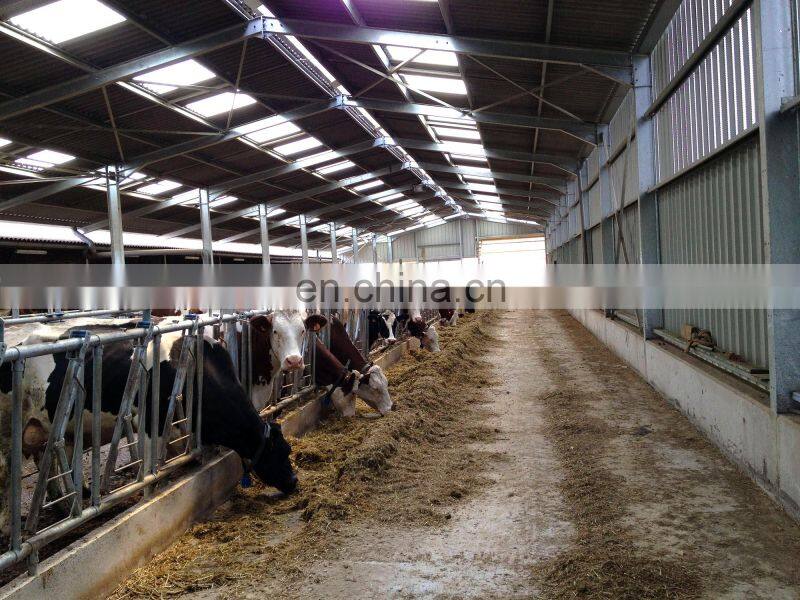

Cattle Shed

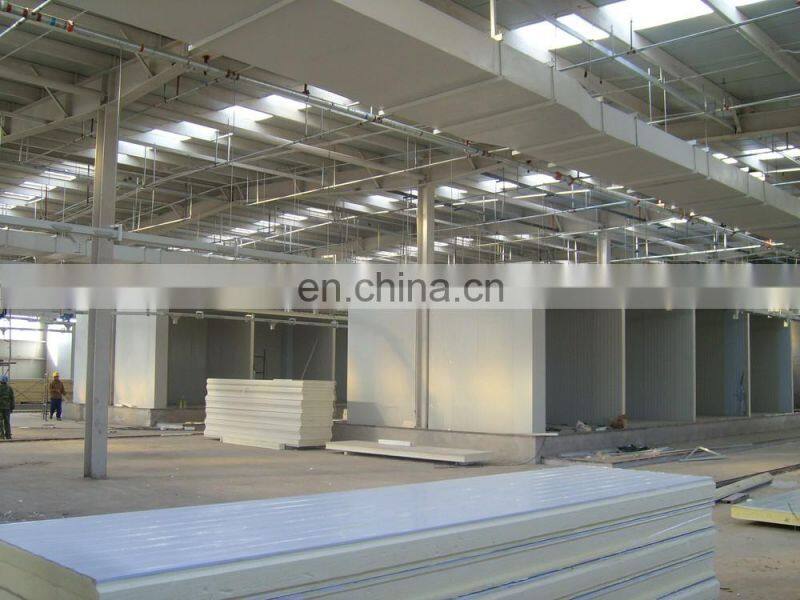

Industrial Coldroom

Commercial Building

Resident

Bridge

Success Experience

The company has passed ISO9001 quality system certification, ISO14001 environmental management system certification, OHSAS18001occupational safety management system certification and other international authority certifications. Heilongjiang Province is a veritable leader in the steel structure industry, and has a certain influence in the industry in northern China.

Some main project exporting
Projects Name	Dimensions	Located	Amount(FOB Tianjin Port)
Warehouse for machines storage	50m100m8m-Double Floors	USA	USD 185,050.00
Horse Barn	20m*50m	Australia	USD 41,000.00
Carport	33m*12m	Russia	USD 21,320.64
Storage Warehouse	35m15m10m-Double Floors	Swiss	USD 30,450.87
Storage Warehouse	3500m2	Mongolia	USD 301,000.00

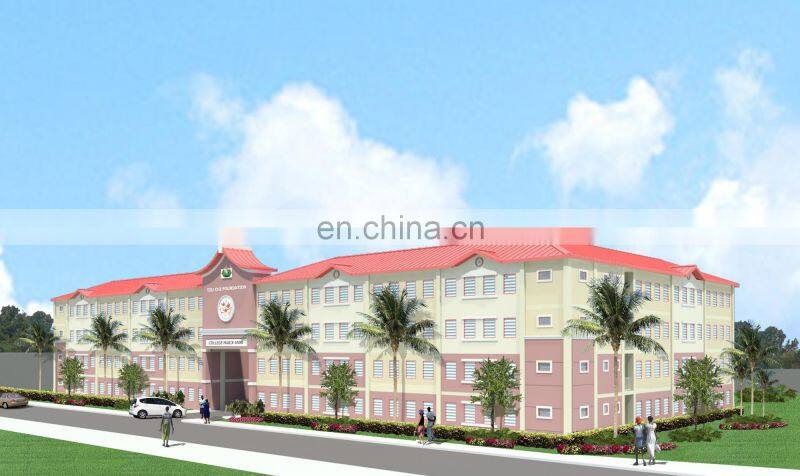

Steel Structure School	4 Story	Haiti	USD 500,258.87
Office	50m*20m	Bangladesh	USD 134,000.82
Warehouse	2000m2*8m	Dubai	USD 92,883.65
Warehouse	800m2	Tanzania	USD 54,400.72
Office	1080m2	France	USD 135,788.06
Guard Building	300m2	Algeria	USD 29,600.65
Workshop	500m2	Ghana	USD 43,980.00
Warehouse	1000m2	Thailand	USD 156,448.75

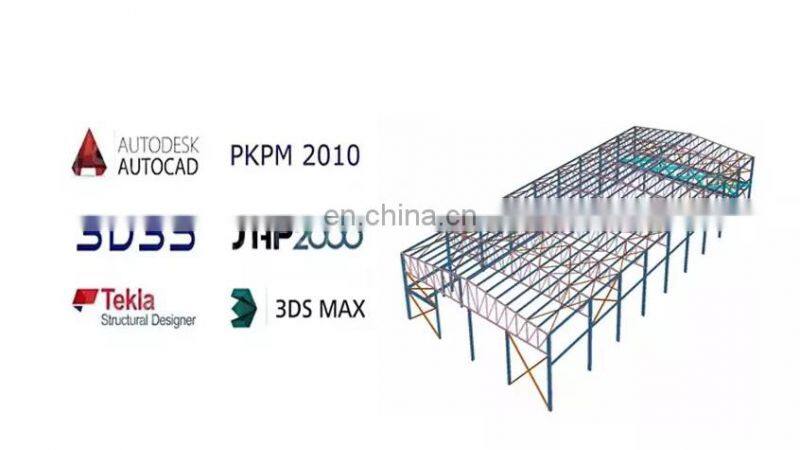

Steel Structure design and detailing

In order to supply the most suitable drawing and best price for you, our design team need to confirm some information with you, as below:
1 Location (where will it be built? ) _____country, city_____
2 Size: Length*width*height _____mm*_____mm*_____mm
3 Wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
4 Snow load (max. Snow thickness)_____kn/m2, _____mm
5 Anti-earthquake grade_____
6 Brick wall needed or not. If yes, 1.2m high or 1.5m high?
7 Thermal insulation requirement. If yes, EPS/fiberglass wool/rock wool/PU sandwich panels will be suggested; If not, the metal steel sheets will be OK. The cost of the latter will be much lower than the former.
8 Door quantity & size _____units, _____(width)mm*_____(height)mm
9 Window quantity & size _____units, _____(width)mm*_____(height)mm
10 Crane needed or not. If yes, _____units, max. Lifting weight____tons; Max. Lifting height _____m

The operation and Quality inspection

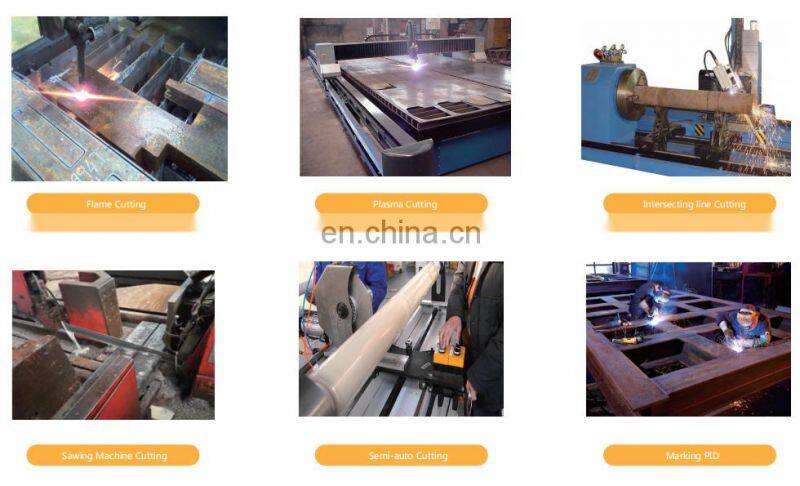

Our main hardware and equipment

rock wool production line, Frame CAD light steel keel production system, modern CNC C-shaped steel composite plate production line, plasma cutting machine, shearing machine, uncoiling machine, shot blasting machine, intersecting line cutting machine, plate rolling machine , Submerged arc welding machine, CNC plane drill, SKLH gantry type automatic welding machine, SHHJ flange correction machine, 3D CNC cutting machine, etc.

Painting Choose
Buttom Paint	Epoxy mica middle paint, inorganic zinc rich middle paint, high chlorinated polyethylene middle paint, epoxy coal tar middle paint
Middle Paint	Epoxy mica middle paint, inorganic zinc rich middle paint, high chlorinated polyethylene middle paint, epoxy coal tar middle paint
Face Paint	Alkyd enamel, polyurethane topcoat, acrylic polyurethane paint, inorganic zinc-rich topcoat, fluorocarbon topcoat, high chlorinated polyethylene topcoat, epoxy coal tar topcoat, silicone high temperature resistant topcoat, acrylic polyurethane metal paint, Fluorocarbon metallic paint, epoxy top coat

Quality Test

We take continuous testing during the production process and quality inspection of the finished products to strictly ensure that the finished products comply with various countries

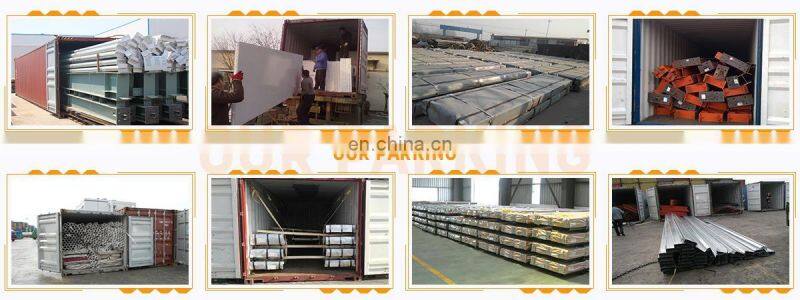

Our Packing

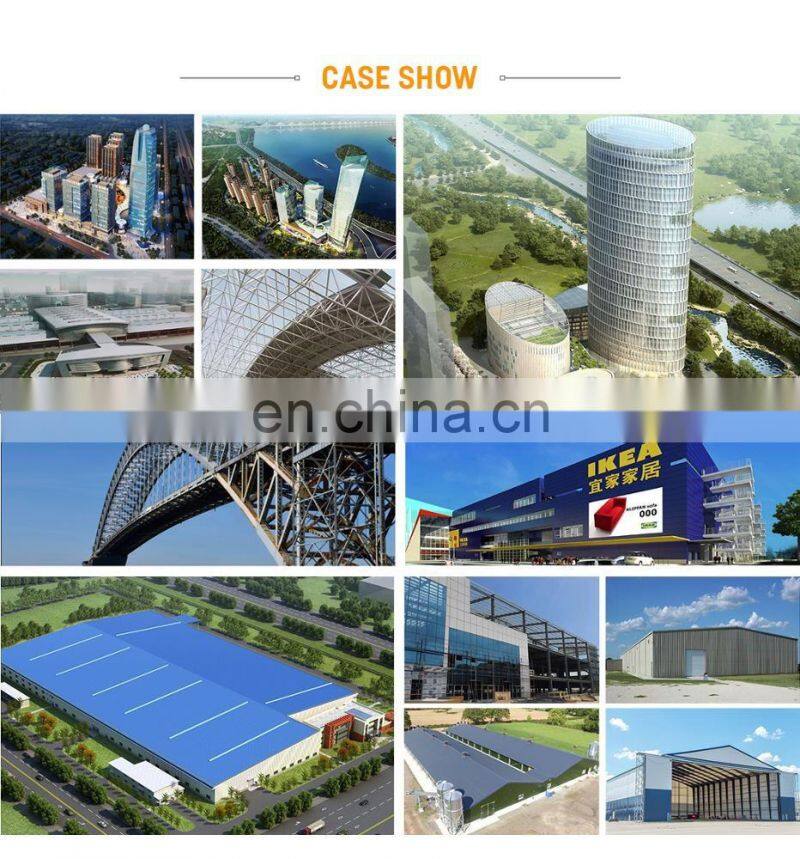

Cash Show

Related products

High-Rise Frame Structure

Multi-Story Frame Struture System

Steel Structure Bridge System

Grid Structure System

Steel Structure Warehouse ,Workshop , Hall

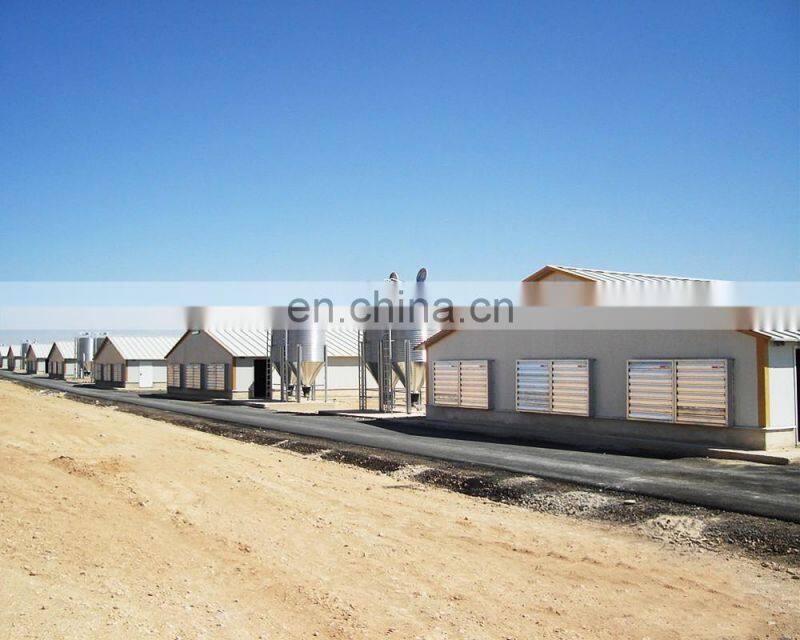

Steel Structure Poultry Farm And Shed

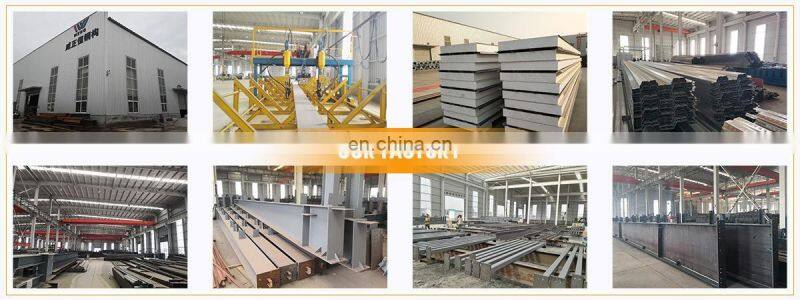

Our Factory

The Group's production, processing and manufacturing machinery and equipment technology are at the leading level in the domestic industry. The group's products mainly include: H-shaped structure, round pipe structure, box structure, cross structure, pipe truss structure, steel box girder for bridges, prefabricated buildings, integrated houses, various types of composite steel plates, rock wool boards, etc. Ancillary products, group products have the advantages of stable and durable quality, safe use,
earthquake resistance, energy saving and environmental protection, fast installation, beautiful appearance, etc., and can be widely used in industrial plants, storage facilities, commercial and residential real estate, stadiums, exhibition centers,bridges and tunnels Large industrial and civil buildings.
