Home > Products > Steel Structure Building > Steel structure shopping mall green energy saving hot sales prefabricated modular steel structure warehouse
Steel structure shopping mall green energy saving hot sales prefabricated modular steel structure warehouse
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- Industrial great boss customized museum workshop shed big prefab house steel structure warehouse
- Fast 8 Hours Assembly High Quality French Windows prefab house container home Foldable Smart House
- Customized prefabricated steel structure building modern hotel factory workshop warehouse steel building
- Gable frame light metal building prefabricated industrial steel structure warehouse for sale
- Prefabricated Steel Structure Industrial Building
- Steel Structure Warehouse large span workshop prefabricated building low cost steel frame industrial shed
Product Description
Steel structure shopping mall green energy saving hot sales prefabricated modular steel structure warehouse

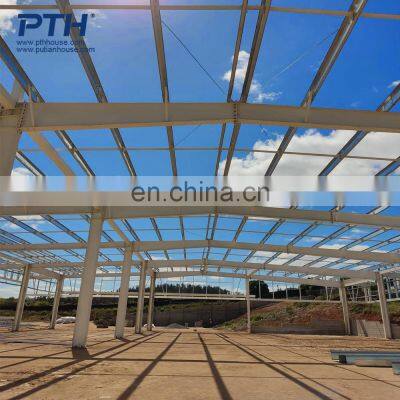

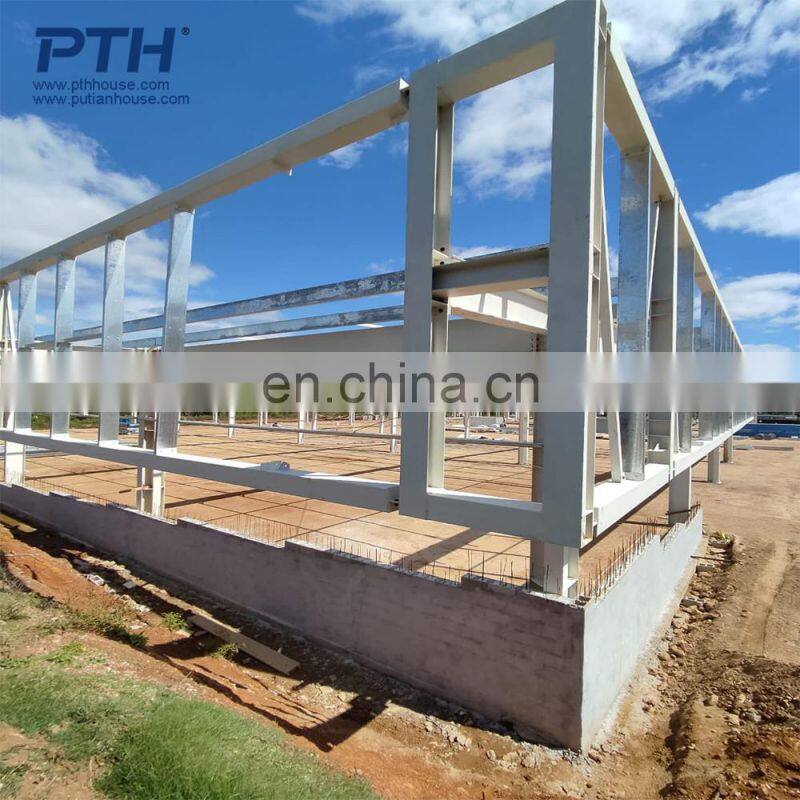

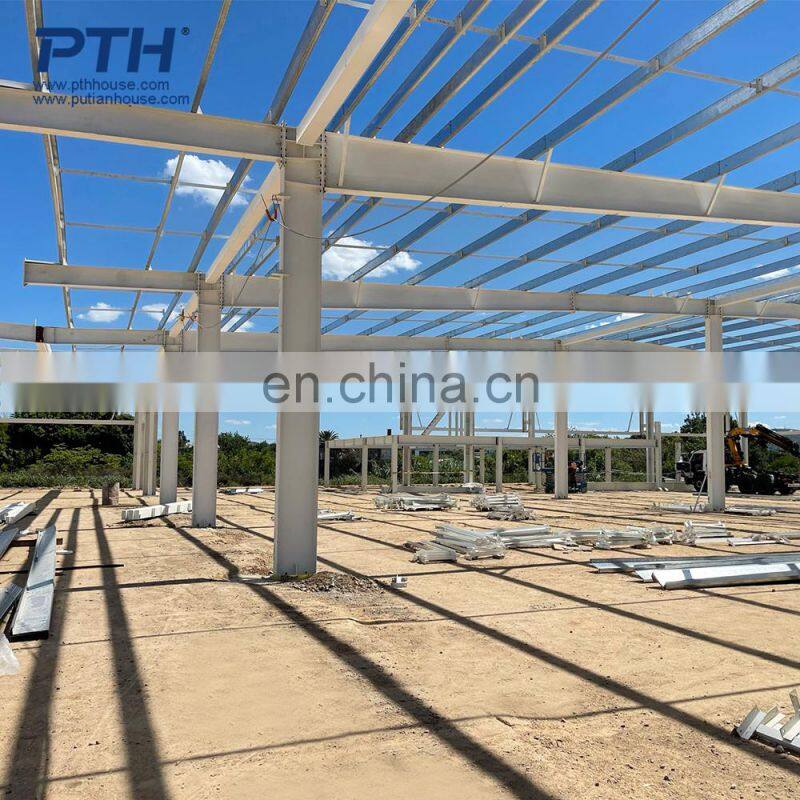

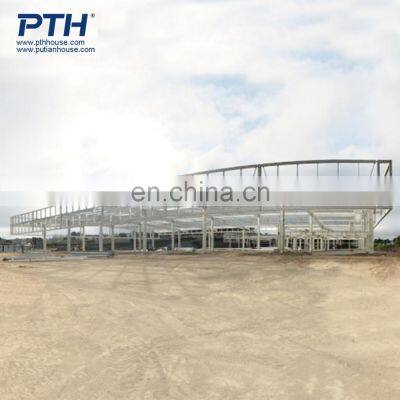

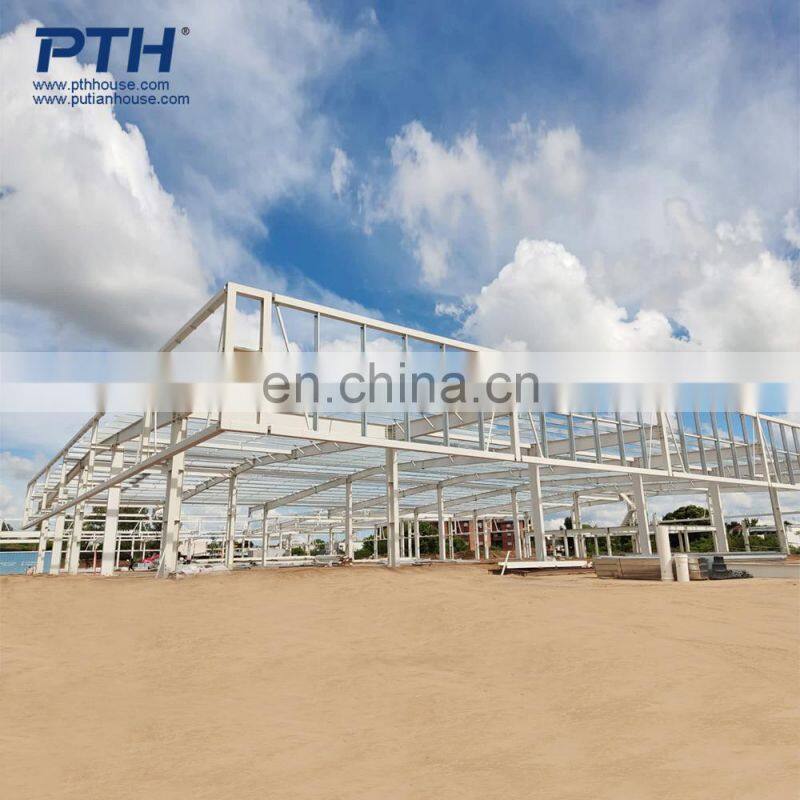

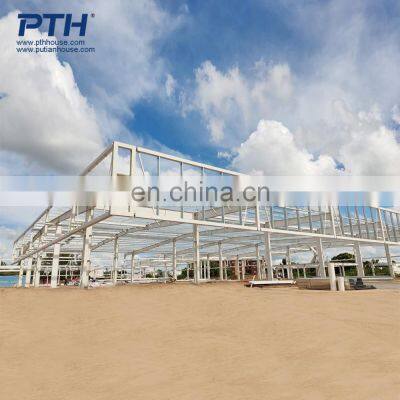

Detailed Photos
Products Description
PTH provides single-story steel structure building and multi-story steel structure building.

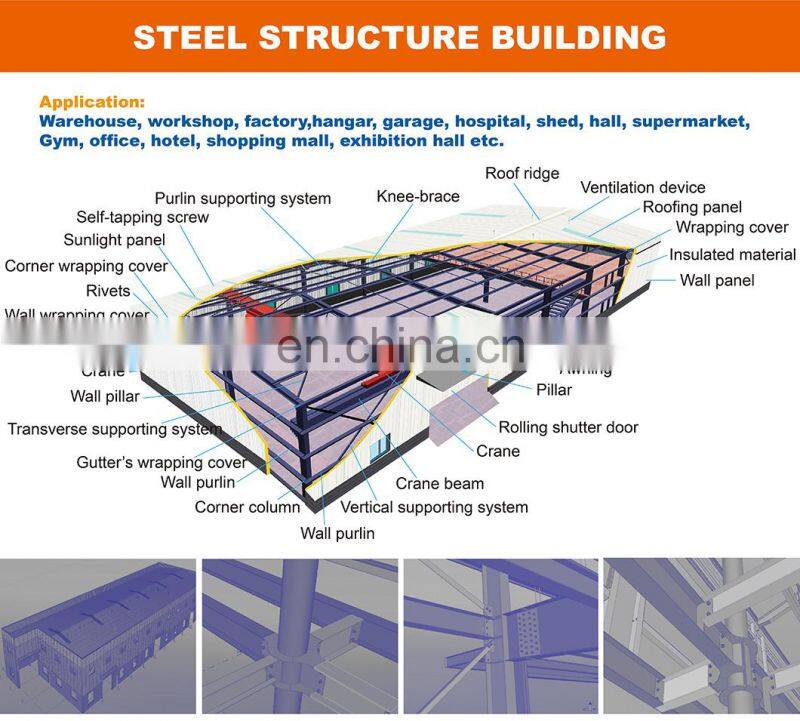

Steel structure building is made of heavy steel frame and cladding panels, doors and windows etc. Main Column and rafter are welded H -steel, purlin is steel with galvanization 275g/m2, can be C or Z section. Secondary steel components are L- steel, CHS, SHS, RHS, round steel rod, etc. Most of the steel componnets are connected by bolts.
Options: one floor or multi-floor, crane, skylight, ventilation etc.
Options: one floor or multi-floor, crane, skylight, ventilation etc.
Main Structure | Column | Q355/Q235 H- steel , Box column is also available |
Rafter, Beam | Q355/Q235 H- steel | |
Surface processing options | 1. Epoxy zinc-rich primer + epoxy mica intermediate paint (120μm thickness) | |
2. Hot dip galvanization | ||
Sub Structure | Purlin | Q355B, C/Z steel section, galvanization 275g/m2 |
Angle brace | Q235B, L- steel | |
Cross bracing | Q235B round bar, L-steel | |
Tie bar | Q235B, round pipe | |
Batter brace | Q235B, round bar | |
Roof System | Roof panel options | 1. Insulated sandwich panel, PU, rock wool, glass fiber, EPS. Two sides is steel sheet. Thickness of roof panel 50mm/75mm/100mm, thickness of steel sheet 0.4mm/0.5mm/0.6mm |
2. Steel plate, thickness 0.4mm/0.5mm/mm | ||
Gutter options | 1. Galvanized steel gutter, thickness 2.0mm/2.5mm, 3.0mm | |
2. Painted, Pre-finished steel gutter, thickness 0.4mm/0.5mm/0.6mm | ||
Down spout | PVC pipe | |
Steel flashing and cover | Steel sheet for roof ridge cap, gable wall end cover and corner cover | |
Options | Roof skylight 1.8mm PVC sheet and stainless steel ventilator | |
Wall System | Wall panel options | 1. Insulated sandwich panel, PU, rock wool, glass fiber, EPS. Two sides is steel sheet. Thickness of roof panel 50mm/75mm/100mm, thickness of steel sheet 0.4mm/0.5mm/0.6mm |
2. Steel plate, thickness 0.4mm/0.5mm/mm | ||
3. Brick wall (provided by client) | ||
Door | 1. Roller door for truck, size customized | |
2. Sliding door for truck, size customized | ||
3. Access door, steel door, glass door etc. | ||
Window | PVC or Aluminum frame, Fixed, swing, sliding, louver etc, size customized | |
Steel flashing and cover | Steel sheet end cover and corner cover | |
Accessories and fasteners | Anchor bolts, chemical bolts, high strength bolts, ordinary bolts, self-drilling screws, rivet etc. | |
Other Options | Crane 5T, 6T, 10T, 16T, 30T etc. |

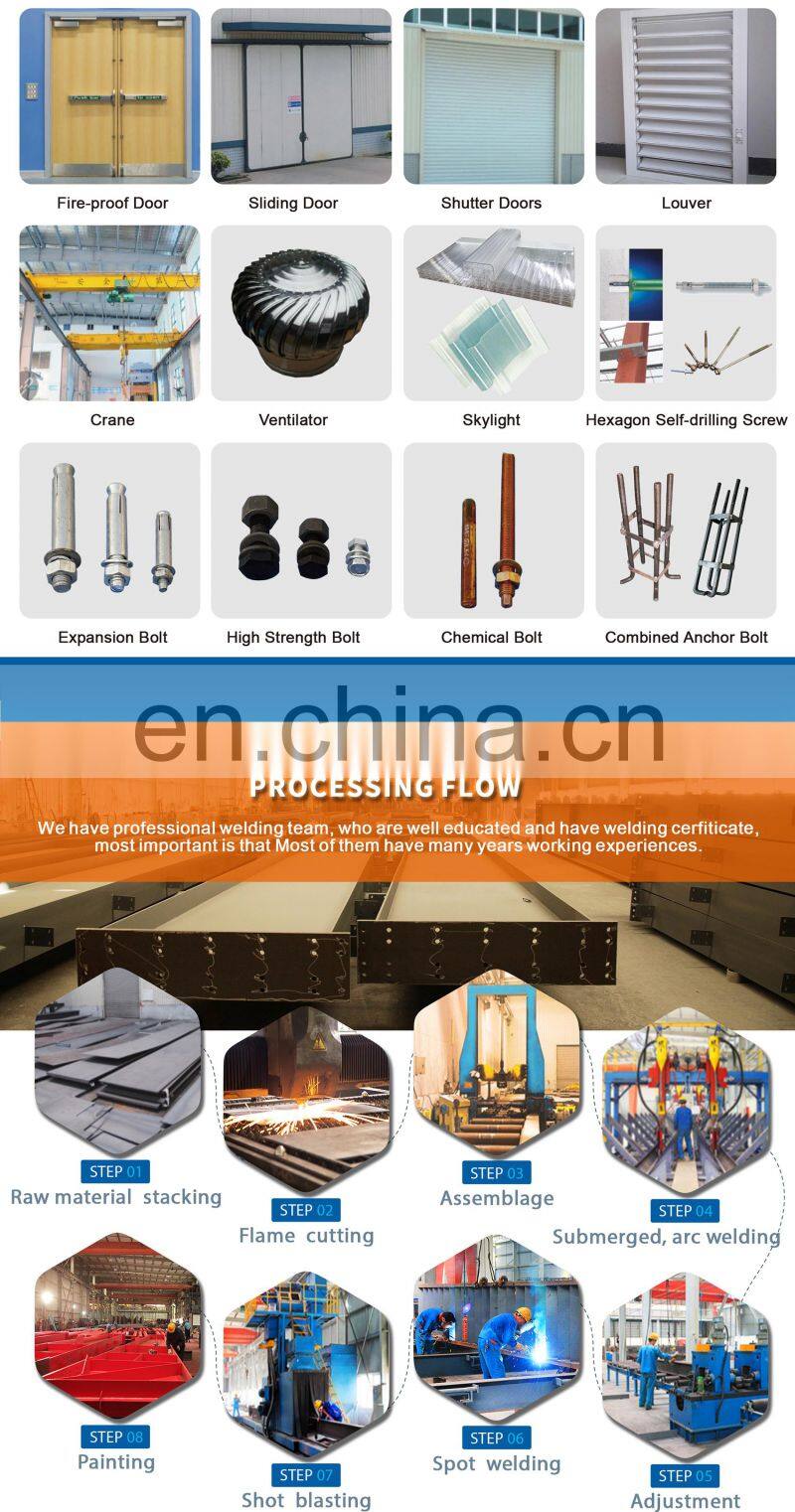

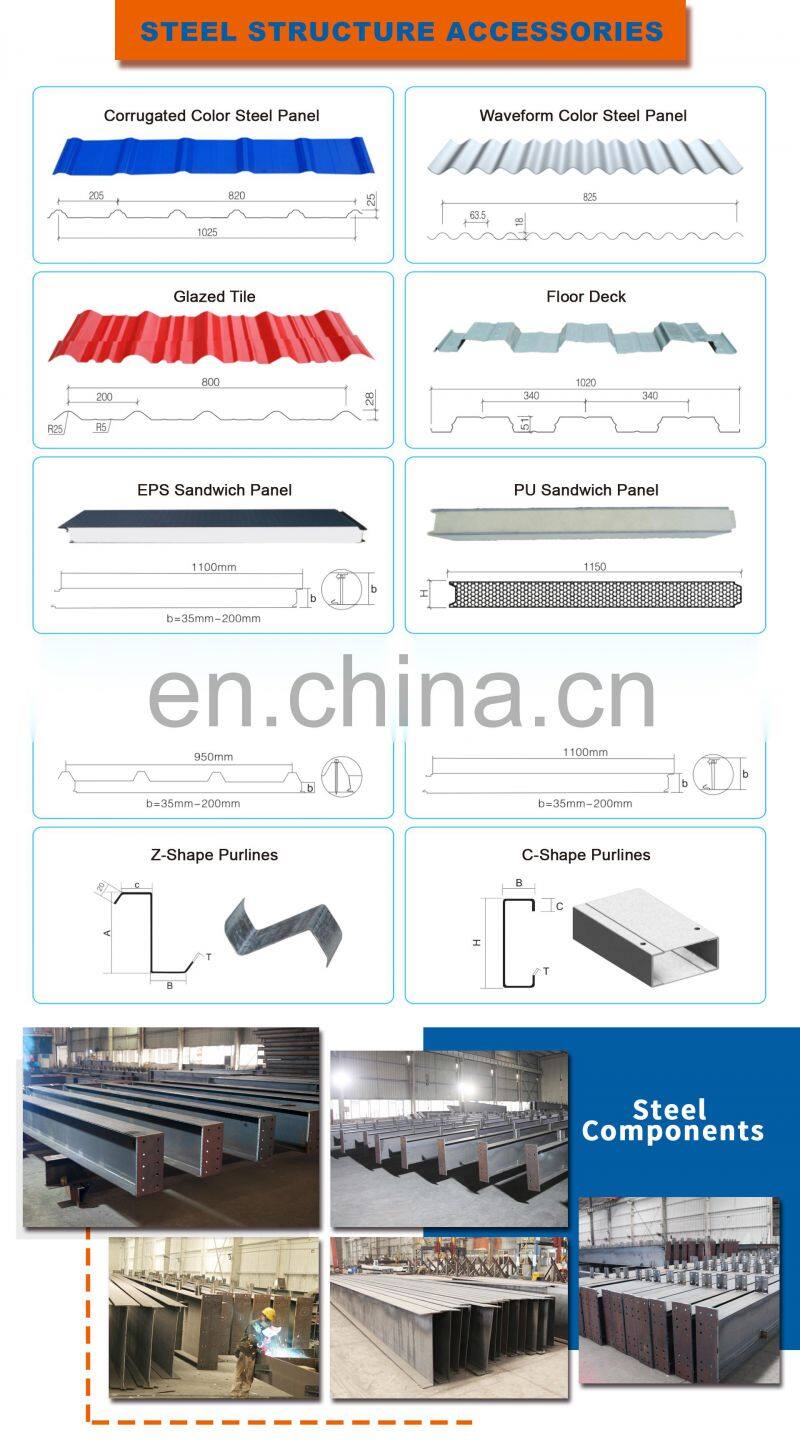

Accessories&Processing flow

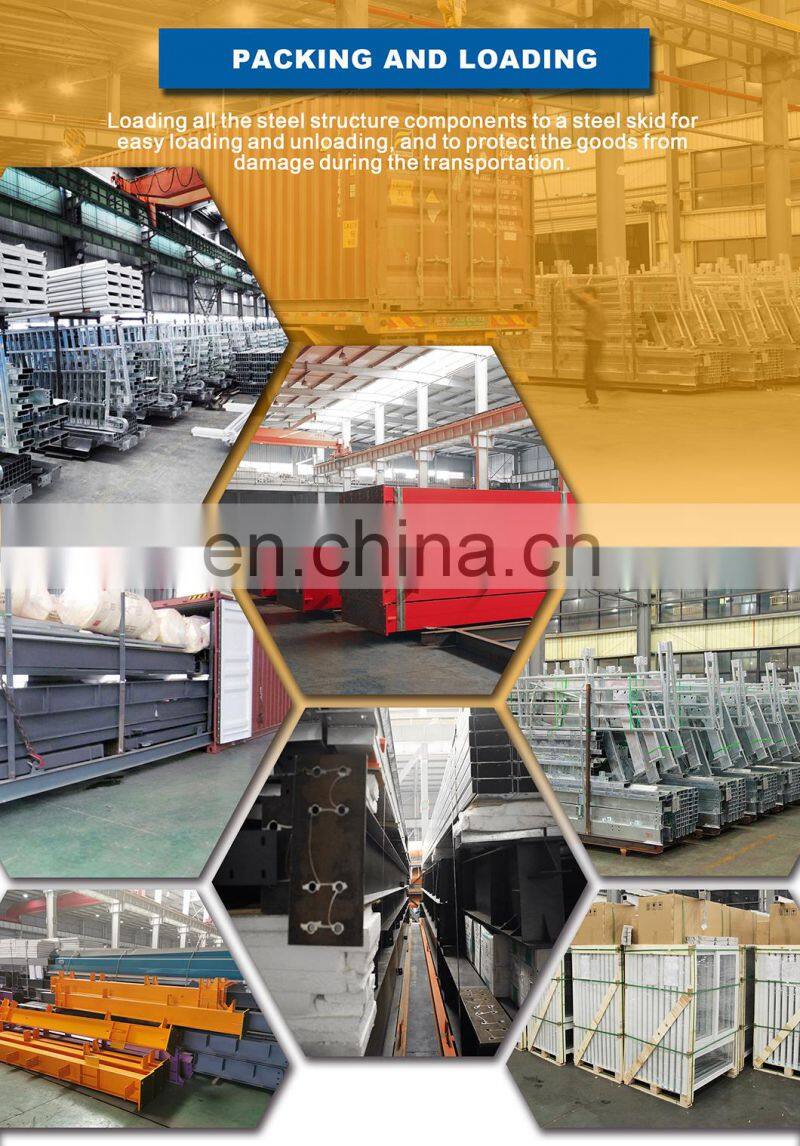

Packaging&Shipping
Other Products
CONTAINER HOUSE
DOUBLE-C STRUCTURE
LIGHT GAUGE STEEL
STEEL STRUCTURE BUILDING

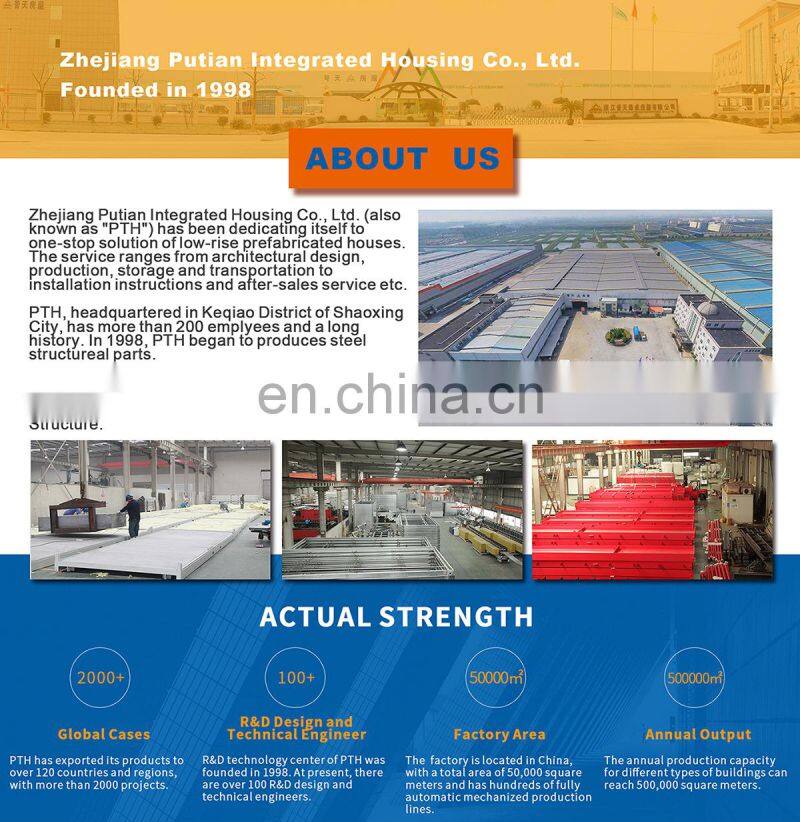

Company Profile
FAQ
Q: Are you a factory or trading company?
A: Zhejiang Putian Integrated Housing Co., Ltd. is a professional prefab house manufactureing company. We have our own factory in Shaoxing, Zhejiang and marketing centre in Hangzhou, Zhejiang. We also have branches in Brazil and Canada.
Q: What's your year supply capacity?
A: Container house 3600 units, steel structure 3600 tons, Prefab-X series products 400 units, other products 2000 tons.
Q:How to install ?
A:We will provide detailed installation instruction and video for you, technicians will be sent to help you if the project is big and required our technicians to be onsite as supervisiors. However, the visa fee, air tickets, accommodation,wages, etc will be provided by buyers.
Q: How long is your delivery time?
A: Generally it is within 15-30 days ,definitely according to the quantity.
Q: How do you guarantee the quality of the products?
A: Strict product quality control, quality makes the future.This is the tenet of our factory. Each product from our factory has strict testing procedures, and must be 100% quality before delivery.
Q: How can I get the quotation of the project ?
A:If you have the drawing ,we can offer you our quotation according to your drawing .
If you have no design, our engineer will design some drawings for you based on your idea to confirm, and then offer you a quotation.
