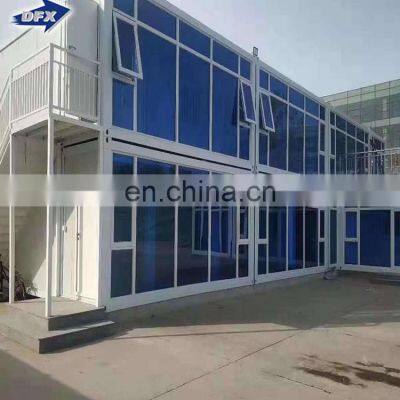

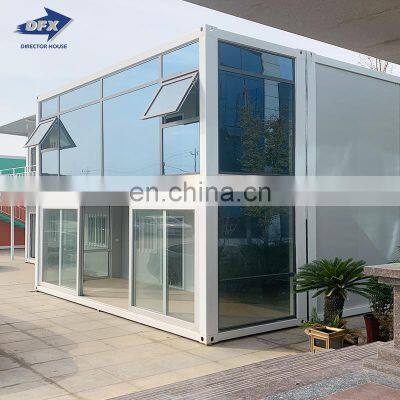

expandable Container Hotel Building flat pack container house

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Flat Pack Prefabricated Living Container House

Product Description & Advantages

1. Light and reliable structure: The light steel structure is strong and firm enough, with good wind resistance, seismic resistance

2. Completed galvanized steel frame, anti-rust and especially for seaside and high humidity area.

3. Easy assemble, time & labor saving. It will be assembled within 2 hours with four workers.

4. Wide applications: Can be used as warehouse, home, villa, shop, hotel, camp, office, etc;

5. Electric wires runs over ceiling. Electrics included: DB, breaker, LED light, sockest and Swith.

6. Total-sealed top & Corner-draining system ensures complete non-water-leaking.

7. Can stack up to 3 floors & joint to be bigger hall.

Specifications:

Specification	20ft: 605524352896mm
Design parameter	Life span: up to 20years
	Floor Live load: 2.0KN/m2
	Roof Live load: 0.5KN/m2
	Wind load: 0.6KN/m2
	Earthquake-resistance: Grade 8, Fire-proof: Grade A
Floor System	Steel structure & accessories: Main floor frame: cold formed steel, thickness 2.5mm, galvanization;
	Floor purlin:C120502.0, galvanized. Q235B steel.
	Floor board: 18mm thickness Cement pressure plate, Fire-proof:grade A.
	Interior Flooring:1.6mm thickness plastic board ,the color alternative.
Roof system	Steel frame & accessories: Main roof frame: cold formed steel, thickness=2.5mm, galvanized.with 4pcs galvanized lifting corners.
	Roof purlin : C85*1.5mm, galvanized. Q235B steel
	Roof panel: 0.45mm thickness Aluminum-zinc color steel sheet, PE finishing coat. Color: white 360° full connection
	Insulation: 100mm thickness glass wool with aluminum foil, Grade A fire-proof, nonflammable.
	Ceiling board: V-831 type, 0.4mm Aluminum-zinc color steel sheet, PE finishing coat. Color: white
Corner pillar	Cold rolled steel: 4pcs pillar with same dimension, thickness=2.5mm, steel grade Q235B.
Corner pillar	Corner pillar and main frame are joined by hexagon socket head bolt, strength: grade 8.8.
Wall system	75mm 0.4/0.4mm rock wool board, density80kg/m3, Fire-proof grade A non-flammable
Door & Window	Insulated light steel door: Entrance door isW840*H2035mm
Door & Window	plastic steel window, double glass 3mm thickness, with mosquito screen and security bar. Standard window: W1150*H1100mm
Electric system	Rated power: 5.0 KW
	Technical parameters: industrial plug, socket voltage 220V- 250V 2pc 32a leakage protector ,1pc air switch .1pc power distribution box.
	Electrical data: main power cable is 6 mm2, AC cable is 4 mm2, socket cable is 2.5 mm2, lighting & switch cable is 1.5 mm2. 1pc AC socket of 3holes 16A , 2pcs socket of 5holes 10A. 1pc single connection switch, 2pcs LED light.

Project reference
