America,Australia,Europe, Africa long-term Cooperation partner
Hangzhou Xiaoya Prefabricated House Co.,Ltd
Founded in 2004, Hangzhou Xiaoya Prefabricated House Co.,Ltd. is the first prefab house manufacturer in Zhejiang
provce which have accumulated year's experience in designing and manufacturing.
Our main products include: container house, prefabricated house, mobile environmental toilet, sentry box, light steel
structure villa, etc. Also, we provide housing customization services.
More than 80%of our products are export globally, such as Australia, South America, Europe, America, South Africa,
North Africa, Asia, Middle East, and other countries and regions.
1. Specifications:
1.CE certification
2.Sandwich panel keep warm
3.Environmental friendly
4.Competitive price
5.Fast construction, time saving and labor saving
6.Stable and earthquake resistance up to 9 grade maintenance
2. Certifications:
So far, Xiaoya have successful declared more than 20 items of product appearance design patents and utility
model patents, which showed our strength of innovation.
3. Application:
Widely used in construction site, temporary office, residential building. Can design as customer’s request,
used as dormitory, office, shop, washing room, kitchen etc.
4. Services:
1.Customisation sizes and design as requirements
2.Reduce cost by integrating &manufacturing &service processes.
3.with reliable quality and efficient service.
4.can offer one-stop service from developing, design, manufacturing to installation.
5.Quality is our culture
Sewage recycling treatment system, flushing the toilet using sewage
Certifications:
♣ Sewage recycling treatment system,flushing the toilet using sewage;
♣ Environment-friendly mobile toilets;
external and internal show:
Type |
Length |
Width |
Height (optional) |
2 people |
2420mm |
1300mm |
2000mm |
Type |
Length |
Width |
Height (optional) |
3 people |
3570mm |
1300mm |
2000mm |
Main material:
Floor
Steel frame |
- made from cold rolled, welded steel profiles, 4 mm thick |
- 4 corner casts, welded | |
|
- 2 fork lift pockets (except 30’) - distance 1200mm (internal clearance of fork lift pockets: 240×80 mm) | |
- steel cross members, thickness=2mm | |
Insulation |
- 50 mm thick EPS, PU or Rock Wool (optional) |
Subfloor |
- 0.5mm thick, galvanized steel sheet |
Floor |
- 18mm plywood board |
|
- 1.8mm PVC floor - flammability class B1 - hardly combustible - smoke density class Q1 - low smoke emission - wear resistance factor: T level |
Roof
Steel frame |
- made from cold rolled, welded steel profiles, 3mm thick |
- 4 corner casts, welded | |
- steel cross members, thickness=2mm | |
Roof cover |
- 0.5mm thick, galvanized steel sheet - 360 degree seaming at joint of roof panels |
Insulation |
- 50 mm thick EPS, PU or Rock Wool (optional) |
Ceiling |
- 10 mm chipboard (V 20), laminated on both sides, white - the chipboard complies with the emission value E1 |
CEE connector |
- sunken in frame on short end side |
Pipe
Water Pipe |
- Input Pipe |
PPR |
- Waste Pipe |
PPR |
Door
Door |
-Steel Door |
- Aluminum Door | |
- Aluminum Alloy Door | |
- Sandwich panel Door |
Window
Window |
-Sliding Window |
- Tilt & Turn Window |
Our Biggest Advantage:

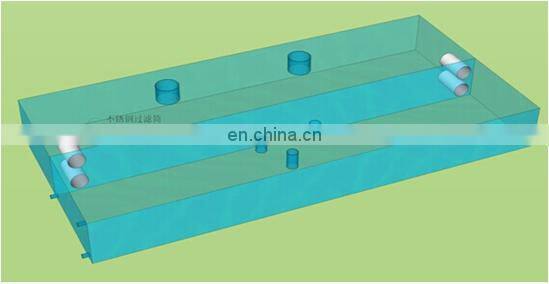

Sewage recycling treatment system,flushing the toilet using sewage.
the use of microbial flora metabolism adsorption, digestion, decomposition of organic pollutants in wastewater, to make it into a stable harmless substances, to purify water, deodorant purposes.Sewage tank in two separated into two parts,
storage of solid waste, part of the storage of liquid waste. Solid waste by microbial treatment, the water through the filter
into the liquid waste tank portion, and then through the pump into the toilet cisterns , use water flushing toilet again.

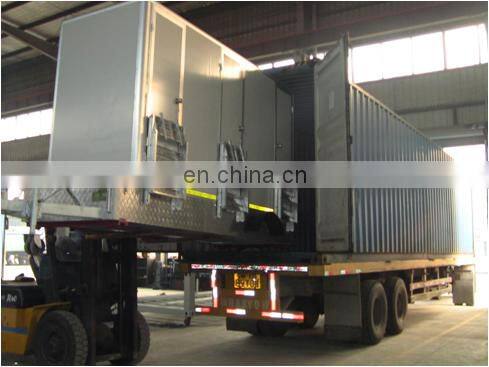

OurPackaging&Transportation:
|
-one 40ft HC load 2 sets Mobile Environmental Toilet with dimension 3570mm*1300mm*2000mm |
|
- one 40ft HC load 3 sets Mobile Environmental Toilet with dimension 2420mm*1300mm*2000mm
|
5. Main material:
6. Structure Configuration:
Name |
Type |
Material |
Size |
Roof Structure |
Galvanizing Steel Bending
|
Galvanizing Steel |
Customization |
|
Door
|
1.Xiaoya Patent door 2.Aluminum Alloy Door 3.Sandwich panel Door 4.Security Door |
1.EPS 2.Rock Wool 3.PU
|
Ordinary Size: 900mm*2000mm 845mm*2000mm Customization |
|
Window
|
1.Sliding Window 2.Tilt & Turn Window 3.Xiaoya Patent window |
1.PVC 2.Aluminum Alloy
|
Ordinary Size: 945mm*1200 mm 800mm*1200 mm Customization |
|
Electrical Installation
|
Circuit Hidden installation
|
1. CE Standard 2.Australia Standard |
1.Safe and beautiful 2.Multiple protection circuit
|
Water Pipe |
pre-buried pipeline |
1.PPR 2.PVC |
1.Prefabricated beneath the floor 2.Convenient tective avoid weathering
|
Floor |
1.Surface Floor 2.Basic Floor |
1.PVC 2.Plywood |
Normal Thick: 15mm or 18mm Fireproof and waterproof
|
7. Standard Layout:
8. Effect diagram:
