2000m deep water borehole oil well inspection camera
Brief introduction of PIW-2000 borehole drilling camera:
WIth Manual/Automatic Winch and PTZ rotary camera, PIW-2000 is specializes in 100-
2000m well/borehole inspection.
Specifications of PIW-2000 borehole drilling camera:
Main Control Box |
Aluminum Alloy Main Machine, 220V Input |
Winch |
Electric Winch, Automatic Cable |
Monitor |
7" (12" Optional) High-brightness LED Display (Image Zoom Function) |
Recording System |
SD Card Recording |
Rotated Probe |
Pan 360˚ rotation, tilt 180˚ overturned, dual light source, the front light can adjust the brightness, camera focal length, electronic control focus dimming |
Panoramic Probe (optional) |
HD Low Illumination 2.8mm Wide Angle Camera |
Depth Counter |
The depth can accurate to 0.05m |
Logging Cable |
6-core Bearing High Temperature Resistance Cable, Optional Length |
Centralizer |
High Elasticity Stainless Steel Centralizer |
Toolbox |
Connecting Cables And Accessories |

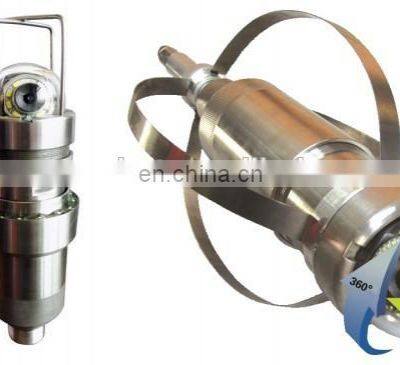

Rotating Camera
Camera Size: Φ70mm (75mm optional)
Camera Material: 304 stainless steel
Camera Lens Material: explosion-proof optical glass
Camera Pixels: CCD camera, 720 TVL
Lens Angle: Pan 360°, Tilt 180°
Camera Light: Front 8 high-brightness patch beads, rear 16 LED light source light beads
Brightness Adjustment: can adjust the brightness of the front light source via the button of the control box, 5 dimming
Probe Pressure: 25MPA
Focal Length Adjustment: Adjust the focal length through the main control panel button
Panoramic Probe (optional)
Camera Size: Φ75/85mm
Camera: Stainless steel, split-type easy to remove
Camera Lens: High Temperature Resistance Lens
Camera Pixels: CCD camera, 700 TVL
Lens Angle: 130˚ Wide Angle
Camera Lights: equipped with 9 high-brightness LED cold light source
Probe Pressure: 25MPA, 2500 meters max.
Probe Temperature: -20˚ -55˚

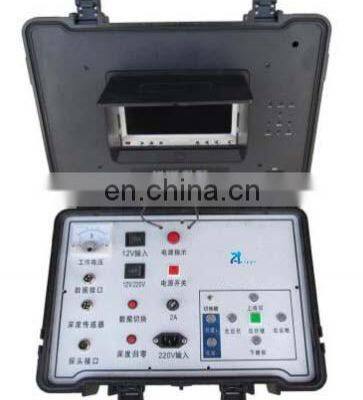

Control Box
ABS Main Control Box, equipped with a variety of accessories, integrated control
Voltage Input: 220V
Depth Interface: connect the depth sensor
Probe Interface: connect the probe, transmit video and power
Data Interface: can write the well number and calibrate depth automatically.
Video System: 8G SD card recording system, support 32G max.
Depth Return to Zero: please return to zero before well logging to count accurately.
Display: 7" high light LED display, with a sunshade, outdoor visual.
Extended Port: video capture extension interface(optional)

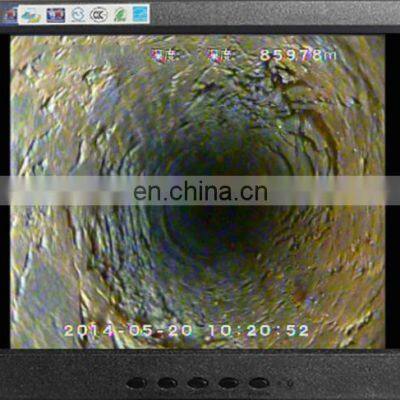

Monitor
7" LCD monitor
Aspect Ratio: 4: 3
Contrast Ratio: 400: 1
Brightness: 500cd / ㎡
Resolution: 1024*768
Power Supply: DC 12V
Color System: PAL / NTSC / SECAM
Winch(automatic cable)
Electric Winch: Control the cable retract function by adjusting the governor switch
Motor: Permanent magnet DC motor, power off self-locking
Downhole Pulley: Downhole pulley has the function of depth counting,but need the data line to connect the main control box to use
Cable
Cable Material: light and heat resistant material
Bearing Pull: 480KG
Outer Diameter: 8.2mm
Temperature: 105℃
Safe Packing.
Wooden carton with foam.
Fast delievery.
DHL, FedEx and UPS.
We also have many other models borewell cameras with 50m/300m/700m/800m/1000m/2000m depth.
1.Professional technical support pre-sale, sale and after-sale.
2.Your problems can get feedback in 8 hours and be solved in 24 hours.
3.Machine can be customized as per your requirement.
4.One year quality warranty.
5.Training: operation manual and DVD operation video, overseas installation is also available.
6.Spare parts are available in our factory at cost price for former customers.
