All terrian stair climbing robot rubber track chassis for sale
Key Words: rubber track system robot, crawler chassis, crawler platform, robot chassis

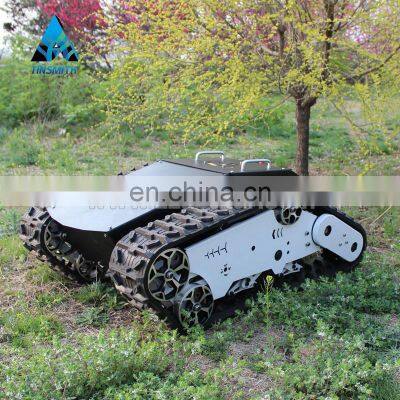

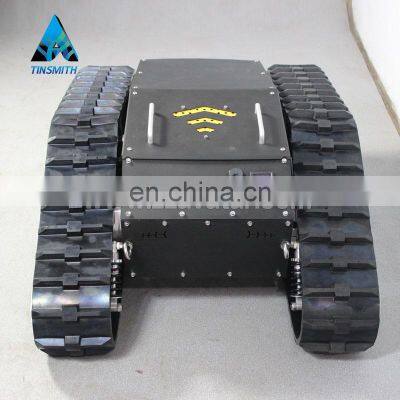

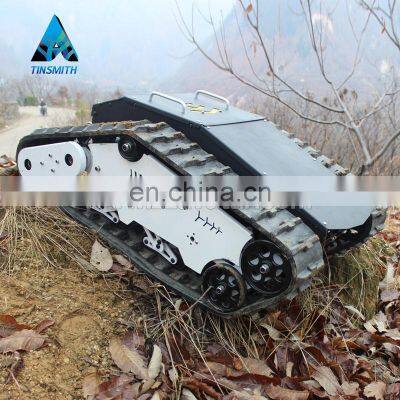

AVT-10T rubber track chassis for sale
AVT-10T tank tracks has Christie Suspension system and Matilda 4-wheel balance system, which has better shock absorption and terrain capability. Carrying 100kg load, it can reach any rough area, even across 45°slope.
Features of AVT-10T rubber track chassis for sale
1. 140mm ground clearance, excellent trafficability.
2. 75% ground touch length, excellent crossing ability.
3. Superior grip, perfect obstacle-crossing performance.
Item |
Data |
Body Material |
304 Stainless Steel Skin, Galvanized Square Tube |
Track Material |
Quality Rubber Embedded with Kovlar Fiber |
Self Weight |
85KG |
Motor |
Kane Motor |
110BL03 |
Aluminum |
Track Width |
150mm |
Drive Wheel Diameter |
148mm |
Wheel Material |
Aluminium |
Reduction Ratio |
1:7.5 |
Surface Treatment |
Sprayed /Partially Painted |
Dimension |
1020*700*405mm |
Internal Size(Excluding Battery) |
320*240*600mm |
Chassis Weight |
95KG |
Track Circumference |
2.3m |
Motor Rated Torque |
2.5N |
Rated Torque |
60NM |
Ground Contact Length |
74cm |
Reducer |
NMRV50 |
Running Speed |
0-6KM/H |
1.Exploration of inspection
2.The rescue vehicle
3. Scientific research and education
4. Fire control security guard
5. Special photography
6. Special transport
AVT-300 mini robot platform
AVT-600 robot undercarriage
1.Professional technical support pre-sale, sale and after-sale.
2.Your problems can get feedback in 8 hours and be solved in 24 hours.
3.Machine can be customized as per your requirement.
4.One year quality warranty.
5.Training: operation manual and DVD operation video, overseas installation is also available.
6.Spare parts are available in our factory at cost price for former customers.
