Product Description

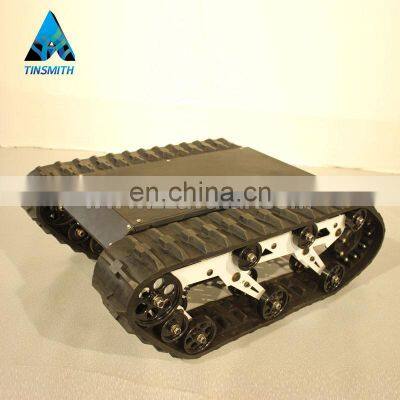

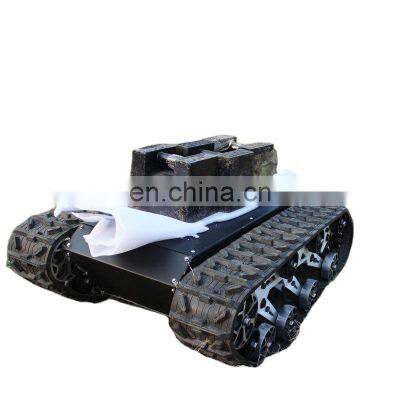

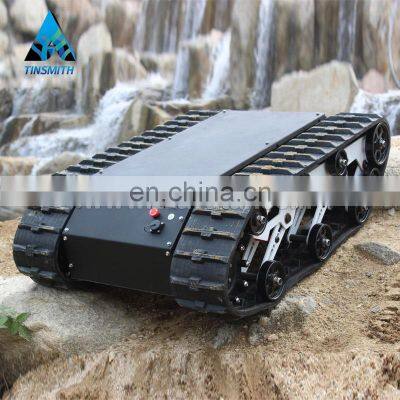

Special Transportation Tank Robot Chassis For Outdoor Crossing
Introduction:
AVT-9T is one general tracked robot chassis, which consists of Christie suspension system, high torque brushless DC motors, reasonable structure and durable tracks. It features strong terrain capability, low weight center, smooth running, high transmission efficiency. It’s specially suitable to carry camera equipment and other equipment which request good stationarity, like robots serve in exploration, rescue, EOD and fire fighting.
Application:
1. Exploration of inspection
2. The rescue vehicle
3. Scientific research and education
4. Fire control security guard
5. Special photography
6. Special transport
Features:
1. Independent suspension
2. Huge development space
3. Powerful motor and long work time
Specification:
|
Item |
Data |
Item |
Data |
|
Design Size (mm) |
930 * 680 * 325mm |
Internal Size |
650 * 350 * 240 |
|
Drive Wheel Diameter |
158mm |
Running Speed |
0 ~ 10KM / H |
|
Body Material |
Stainless Steel 304 / Alloy Steel / Galvanized Pipe / Aluminum |
Degree of Protection |
Body IP66, Cover IP54 |
|
Shock Damping |
Independent * 6 Shock Absorption |
Surface Treatment |
Black Spray (Matte) |
|
Rated Power |
650W * 2 |
Design Load |
100KG |
|
Motor Selection |
48V DC Brushless Motor |
Rated Torque |
16NM |
|
Reduction Ratio |
1:15 |
Track Width |
150mm |
|
Maximum Obstacle |
220mm |
Maximum Climbing |
40° (Can Climb Stairs) |
|
The Biggest Leap |
480mm |
Weight |
80KG |
Main Technical Parameter of Electrical Part
|
Remote Control Distance |
Open 300m |
Remote Control Method |
Mixed Control |
|
Remote Control Project |
Forward, Back, Left and Right Rotation |
Transmission Method |
Infinitely Variable Speed |
|
Power Supply |
48V 30ah Rechargeable Detachable, Independent Warehouse |
Equipment Rack |
As your demand |
|
Switch |
Metal Button Switch |
Camera |
Front and rear holes reserved |
