Double-link balance suspension robot chassis AVT-W15D wheeled robot chassis outdoor delivery robot with super balance ability
1. Product Introduction:
AVT-W15D wheeled robot chassis is the first to use four-wheel drive, double-link balance suspension, which can always maintain the relative balance of the car body on continuous undulating roads. It is equipped with two 6kw DC brushless motors and the maximum operating speed can reach more than 20kw. It is suitable for scenes where levelness has certain requirements or working conditions are continuous undulating roads, effectively preventing the blind spots of radar or camera vision caused by car body undulations, and assisting the rapid construction of medium-sized mobile robots.
2. Product Application:
1. Exploration of inspection
2. Scientific research and education
3. Special photography
4. Special transport
3. Product Specification:
|
Item |
Data |
Item |
Data |
|
Dimensions |
1530*1480*830MM |
Speed |
15KW/H |
|
Self weight |
480kg |
Design load |
<250KG |
|
Body material |
304SS/Alloy plate |
Rated torque |
64N.M |
|
Gear Ratio |
1:20 |
Ground clearance |
234mm |
|
Over-Obstacle capacity |
250mm |
Climbing ability |
30° |
|
Surface Treatment |
Powder coat |
Protection level |
IP64 |
|
Steering mode |
Differential Steering |
Motor |
96-6KW DC brushless |

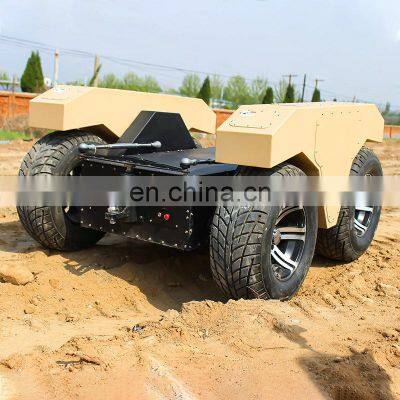

5. Product Picture show:
Packing: Wooden case or as customer requirement.
Delivery way: By express, by air or by ship.
Zhengzhou Defy Mechanical & Electrical Equipment Co,. Ltd.
Our company is a leading robot manufacturer in China, offering robots and mobile solutions for robotic products. With great development, we have established one-stop solutions for global clients, with our own R&D department, Q&C department, production department, sales department, and after-sales department.
1.Does your machine have great quality and favorable price?
Sure,we offer good quality and cheap price products.
2.How is your service?
We offer professional pre-sales,in-sales and after-sales service for customers.
Any of your tiny need will be satisfied in 24 hours.
3.How about the MOQ?
1 set.
4.What's the warranty of machine?
One year warranty for main machine.
5.When the machine can be shipped?
Within 3-5 working days after receiving full payment.
