Product Description

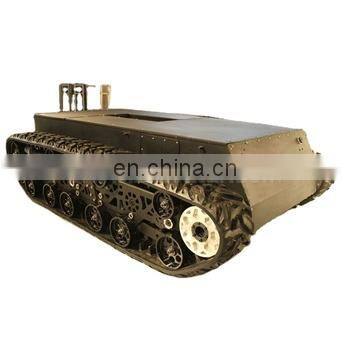

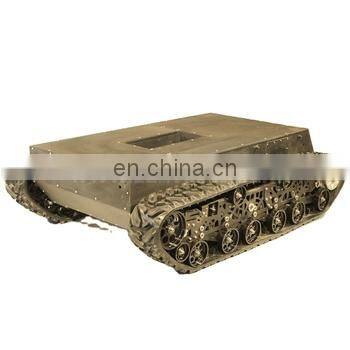

RTK autonomous navigation mobile platform robot chassis
AVT-18T heavy-duty robot chassis is the first heavy duty model with heavy duty wear-resistant track and load leap. The body adopts Christie independent suspension. It has 72% ground ratio, more stable. Hydraulic shock absorption is more comfortable, which can protect vehicle better. It is widely used to fire, security, transportation, exploration, etc.
Application:
1. Exploration of inspection
2. The rescue vehicle
3. Scientific research and education
4. Fire control security guard
5. Special photography
6. Special transport
Specification:
Item |
Data |
Item |
Data |
Dimension |
1850*1300*600mm |
Inner Space |
650*600*375mm |
Chassis Self Weight |
515kg |
Rated Speed |
0-3.5km/h |
Ground Clearance |
190mm |
Waterproof |
IP65 |
Max.Spanning |
800mm |
Max. Loading Capacity |
500kg |
Max. Climbing Ability |
30o |
Vertical Leaping |
320mm |
Crawler Material |
Quality Rubber Embedded with Kovlar Fiber |
Crawler Width |
180mm |
Suspension System |
Christie * 10 Shock Absorption |
Main Body Material |
304 Stainless Steel / Alloy Steel / Aluminum / Polymer Materials |
Surface Treatment |
Black Spray (Matte) |
Drive Wheel Diameter |
190mm |
Rated Torque |
93.8N·M |
Transmission Ratio |
28 |
Main Technical Parameter of Electrical Part
Voltage |
DC48V |
Electric Motor |
DC Brushless Motor |
Max. Power |
3000w*2 |
Standby Power Consumption |
≤50w |
Brake Type (Optional) |
Electric Brake |
Braking Voltage |
DC48V |
Encoder (Optional) |
1000-2500TVL |
Driver Model |
6050 |
Control Distance |
Open Space300mm |
Number of Remote Control Channels |
9T(Used 3T) |
1.Warranty:one year for main machine, excluding easily wear parts. During this period, in case of damage or breakdown, we will repair to replace spare part freely, while the buyer should bear overseas freight.
2. Spare Parts: most of our spare parts are compatible with international standard. While, we offer spare parts all year round at cost price for our former clients.
3. Operation and Maintenance: we will offer you detailed operation manual, ensuring you can use it perfectly.
4. Online Service: your question will be answer within 24 hours during working days, 48 hours during holiday.
