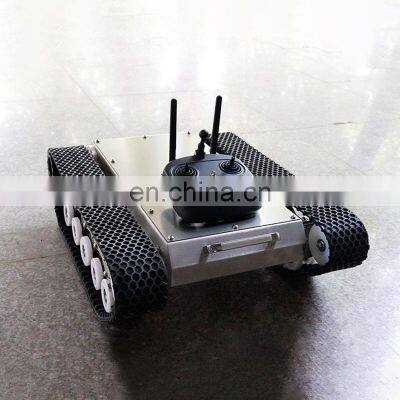

Silicone Rubber Track Tins-6 Solar Panels Cleaning Robot Inspection Robot Food Delivery Robot Can Walk on Wet Glass
Silicone rubber track Tins-6 solar panels cleaning robot inspection robot food delivery robot can walk on wet glass
TinS-6 Robot Chassis Application:
It is suitable for solar panels cleaning robot, inspection robot, delivery robot, ect.
Advantages:
1. Whole machine 201 stainless steel metal frame, strong anti-corrosion performance, acid and alkali resistance.
2. Protection class: IP65.
3. Communication protocol: RS232, CAN.
4. Precise control: Servo motor drive + encoder, closed-loop control system. Precise control of angle, speed and travel. The movement trajectory is arbitrary, it can rotate in place or move spirally.
5. Driver: overvoltage, overcurrent, undervoltage, overheating, short circuit protection.
6. Control mode: joystick control, standard aircraft model remote control, upper computer command control.
7. Silicone rubber track: good ground and glass adsorption, can walk on wet glass.
8. Guide wheel: Can adjust tensioning of the track.
9. Suspension system: multi-stage Christie shock absorption structure
10. Support customization and secondary development.
Specification:
|
Model |
TinS-6 |
|
Dimension |
593*460*173mm |
|
Self Weight |
18kg |
|
Mac playload |
120kg |
|
Voltage |
24V |
|
Motor Power |
200W*2 |
|
Reduction ratio |
1:10 |
|
Running Speed |
0-4km/h |
|
Rated torque |
7n-m |
|
Surface Treatment |
Stainless steel |
|
Track Width |
80mm |
|
Maximum Climbing |
30° |
|
Maximum Obstacle |
100mm |
Control Box Specification
|
Item |
Parameter |
Item |
Parameter |
|
Dimension |
358*284*168mm |
Weight |
6.8kg |
|
Control cable length |
20m |
Power cord length |
1.5m |
Product Pictures:

Zhengzhou Defy Mechanical & Electrical Equipment Co,. Ltd.
Our company is a leading robot manufacturer in China, offering robots and mobile solutions for robotic products. With great development, we have established one-stop solutions for global clients, with our own R&D department, Q&C department, production department, sales department, and after-sales department.

Q1: What can an air duct cleaning robot do?
At the present stage, the novel Coronavirus outbreak has become quite serious globally, and all countries are making concerted efforts for epidemic prevention and control. Clean and disinfect the air duct of the central air conditioner to ensure the healthy and clean indoor air and prevent cross.
Q2: What is the workflow of a pipe cleaning robot?
Demolition of tuyere -> professional unit to determine air dust situation -> add inspection robot -> look inside the duct, determine the cleaning solution (CD) can be made up -> in needs cleaning duct two placed two airbags and cut a small opening on one side of the circular hole.
Q3: What is a duct cleaning robot?
Central air-conditioning duct cleaning robot, flexible forward back, left and right sides are rotating, flexible steering, single direction walking distance is not less than 20 meters, the fastest speed should be not less than 10 m/min, and adjustable speed scope, can over 4 cm high, the slope.
