Product Description

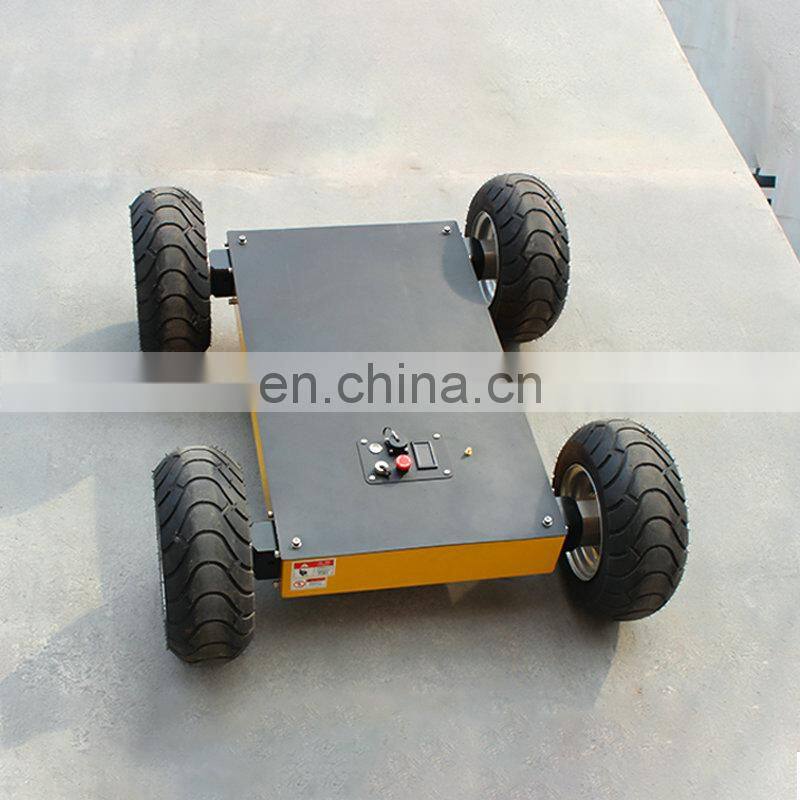

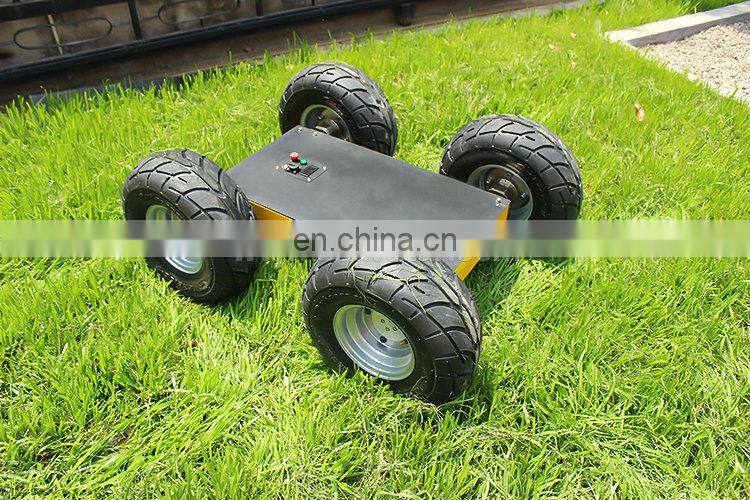

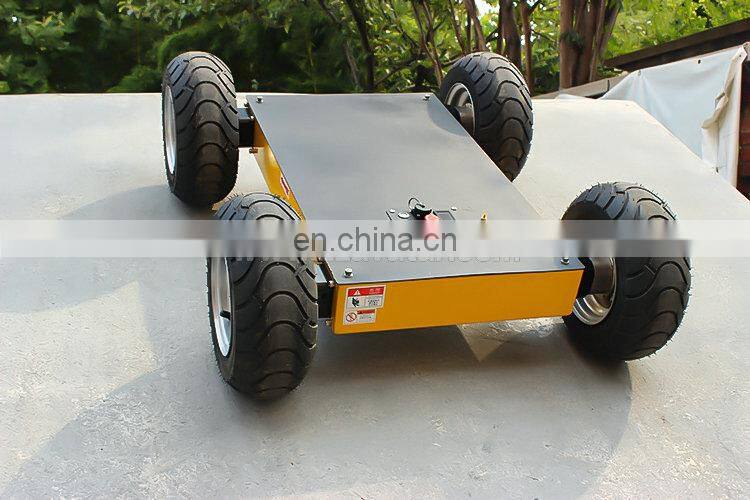

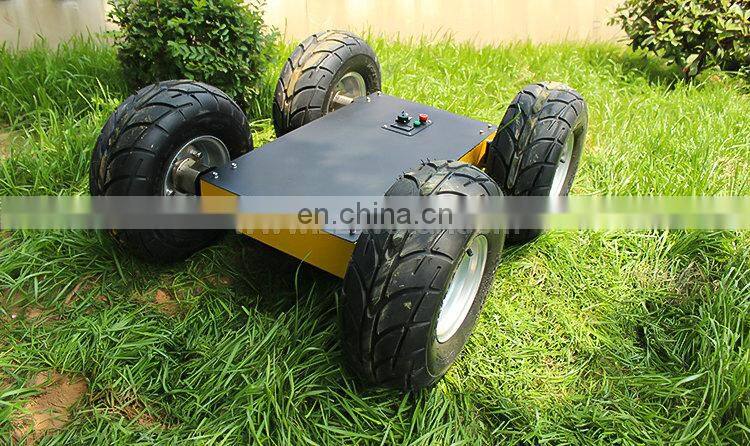

4wd delivery robot chassis 60kg loading robot platform
Introduction:
AVT-W9, complete vehicle will set the battery, BMS system, power supply module (24 V, 12 V, 5 V output), dc brushless motor, high-precision encoder, driver and brake components in the chassis power assembly, which is equipped for universal type wheel robot chassis. Compact layout can provide a wide development space and imagination space for users, help to build unique robot products.
Application:
1. Exploration of inspection
2. The rescue vehicle
3. Scientific research and education
4. Fire control security guard
5. Special photography
6. Special transport
Features:
1. Low height from the ground, stable transportation.
2. 16km/hour high speed, excellent transportation speed.
Specification:
|
Item |
Data |
Item |
Data |
|
Body Material |
Alloy steel plate/Aluminum alloy |
Dimension |
905*696*310mm |
|
Tire Diameter |
310mm |
Platform Dimension |
786*426mm |
|
Self Weight |
56KG |
Max. Load |
50KG |
|
Motor |
48V DC Brushless Motor |
Terrain Clearance |
110mm |
|
Protection Grade |
IP64 |
Wheel Base |
595mm |
|
Steering Mode |
Differential steering |
Rated Torque |
40NM |
|
Ditch Passing Ability |
250mm |
Over-obstacle capacity |
120mm |
|
transmission ratio |
24:10 |
Climbing Ability |
30 Degree |
|
Surface Treatment |
Yellow coating |
Running Speed |
16KM/H |
1.Warranty:one year for main machine, excluding easily wear parts. During this period, in case of damage or breakdown, we will repair to replace spare part freely, while the buyer should bear overseas freight.
2. Spare Parts: most of our spare parts are compatible with international standard. While, we offer spare parts all year round at cost price for our former clients.
3. Operation and Maintenance: we will offer you detailed operation manual, ensuring you can use it perfectly.
4. Online Service: your question will be answer within 24 hours during working days, 48 hours during holiday.
