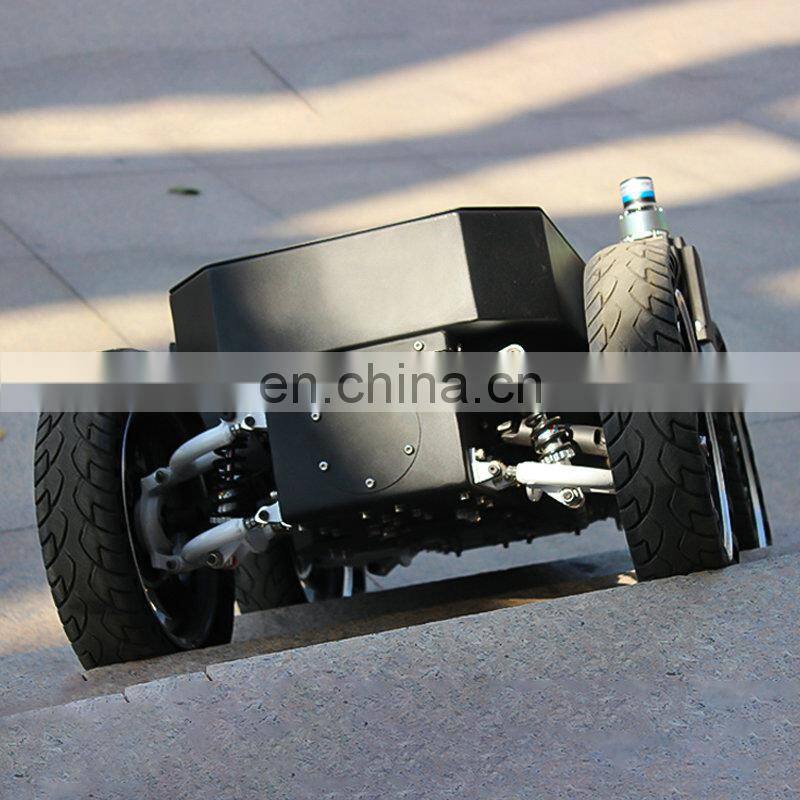

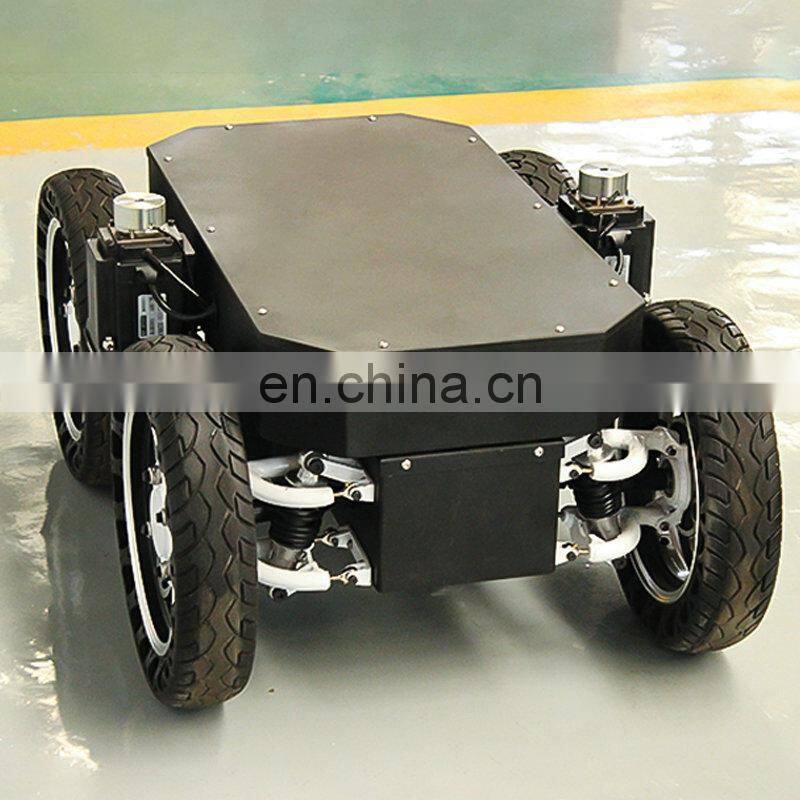

Stable Transportation Robot Tank Chassis With Four Rubber Wheels

FOB Price

Negotiable

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Description

Introduction:

1. AVT-W9D wheeled robot chassis has a variety of customizable configurations, can be competent for various working conditions.

2. It’s equipped with 4 sets of shock absorption and independent suspension structure, the stability and load are greatly improved.

3. It uses differential steering method, the steering is very easy.

4. The explosion-proof tires reduces the body weight, it’s particularly suitable for outdoor operations.

Application:

1. Exploration of inspection

2. Scientific research and education

3. Special photography

4. Special transport

Mechanical Parameters:

Item	Data	Item	Data
Dimensions	920650503mm	Platform size	764*405mm
Self weight	120kg	Running speed	0-7.2km/h
Tyre type	Non-inflatable explosion-proof solid rubber tire	Chassis height	156mm
Body Material	Carbon steel/alloy steel plate/aluminum	Protection level	IP53
Vibration reduction	Four-wheel independent suspension shock absorption	Surface treatment	Spray paint/plastic spray
Motor	48v1000w*2 DC brushless	Design load	100kg
Reduction ratio	1:22.325	Maximum climbing	30°
Maximum obstacle	100mm	Turning radius	Pivot steering
