Product Description

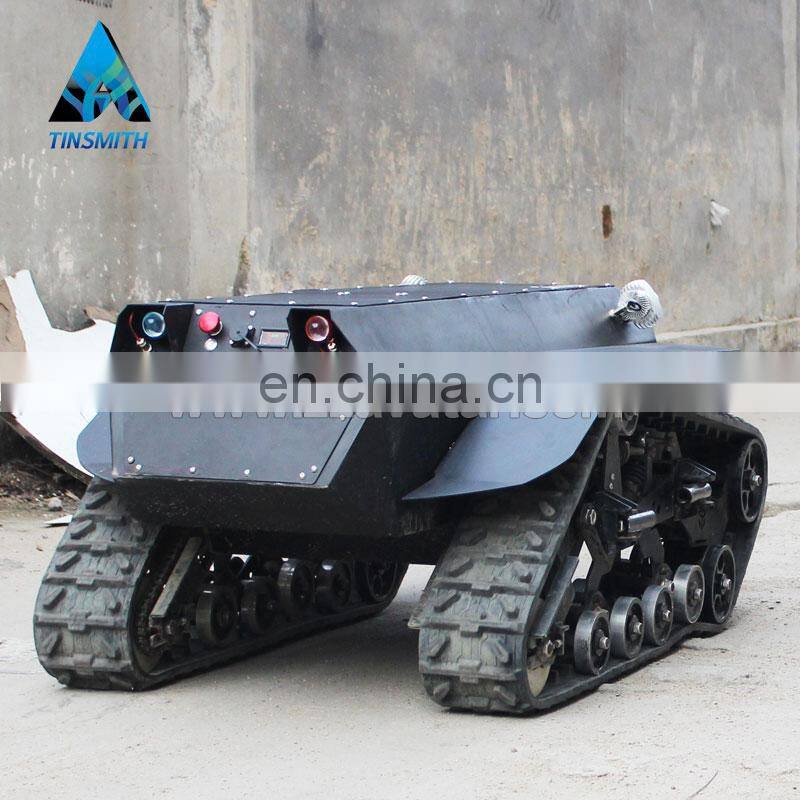

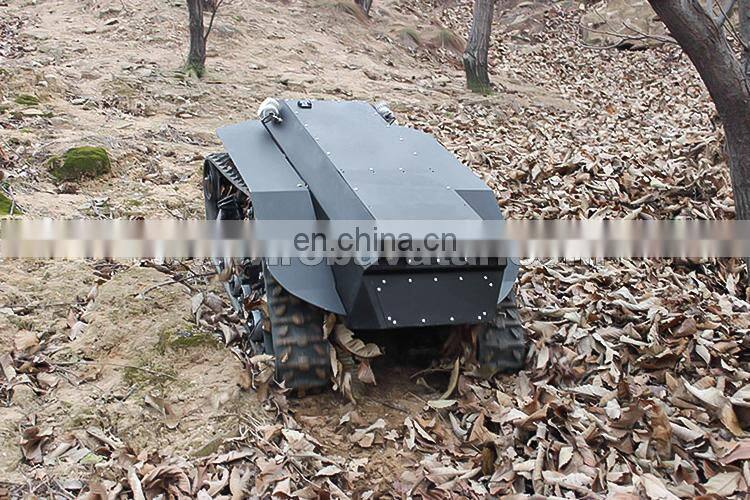

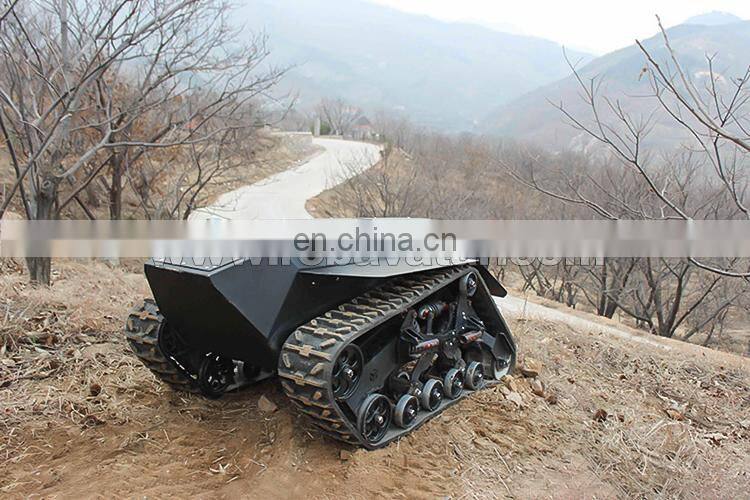

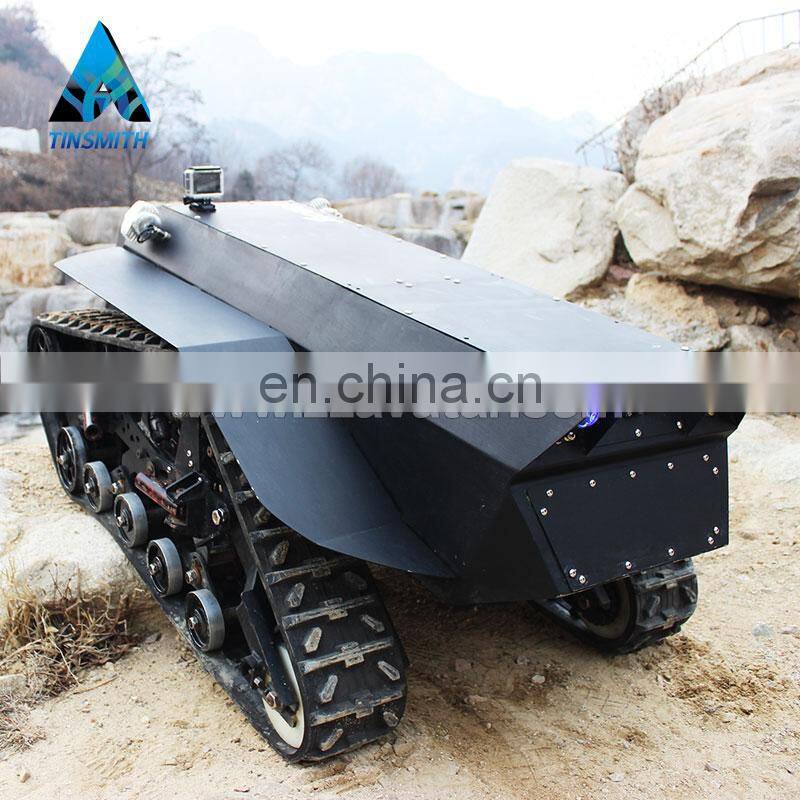

robot tank chassis security robot chassis patrol robot
Introduction:

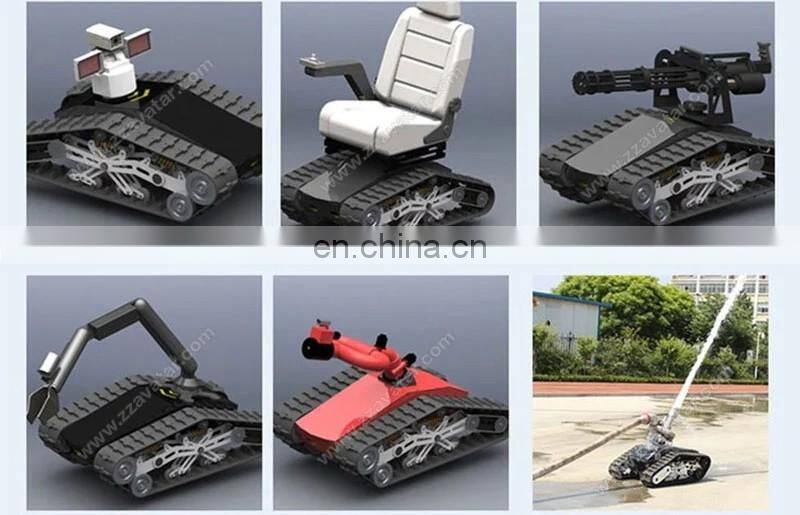

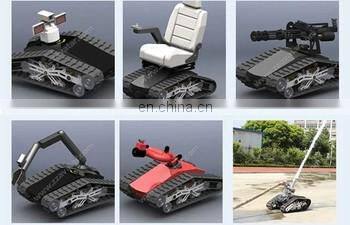

As a multi-functional platform, TinS-13 can be equipped with a variety of equipment, such as camera, water gun, etc., which is widely used in patrol inspection, collaborative transportation, municipal administration, fire protection and other industries.
Features:
1. Standard frame body design, light weight and high strength. The profiled steel and sheet metal skin structure ensures the rigidity and strength of the machine and the airtightness of the machine body.
2. The expansion platform on the machine adopts T-slot and nut sliders, which can carry a variety of equipment.
3. Electronic stepless speed change, large axle torque and high speed.
4. Externally expand the power output and can also be used as a mobile power station.
5. Front high-power LED lights and back turn lights, convenient for night driving and operation.
6. Matilda suspension system can buffer the impact of steps, fit the undulating terrain, has an excellent low-speed shock absorption effect. The two wheels share the absorbing spring, with less wearing parts and high reliability.
7. Speed closed-loop and displacement closed-loop control can realize precise autonomous navigation.
8. Power conversion module with multiple protections for overvoltage, overcurrent, and undervoltage.
9. 3 control modes: Handheld remote controller mode (standard), Visual control box mode (optional), Network control mode (optional).
Specification:
Item |
Data |
Item |
Data |
Dimension |
1300*850*540mm |
Speed |
2.5-12km/h (<60km/h high speed can be customized) |
Self Weight |
120kg |
Designed Load |
100-300kg |
Waterproof |
IP65 |
Rated Torque |
100-500 NM |
Track Width |
130mm |
Reducer Efficiency |
65-85% |
Gear Ratio |
1:10-1:40 |
Suspension System |
Matilda |
Motor |
(0.75-1.5KW)*2 |
Climbing Ability |

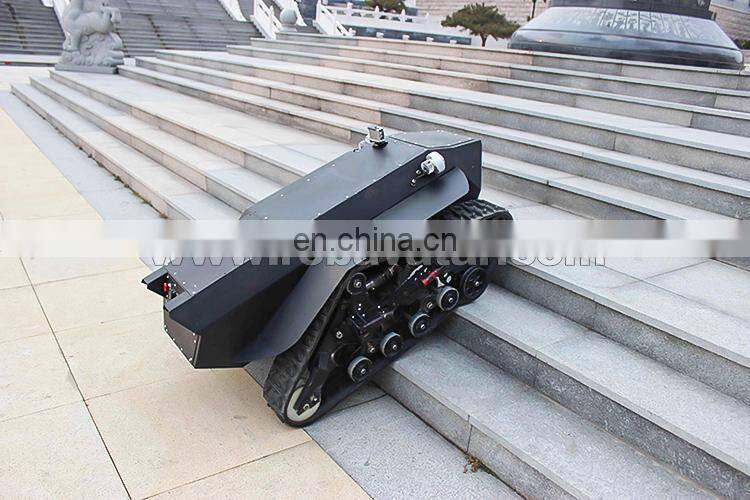

≤30°(can climb stairs) |
Motor Rated Speed |
1500r/min |
Maximum Span |
570mm |
Remote Control Distance |
Open area 800m-3000m |
Over-Obstacle Capacity |
130mm |
1.Warranty:one year for main machine, excluding easily wear parts. During this period, in case of damage or breakdown, we will repair to replace spare part freely, while the buyer should bear overseas freight.
2. Spare Parts: most of our spare parts are compatible with international standard. While, we offer spare parts all year round at cost price for our former clients.
3. Operation and Maintenance: we will offer you detailed operation manual, ensuring you can use it perfectly.
4. Online Service: your question will be answer within 24 hours during working days, 48 hours during holiday.
