High quality AVT-6T small rubber crawler robot chassis commercial robot inspection robot with excellent stable working
1. Product Introduction:
AVT-6T is especially good for small reconnaissance robot with excellent Off-road and stable working performance, very suitable for video capture and visual inspection robot. It is designed with 10 hydraulic damping shock absorbers and unique designed crawler with inner and outer patterns, keeping it with good ground adhesion and smoother passing performance.
2. Product Application:
1. Exploration of inspection
2. The rescue vehicle
3. Scientific research and education
4. Fire control security guard
5. Special photography
6. Special transport
3. Product Features:
1. The body is made of 304 stainless steel, solid and durable.
2. Christie * 12 shock absorption, more stable.
3. Superior grip, perfect obstacle-crossing performance.
4. Product Specification:
|
Item |
Data |
Item |
Data |
|
Dimension (mm) |
610*480*180mm |
Internal Size (Excluding Battery) |
260*270*80mm |
|
Chassis Weight |
15kg |
Max. Loading Capacity |
20kg |
|
Ground Clearance |
70mm |
Degree of Protection |
IP54 |
|
Max. Spanning |
100mm |
Running Speed |
0-5km / h |
|
Maximum Climbing |
30 ° |
|
|
|
Track Material |
Rubber (Kevlar Embedded) |
Track Width |
80mm |
|
Suspension System |
Christie * 12 Shock Absorption |
Body Material |
304 Stainless Steel / Alloy Steel / Aluminum / Carbon Fiber |
|
Surface Treatment |
Black Spray (Matte) |
Drive Wheel Diameter |
70mm |
|
Rated Torque |
6.6N · M |
Transmission Ratio |
10 |
Electrical Part Technical Parameters
|
Voltage |
DC24V |
|
Total Power (Max.) |
400w |
|
Motor Selection |
DC Brushless Motor |

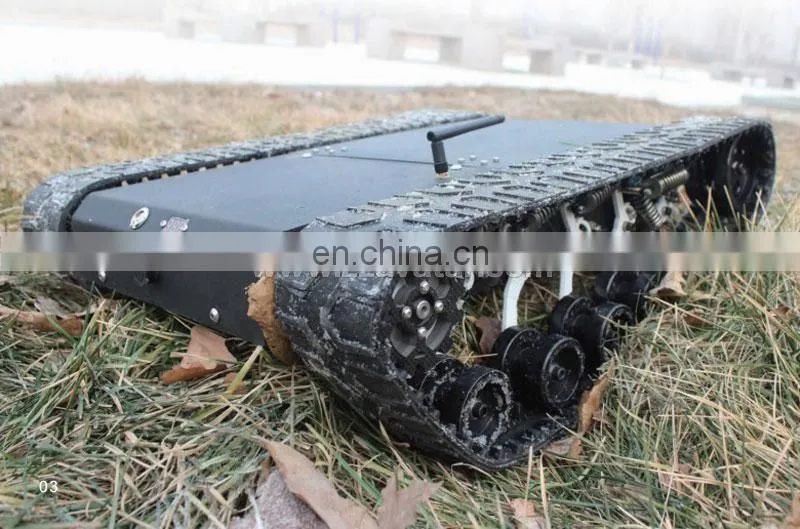

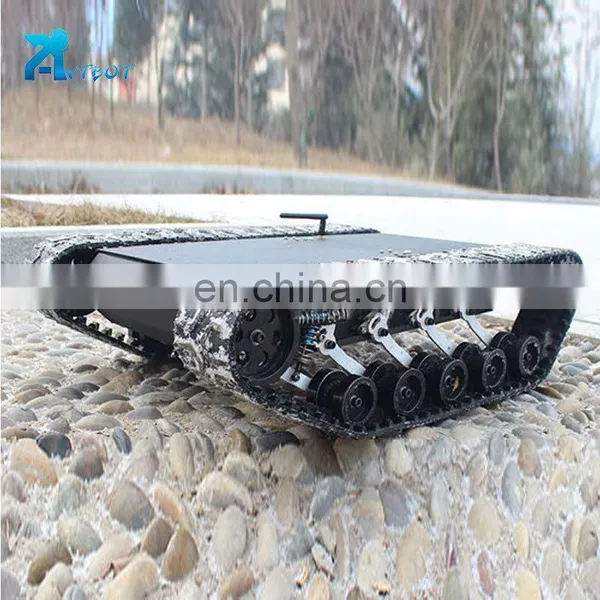

5. Product Picture show:
Packing: Wooden case .
Delivery way: By express, by air or by ship.
