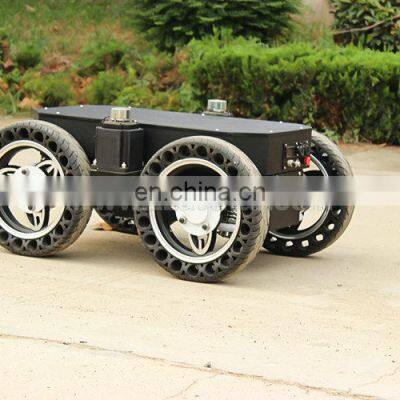

UGV vehicle ROS robot robot chassis Off-road small UGV chassis platform for sale
Introduction:
1. AVT-W9D wheeled robot chassis has a variety of customizable configurations, can be competent for various working conditions.
2. It’s equipped with 4 sets of shock absorption and independent suspension structure, the stability and load are greatly improved.
3. It uses differential steering method, the steering is very easy.
4. The explosion-proof tires reduces the body weight, it’s particularly suitable for outdoor operations.
Application:
1. Exploration of inspection
2. Scientific research and education
3. Special photography
4. Special transport
Mechanical Parameters:
|
Item |
Data |
Item |
Data |
|
Dimensions |
920*650*503mm |
Platform size |
764*405mm |
|
Self weight |
120kg |
Running speed |
0-7.2km/h |
|
Tyre type |
Non-inflatable explosion-proof solid rubber tire |
Chassis height |
156mm |
|
Body Material |
Carbon steel/alloy steel plate/aluminum |
Protection level |
IP53 |
|
Vibration reduction |
Four-wheel independent suspension shock absorption |
Surface treatment |
Spray paint/plastic spray |
|
Motor |
48v1000w*2 DC brushless |
Design load |
100kg |
|
Reduction ratio |
1:22.325 |
Maximum climbing |
30° |
|
Maximum obstacle |
100mm |
Turning radius |
Pivot steering |
