Heavy duty rubber track undercarriage robot tracked vehicles
Key Words: rubber track system robot, crawler chassis, crawler platform, robot chassis

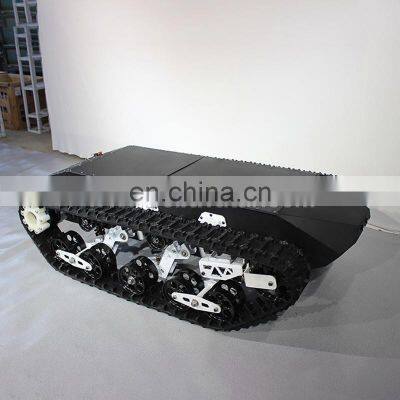

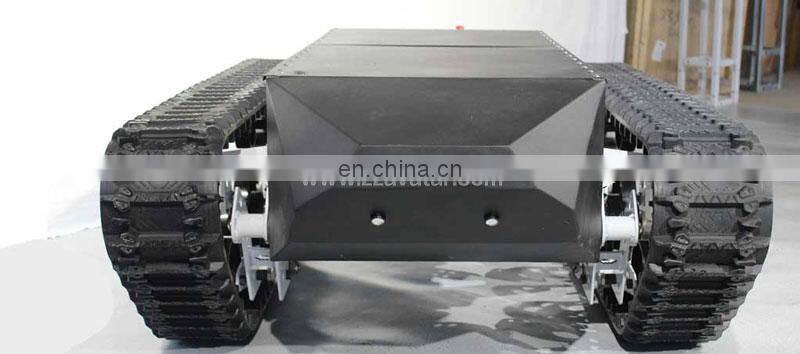

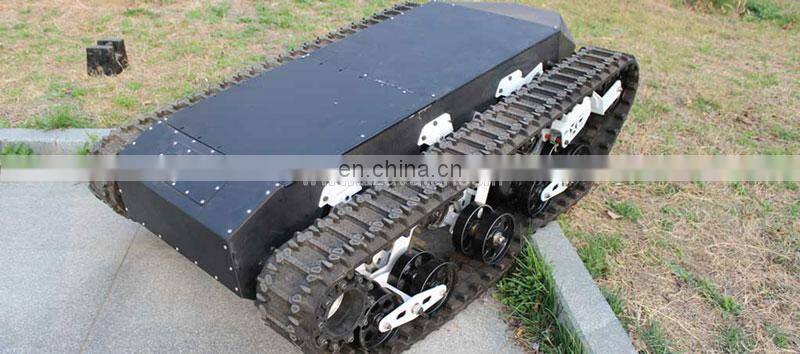

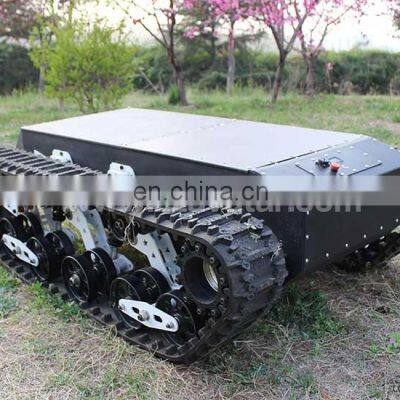

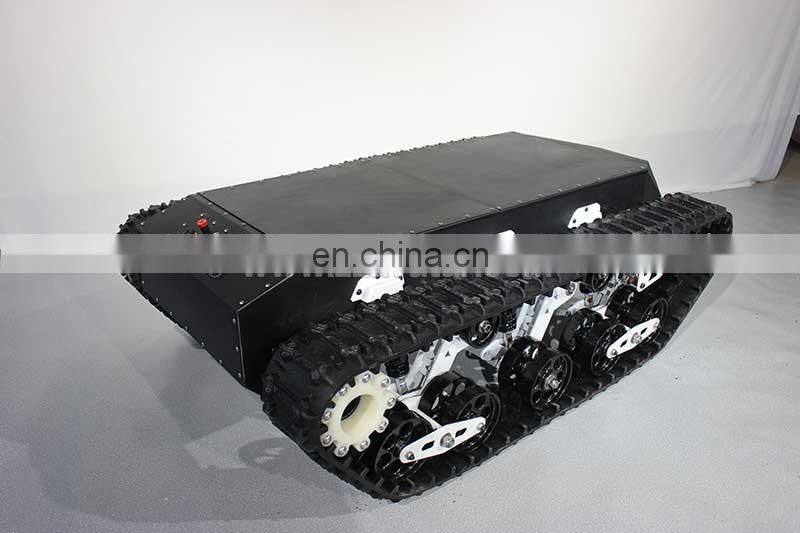

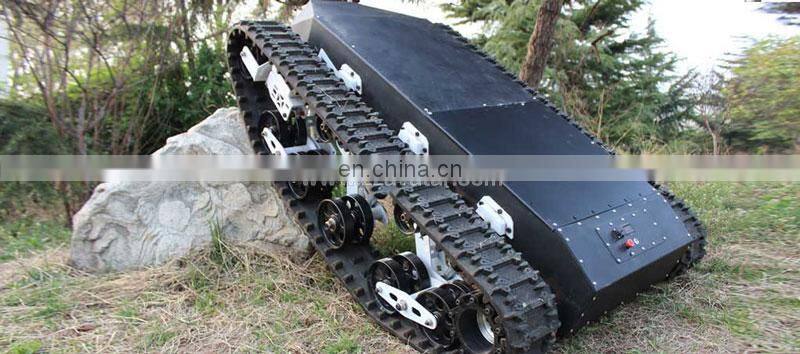

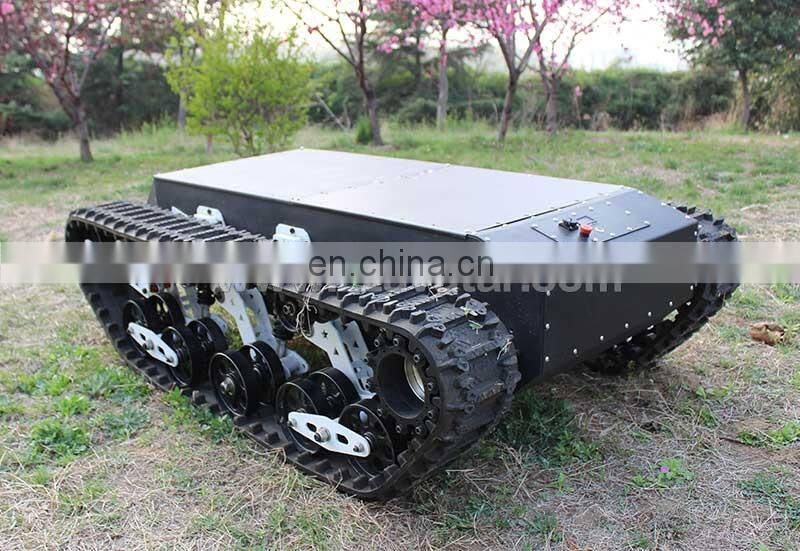

AVT-17T robot tracked vehicles
AVT-17T tracked robot chassis is our best seller.
1. 6sets of hydraulic shock absorption, independent suspension structure, vehicle stability and load increased significantly.
2. Independent tensioning device, can adjust the tension of the crawler.
3. The ground height of the chassis is 190mm, and the passing ability is improved.
4. Modular design and disassembly maintenance is convenient.
5. Stable and domineering appearance, adding a lot of features to the machine, also to provide users with a better chassis program.
Item |
Data |
Dimension |
1650*1016*491mm |
Chassis Self Weight |
220kg |
Rated Load |
200kg |
Body Material |
304 Stainless Steel/ Alloy Steel Plate/Aluminum |
Crawler Width |
180mm |
Crawler Material |
Quality Rubber Embedded with Kovlar Fiber |
Shock Absorption |
Left and Right Independent *6 |
Reduction Gears |
Double Reduction Planetary |
Reduction Ratio |
1:16 |
Motor |
48V Brushless DC Motor |
Rated Power |
1760W*2 |
Inner Space |
1300*500*256mm |
Rated Speed |
6.00km/h |
Rated Torque |
93.8NM |
Chassis Height |
190mm |
Max Turn Over |
320mm |
Max Span |
467mm |
Max Climbing |
50% |
Ground Pressure |
24.48KPa |
Turning Diameter |
1830mm |
IP Grade |
IP54 |
Surface Treatment |
Black Coating(scrub) |
1.Exploration of inspection
2.The rescue vehicle
3. Scientific research and education
4. Fire control security guard
5. Special photography
6. Special transport
Model |
AVT-800T stair climbing robot chassis |
Self Weight |
120KG |
Load Weight |
100KG |
Height of Chassis |
134mm |
Dimension |
1014*740*427mm |
Material |
Steel Pipe |
Model |
AVT-1000T waterproof robot chassis
|
Dimension |
1056*764*461mm |
Self Weight |
120KG |
Load Weight |
140KG |
Body Material |
Stainless Steel Plate |
Waterproof |
Remote Control IP67, Wire-Controlled IP68 |
1.Professional technical support pre-sale, sale and after-sale.
2.Your problems can get feedback in 8 hours and be solved in 24 hours.
3.Machine can be customized as per your requirement.
4.One year quality warranty.
5.Training: operation manual and DVD operation video, overseas installation is also available.
6.Spare parts are available in our factory at cost price for former customers.
