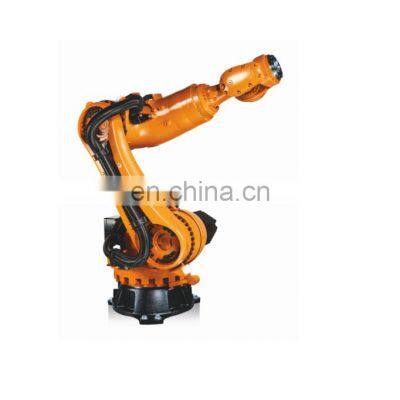

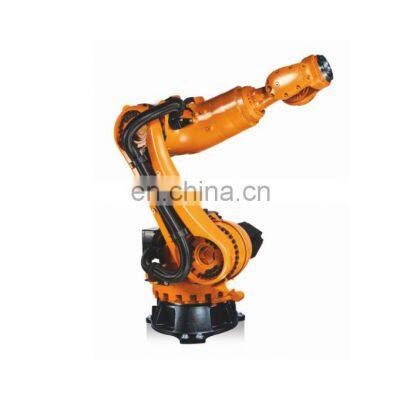

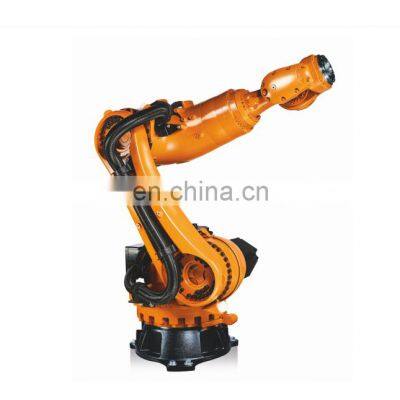

Robot Arm Kuka Kr120r1800 6 Axis Robotics and Robot Arm Label Applicator
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2001
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Industrial Robot Kuka Kr10r1420 Welding Robot and Cheap Welding Robot ArmsNegotiableMOQ: 1 -
Spray Painting Robot Arm 6 Axis KUKA KR120R1810 Robotic Arm Spraypaint Long Reach Robot ArmNegotiableMOQ: 1
-
Robotic Unpacking Arm Kuka Kr70r2100 Robot Arm Laser and Robot Lifting Arm 70kgNegotiableMOQ: 1
-
Robot Arm Cnc KUKA KR120R1810 Kuka Robot 210kg Payload Roboticarm for Commercial KitchenNegotiableMOQ: 1
-
Robotic Arm Welding Machine Kuka Kr50r2100 Kuka Robot 6 Axis Robot PriceNegotiableMOQ: 1
Products Description
Perfected for handing and assembly: Fast and incredibly agile with the utmost precision. Down to the very last detail,KR CBERTECH nano robots are designed as high-end handing robots.
Compact design.Reduced volume with greater payload capacity and longer reach. KR CYBERTECH nano robots work in confined spaces.
Minimized disruptive contour. A stareamlined arm/wrist design, a minimized disruptive contour of axis 2 and optimal integration of the welding equipment.
Maximum workspace. With their large working envelope to the rear and long downward reach ,KR CYBERTECH nano robots can work in areas inaccessible to cinventional robots.
Best-in-class repeatability. Besides many other innovative technical details, the KR CYBERTECH nano robots impress with a repeatability of 0.06 mm.
Flexibility in any position. Exceptional performance when installed on the floor,wall or ceiling ,or at any other angle.KR CYBERTECH nano robtos are suitable for every installation position in their standard versions-without requiring"extras"
KUKA KR120R1800 Technical data |
||
Maximum reach |
1803 mm |
|
Rated payload |
120 kg |
|
Pose repeatability(ISO 9283) |
±0.06 mm |
|
Number of axes |
6 |
|
Mounting position |
Floor |
|
Footprint |
901 *610 mm |
|
Weight |
approx.684 kg |
|
Ambient temperature during operation |
10°to 55℃（283K to 328K） |
|
Protection (IEC 60529) |
IP65 |
|
Protection,robot Wrist(IEC 60529) |
IP65 |
|
Controller |
KR C4 |
|
Teach pendant |
KUKA smartPAD |
|
Axis data |
Motion range |
Speed with rated payload |
A1 |
±180° |
123°/s |
A2 |
-145°/-45° |
114°/s |
A3 |
-130°/150° |
86°/s |
A4 |
±350° |
292°/s |
A5 |
±125° |
258°/s |
A6 |
±350° |
284°/s |
Specification
Product packaging
Application
KUKA ROBOT FOR MACHINE TENDING
KUKA ROBOT FOR WELDING
KUKA ROBOT FOR PICK&PLACE
