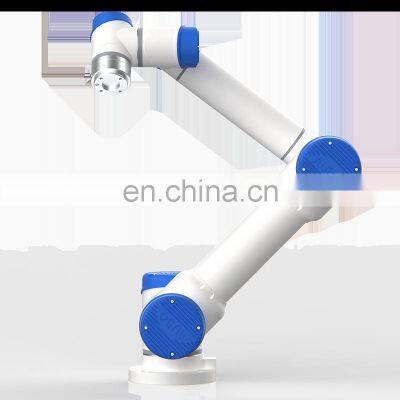

Hot Sale Cobot Industrial Robotic Arm AUBO C5 Cobot 6 Axis for 5kg Payload 886.5 mm Arm Reach Collaborative Robot

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Products Description

AUBO-C5 TECHNICAL SPECIFICATIONAS
Dedrees of freedom	6
Reach	886.5 mm
Payload	5Kg
Weight	24 Kg
Lifetime	30000 h
Collaboration	Collaboratiove operation acoording to ISO 10218-1:2001
Repeatability	±0.1 mm
Linear velocity	≤2.8 m/s
Power consumption	200W(Under normal working conditions)
Materials	Aluminum,Steel,Plastic
Ambient humidity	25% - 90%
Ambient temperature	0-50℃
IP Classification	IP 54
Programming	Teach pendant with user interface
Communication	CAN bus
Motor Type	DC 48V
Installation orientation	Any celling,Floor,Wall

Axis Movement	Working Range	Maximum Speed
J1 Axis Base	±175°	147°/s
J2 Axis Shoulder	±175°	147°/s
J3 Axis Elbow	±175°	147°/s
J4 Axis Wrist	±175°	180°/s
J5 Axis Wrist	±175°	180°/s
J6 Axis Wrist	±175°/±360°	180°/s

I/O Port On Wrist						I/O Port On Wrist
Voltage	Current	Digital In	Digital Out	Analog In	Analog Out
0V/12V/24V	0.8A	4	4	2	0

Control Box
Dimensions	380 350 256 mm
Weight	15 Kg
Cabling	5 m
Color	Black
Communication	Eternet、Modbus-RTU/TCP
Interface	SDK(Support CC++LuaPython)
Power Supply	100-240VAC, 50-60Hz
IP Classification	IP43

I/O Ports	General I/O	Safety I/O
Digital In	16	16
Digital Out	16	16
Analog In	4	-
Analog Out	4	-
Power Input	24V
Power Output	3A

Teach Pendant
Domensions	35523554 mm
Weight	1.57 Kg
Display Screen	30cm Touch LCD Screen
Cabling	4 m
IP Classification	IP43
Color	Bule and White

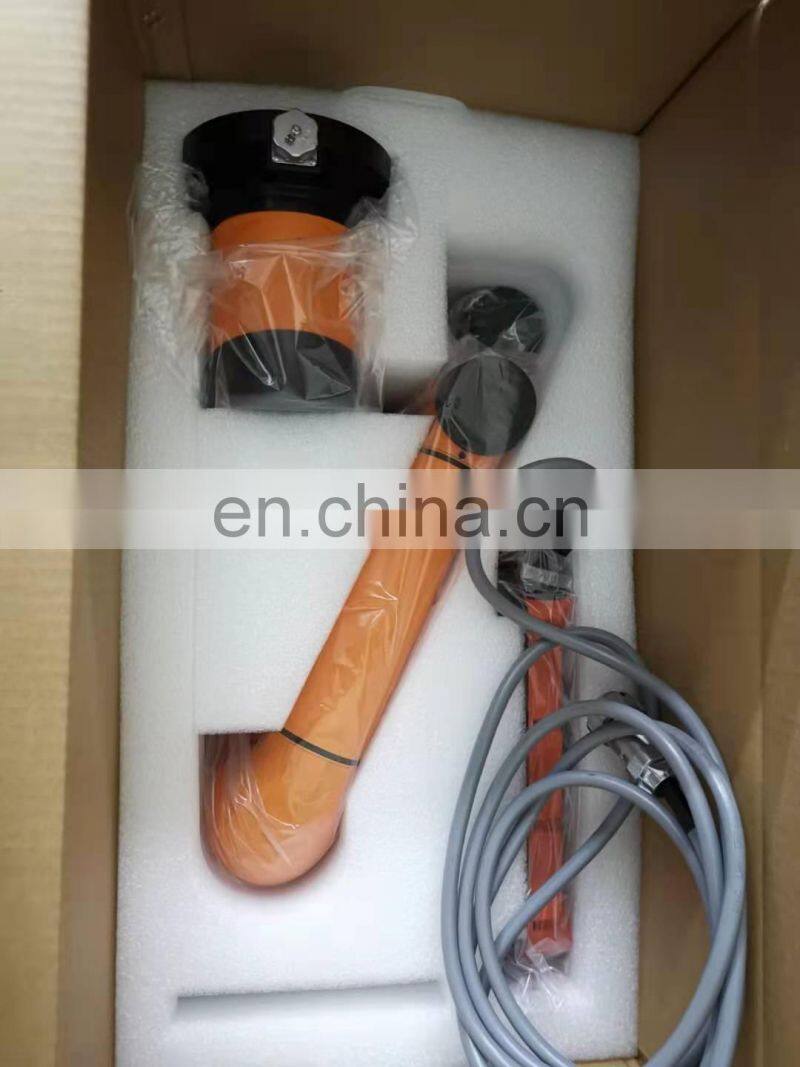

Product packaging

Similar Products

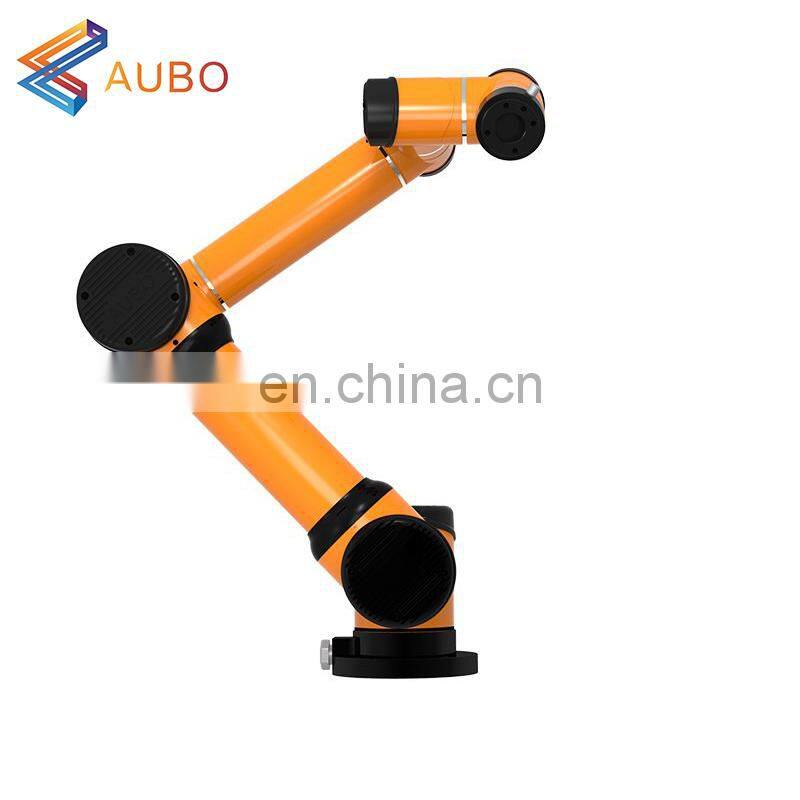

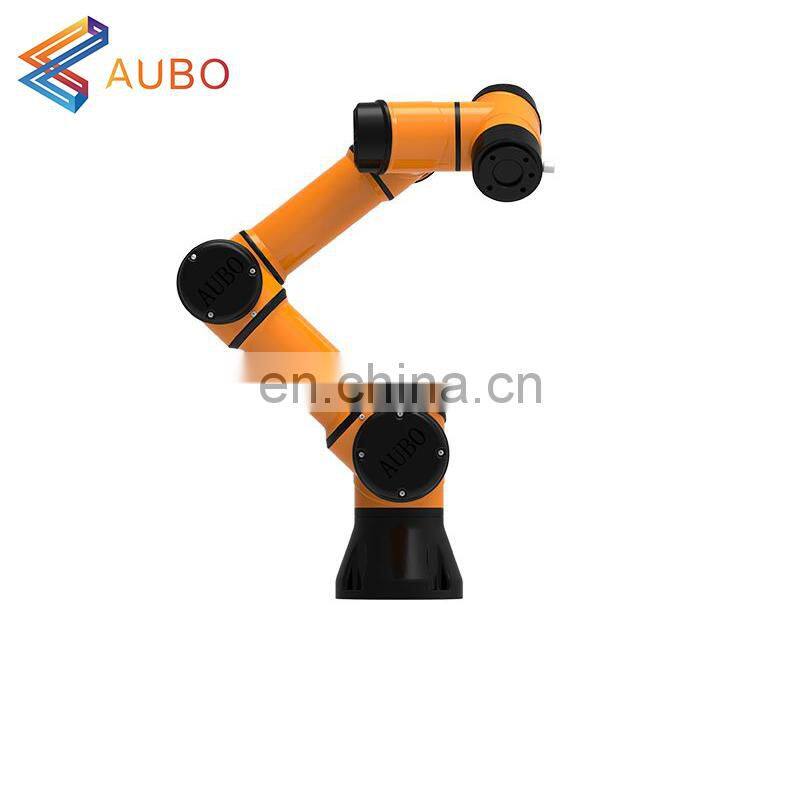

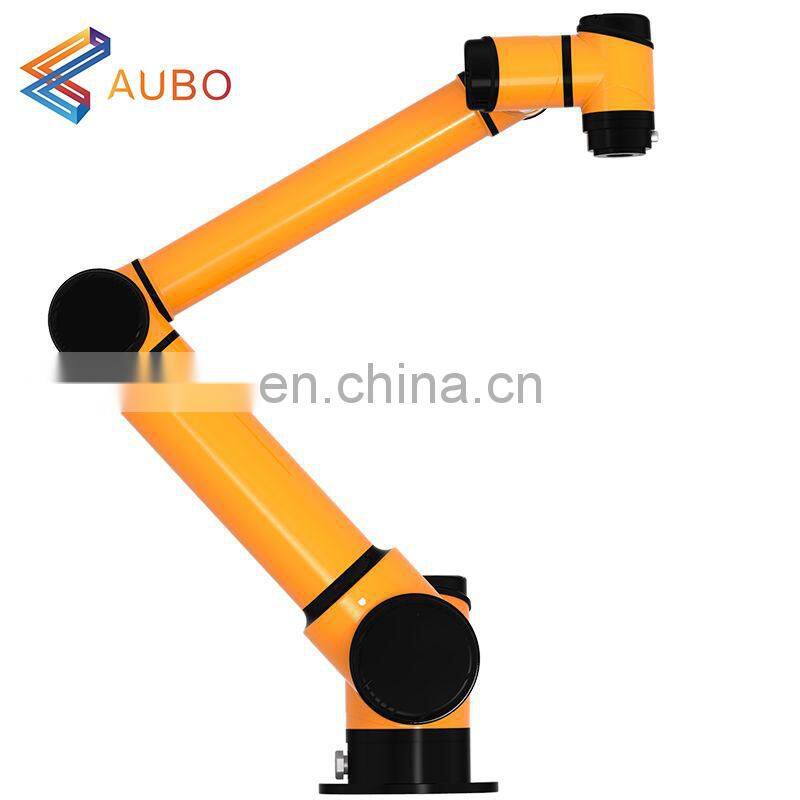

AUBO-I3

AUBO-I5

AUBO-I16

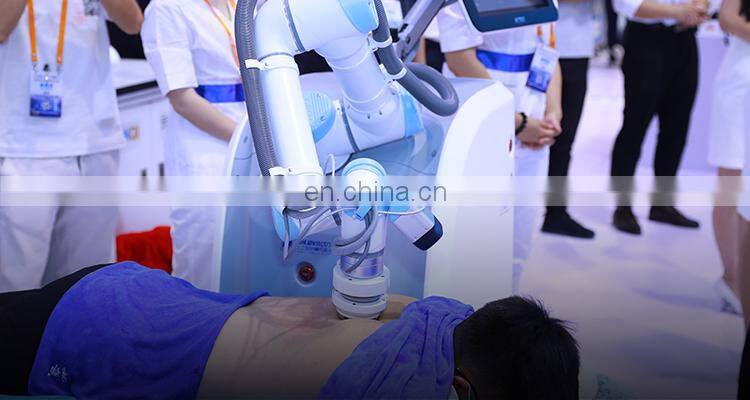

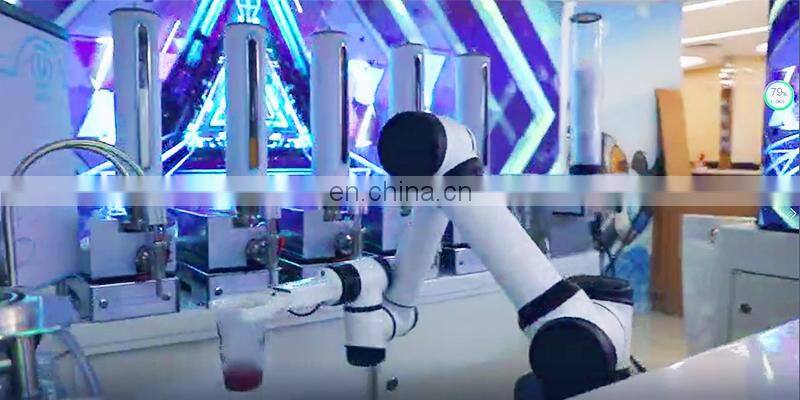

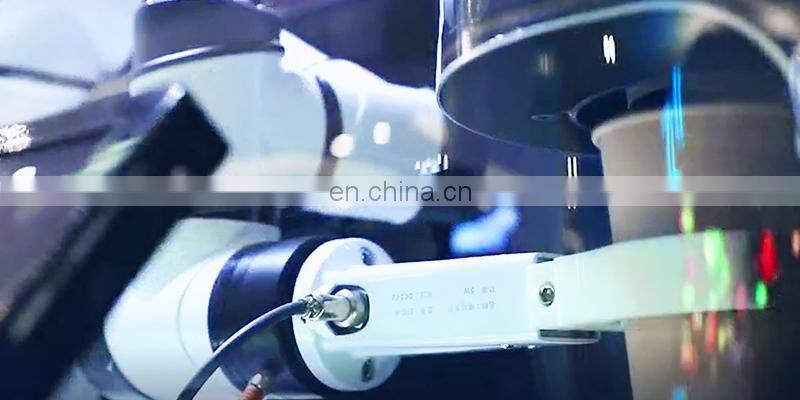

Application

AE Robotics Co., Ltd

Email :info@automationar.com

Sales Manger : Eric
P&W：+86 135 1097 8730

Tele：0755-82598262

Company Profile

AE Robotics Co., Ltd

We are an one-stop robot provider in China.Providing high cost effective robot and cobot.we are distributor of ABB,KUKA,KAWASAKI EPSON etc. and sell robot whole world. we provide customer one stop serivce, help customer customzied robotics tools.

Trust is first, Providing the best Pre-sale service and after-sale service is very important for customer. Hope we can make win-win and long-term business.

FAQ

Q1：How long time delivery time

A1：7~10workding days

Q2: What brand of gearbox
A1： J1~J3 is Japan nabtesco RV reducer, J4~J6 is Leaderdrive Harmonic reducer

Q3: How to program
A3: Teaching pendant english interface,

Q4:How many Digital interface
A4: User Digtial input and output 16/16

Q5：What is warranty
A5: 12month
