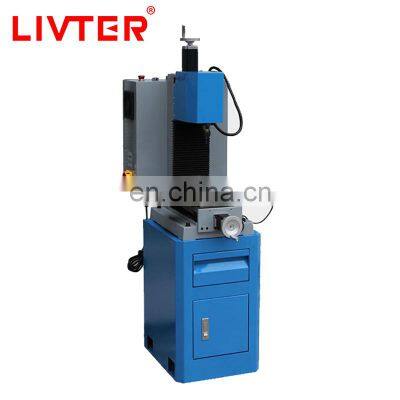

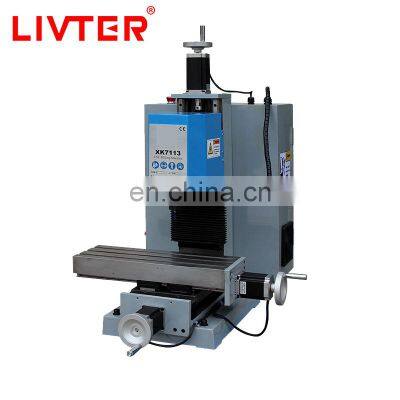

Multifunctional High-Precision Fully Automatic Micro Vertical Cnc Milling Machine For Metal Parts
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Simple Cnc System Micro Cnc Drilling And Milling Machine Engraving Machine For For Milling Aluminum And Metal
-
LIVTER XK7113A Mini Metal Bench Top China Mini Drilling And Milling Machine For Sale
-
LIVTER High Precision Cnc Milling Machine
-
LIVTER carbide inserts band saw baldes Carbide Tipped TCT band saw baldes for cutting hard wood
-
LIVTER HSS diameter section gear hobber shaving knife slotting cutter M1M2M3M4M520 degree gear hobbing knife can be customized
-
LIVTER Gear hobber grade a pressure angle 20 degree CNC gear hobbing machine M1M3M4M5 overall M42
Product Description
Products Description
Model | XK7113A | Weight | 84（kg） | Main motor power | 0.4（kw） |
Spindle speed range | 0-3000（rpm） | Table size | 400*140（mm） | Taper of spindle taper hole | ER20 |
Number of T-slots | 3 | Control form | CNC | Layout form | Vertical |
Maximum drilling diameter | 13MM | X-axis travel | 220MM | Y-axis travel | 120MM |
Z-axis travel | 200MM | T-slot | m12 | Main shaft center to column | 180mm |
Main shaft end to workbench | 200mm | Main shaft speed | 0-3000rpm | Main shaft motor | 400w |
Unpowered main shaft | ER20 | Ball leading screw (diameter + lead) | 1605 | Rail width | 15MM |

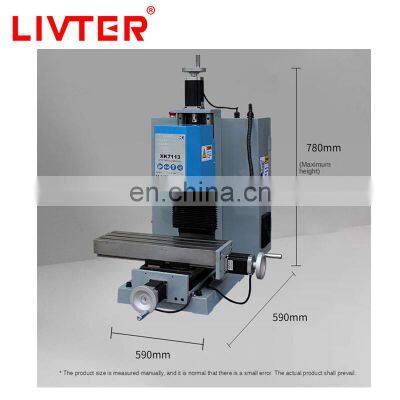

Stepper motor torque X/Y/Z | 2.5/2.5/3.2N.M | Machine tool dimensions | 590*590*780MM | Net weight of machine | 84KG |
Mini precision CNC milling machine Small floor space/high precision/strong applicability The unpowered main shaft is driven by
the DC brushless motor, which has no brush, low interference, low noise, smooth operation, long service life and low maintenance
cost; Main shaft speed can reach 3000 rpm high speed cutting The motor movement angle can be controlled by the number of gating
pulse, so as to achieve the purpose of precise displacement of each axis. At the same time, it can be switched to manual feed mode
through a dedicated knob to experience the fun of processing parts. Ball screw is double nut ball screw, Double Nut does not
change with the external load of additional pressure, and there is always friction torque, can prevent the nut relative to the
bolt rotation, can improve the fastening effect. Ball screw has small friction loss, high transmission efficiency and high
precision, which can ensure accurate micro-feed, high axial rigidity, no self-locking, and reversible transmission. Three-axis
linear guide rail is used, with fast movement speed, small rolling resistance, no crawling phenomenon, convenient lubrication,

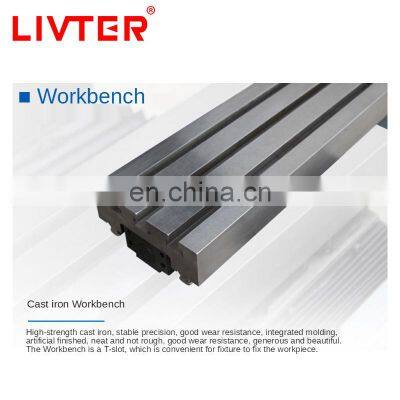

long-time use and small precision loss. High-strength cast iron, stable precision, good wear resistance, integrated molding,
artificial finished, neat and not rough, good wear resistance, generous and beautiful. The Workbench is a T-slot, which is
convenient for fixture to fix the workpiece. The manual pulse generator output of 100PPR can display the workpiece coordinates and
mechanical coordinates of the machine tool in real time. Through the band axis selection switch, the X,Y and z axes can be
selected, and the coordinates of each axis can be adjusted; feed speed adjustment, showing the corresponding feed speed; Main
shaft opening and main shaft speed adjustment functions
the DC brushless motor, which has no brush, low interference, low noise, smooth operation, long service life and low maintenance
cost; Main shaft speed can reach 3000 rpm high speed cutting The motor movement angle can be controlled by the number of gating
pulse, so as to achieve the purpose of precise displacement of each axis. At the same time, it can be switched to manual feed mode
through a dedicated knob to experience the fun of processing parts. Ball screw is double nut ball screw, Double Nut does not
change with the external load of additional pressure, and there is always friction torque, can prevent the nut relative to the
bolt rotation, can improve the fastening effect. Ball screw has small friction loss, high transmission efficiency and high
precision, which can ensure accurate micro-feed, high axial rigidity, no self-locking, and reversible transmission. Three-axis
linear guide rail is used, with fast movement speed, small rolling resistance, no crawling phenomenon, convenient lubrication,
long-time use and small precision loss. High-strength cast iron, stable precision, good wear resistance, integrated molding,
artificial finished, neat and not rough, good wear resistance, generous and beautiful. The Workbench is a T-slot, which is
convenient for fixture to fix the workpiece. The manual pulse generator output of 100PPR can display the workpiece coordinates and
mechanical coordinates of the machine tool in real time. Through the band axis selection switch, the X,Y and z axes can be
selected, and the coordinates of each axis can be adjusted; feed speed adjustment, showing the corresponding feed speed; Main
shaft opening and main shaft speed adjustment functions
