Home > Products > Wood working Machines&Accessories&Tools > LIVTER MB4013D First Lower Shaft Outer Diameter 125MM 4 Spindle Four Side Wood Planer

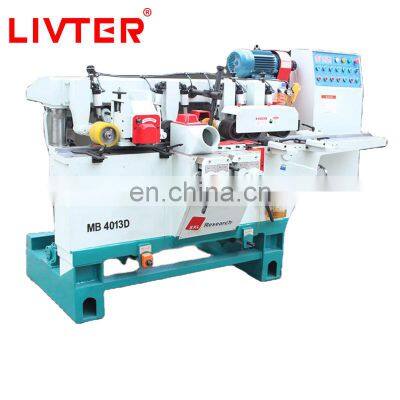

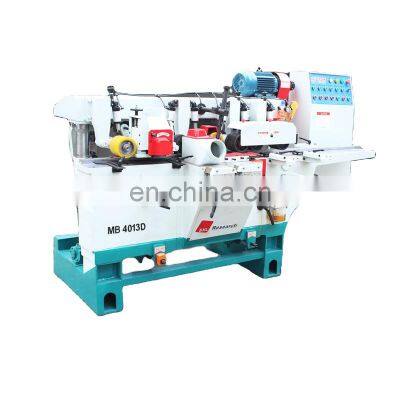

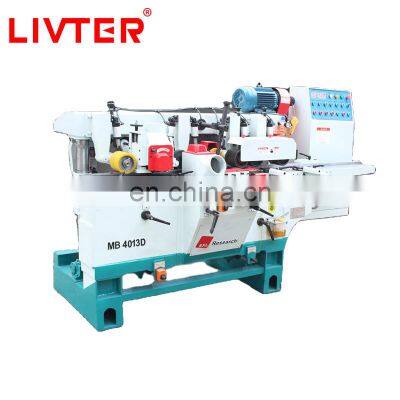

LIVTER MB4013D First Lower Shaft Outer Diameter 125MM 4 Spindle Four Side Wood Planer
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- Grinding Wheel Chamfering Machines 45 Tabletop High-Speed Powerful Chamfering Machine 0-6Mm High Precision Fine-Tuning Reverse Q
- 1/4\" Fillet Milling Cutter Edge trimming and chamfering router bit for Portable Electric Trimming Machine
- LIVTER Thread Gear Carbide Fly Cnc Milling Cutter Wood
- LIVTER Slide Rail Chamfer Plane Angle Precision Belt Guide 0-6 Powerful Portable Beveling Plate Chamfer 45 Degrees
- LIVTER Wooden Door Keyhole Drilling Slotting Knife Keyhole Grooving Milling Cutter
- LIVTER Keyhole Knife Suitable For Double-End Milling Tungsten Round Spine Carbide Inserts For Wood Milling Cutter
Product Description
Products Description

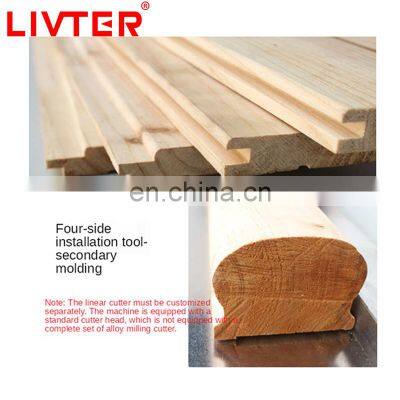

Four-side installation tool-secondary molding
Note: The linear cutter must be customized separately. The machine is equipped with
a standard cutter head, which is not equipped with a complete set of alloy milling cutter. The bed is made of one piece casting
pouring and processed by special processing precision, with stable performance and good rigidity. Table Top and guide plate
electroplating hard chrome, high hardness and good wear resistance. Feeding pressure structure adopts sectional form cylinder
pressure, stable pressure The four main shaft motors are controlled independently, and the 4-level motor is used for two-level
variable speed feeding. Packing method of machine transportation: Pearl cotton packaging.
a standard cutter head, which is not equipped with a complete set of alloy milling cutter. The bed is made of one piece casting
pouring and processed by special processing precision, with stable performance and good rigidity. Table Top and guide plate
electroplating hard chrome, high hardness and good wear resistance. Feeding pressure structure adopts sectional form cylinder
pressure, stable pressure The four main shaft motors are controlled independently, and the 4-level motor is used for two-level
variable speed feeding. Packing method of machine transportation: Pearl cotton packaging.
Name | MB4013D | MB4015D | MB4018D |
Processing width | 20-130MM | 20-150MM | 20-180MM |
Feeding speed | 8-100MM | 8-100MM | 8-120MM |
Feeding power | 8-24M/MIN | 8-24M/MIN | 8-24M/MIN |
Cutter shaft speed | 2.2KW380V | 2.2KW380V | 4KW380V |
Air source pressure | 6000R/MIN | 6000R/MIN | 6000R/MIN |
Plunge cut power | 0.6MPA | 0.6MPA | 0.6MPA |
Right knife power | 2.2KW380V | 3KW380V | 4KW380V |
Left knife power | 3KW380V | 3KW380V | 4KW380V |
Top knife power | 4KW380V | 4KW380V | 4KW380V |
Beam lifting power | 0.37KW 380V | 0.37KW 380V | 0.75KW 380V |
Total power | 13.97KW 380V | 15.57KW 380V | 22.25KW 380V |
Main shaft shaft diameter | 40MM | 40MM | 40MM |
First lower shaft outer diameter | 125MM | 125MM | 125MM |
About Upper spindle outer diameter | 110-160MM | 110-160MM | 110-160MM |
Sweep-up pipe caliber | 100MM | 100MM | 100MM |
Dimensions | 2650*1150*1480MM | 2700*1150*1500MM | 2950*1400*1650MM |
Weight | 1300KG | 1400KG | 1450KG |
Company Profile
Strong (XiaMen) Mechanical & Electrical Co., Ltd is a professional enterprise specialized in R&D ,manufacturing and sales. she
located in XingLin Taiwanese investment zones,JiMei district,XiaMen City. We focus on:wood-working machinery, machines for cutting
pipes and bending pipes,wood-working tools,band saw blade,and circular saw blade for cutting all kind of materials(such as solid
wood,MDF,HDF,chipboard,steel,stainless steel,lead,aluminium,copper,marble,concrete,glass,etc.) Our enterprise insisted on the
principle of"Preach virtues.safeguard credit.Promote Harmony.Come up with innovation".Our international cooperation partners
include Dimar(Germany), Golden-eagle(Taiwan), KANEFUSA(Japan), With rich technological resoures,advanced equipments(from
Germany),high quality materals(from Germany and japan) ,skilled workers and excellent after-sale service,our enterprise has
enjoyed high reputation both in domestic and overseas matkets,such as Europe,North America,South America,South East Asia,Middle
East. Base on the custmers'requirements,we constantly make efforts to develop and research not only new technology but also new
products.we can customize any specification to fit your request.And all kind of win-win cooperation avenue will be appreciated
located in XingLin Taiwanese investment zones,JiMei district,XiaMen City. We focus on:wood-working machinery, machines for cutting
pipes and bending pipes,wood-working tools,band saw blade,and circular saw blade for cutting all kind of materials(such as solid
wood,MDF,HDF,chipboard,steel,stainless steel,lead,aluminium,copper,marble,concrete,glass,etc.) Our enterprise insisted on the
principle of"Preach virtues.safeguard credit.Promote Harmony.Come up with innovation".Our international cooperation partners
include Dimar(Germany), Golden-eagle(Taiwan), KANEFUSA(Japan), With rich technological resoures,advanced equipments(from
Germany),high quality materals(from Germany and japan) ,skilled workers and excellent after-sale service,our enterprise has
enjoyed high reputation both in domestic and overseas matkets,such as Europe,North America,South America,South East Asia,Middle
East. Base on the custmers'requirements,we constantly make efforts to develop and research not only new technology but also new
products.we can customize any specification to fit your request.And all kind of win-win cooperation avenue will be appreciated
