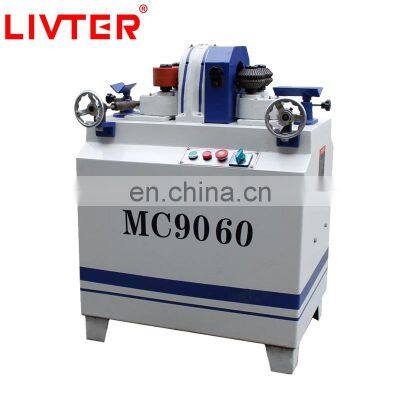

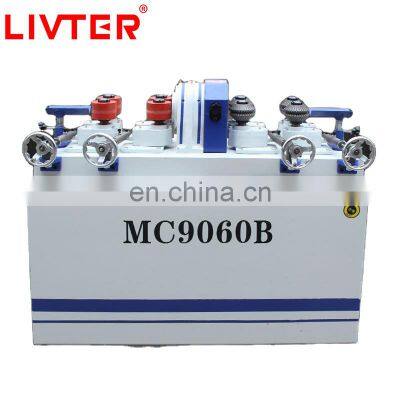

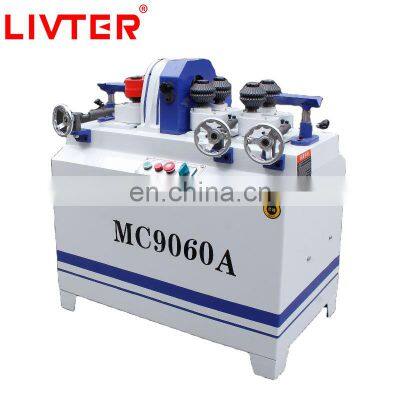

Home > Manufacturing & Processing Machinery > Woodworking Machinery > Other Woodworking Machinery > LIVTER MC9060B 600MM Professional Wood Round Rod Cutter Milling Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2004
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LIVTER MJ163A High Precision Straight Line Rip Saw Machine For WoodworkingNegotiableMOQ: 1 -
4-Inch C-Type Chuck Four-Jaw Self-Centering Lathe Chuck For Woodworking LathesNegotiableMOQ: 1
-
LIVTER 4 Inch Cylindrical Chuck Woodworking Lathe Special Four-Jaw Self-Centering High And Low Claw Inner Round Flat Jaw ChuckNegotiableMOQ: 1
-
Desktop Side Milling Chamfering Machine Large Die Steel Plate Trimming HY-500 15-45 Degree Adjustable Chamfering Angle GrinderNegotiableMOQ: 1
-
Full Set Of HSS Wood Carving Tools Chisel and Punch With Wooden Handle For Wood Lathe MachineNegotiableMOQ: 1
Products Description
Single input and output rod machine Feeding wheel and discharging wheel are each set, which is suitable for processing short
materials with smaller diameter. The machine is equipped with 2 core sets (the size is up to you, if there is no requirement, it
is randomly equipped). Double input and single output rod machine MC9020A/MC9050A/MC9060A Material of discharge wheel: rubber
covering smooth, does not hurt the surface of the processed round rod. When processing round rods with different diameters, the
feed wheel needs to make the following adjustments: Such installation when the processing diameter is less than 25mm When the
processing diameter is greater than 25mm, replace Feeding wheel for installation The machine comes standard with two round bar
knives (one is installed on the cutter and the other is placed in the tool bag); Two core sets (one is installed on the cutter and
the other is placed in the tool bag). The size of the core sleeve determines the size of the round rod and is configured as
required. If the processing diameter is greater than 80mm, other large rod machine can be produced non-standard.
materials with smaller diameter. The machine is equipped with 2 core sets (the size is up to you, if there is no requirement, it
is randomly equipped). Double input and single output rod machine MC9020A/MC9050A/MC9060A Material of discharge wheel: rubber
covering smooth, does not hurt the surface of the processed round rod. When processing round rods with different diameters, the
feed wheel needs to make the following adjustments: Such installation when the processing diameter is less than 25mm When the
processing diameter is greater than 25mm, replace Feeding wheel for installation The machine comes standard with two round bar
knives (one is installed on the cutter and the other is placed in the tool bag); Two core sets (one is installed on the cutter and
the other is placed in the tool bag). The size of the core sleeve determines the size of the round rod and is configured as
required. If the processing diameter is greater than 80mm, other large rod machine can be produced non-standard.
Model | MC9050 | MC9050A | MC9050B | MC9060 | MC9060A | MC9060B | MC9020A | MC9080B |
Main motor power: | 3KW | 3KW | 2.2KW | 3KW | 3KW | 3KW | 2.2KW | 4KW |
Feed motor power: | 0.75KW | 0.75KW | 0.75KW | 0.75KW | 0.75KW | 0.75KW | 0.55KW | 0.75KW |
Main shaft speed: | 4000r/min | 4000r/min | 4000r/min | 4000r/min | 4000r/min | 4000r/min | 5000r/min | 4000r/min |
Feeding speed: | 3/5m/min Double pit wheel speed change | 3/5m/min Double pit wheel speed change | 3/5m/min Double pit wheel speed change | 3/5m/min Double pit wheel speed change | 3/5m/min Double pit wheel speed change | 3/5m/min Double pit wheel speed change | 3/5m/min Double pit wheel speed change | 3/5m/min Double pit wheel speed change |
Processing diameter: | 15-50mm square profile | 15-50mm square profile | 15-50mm square profile | 15-60mm square profile | 15-60mm square profile | 15-60mm square profile | 6-20mm square profile | 20-80mm square profile |
Maximum cutting allowance: | 2mm (radius) | 2mm (radius) | 2mm (radius) | 2mm (radius) | 2mm (radius) | 2mm (radius) | 1mm (radius) | 2mm (radius) |
Minimum processing length: | 400mm | 350MM | 600MM | 400mm | 500MM | 600MM | 500MM | 600MM |
Dimension: | 860*650 * 980mm | 970*650*980MM | 1100*650 * 980mm | 860*650 * 980mm | 970*650*980MM | 1100*650 * 980mm | 480*560 * 820mm | 1200*610*1100 |
Weight: | 250kg | 210KG | 350KG | 250kg | 310KG | 350KG | 200KG | 420KG |
Turbine speed reducer: | 50:1 60 type | 50:1 60 type | 50:1 60 type | 50:1 60 type | 50:1 60 type | 50:1 60 type |
