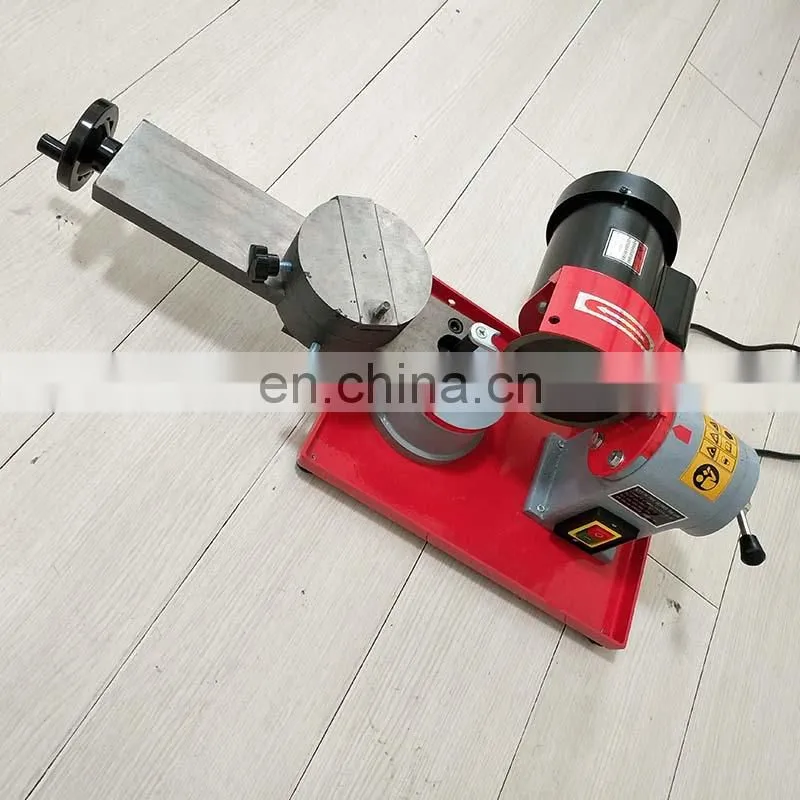

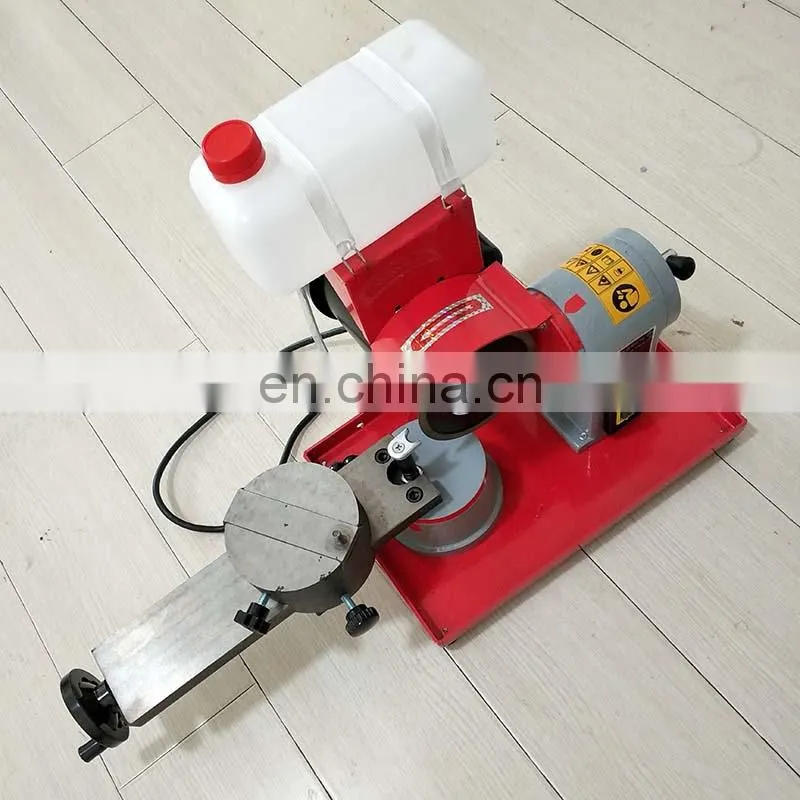

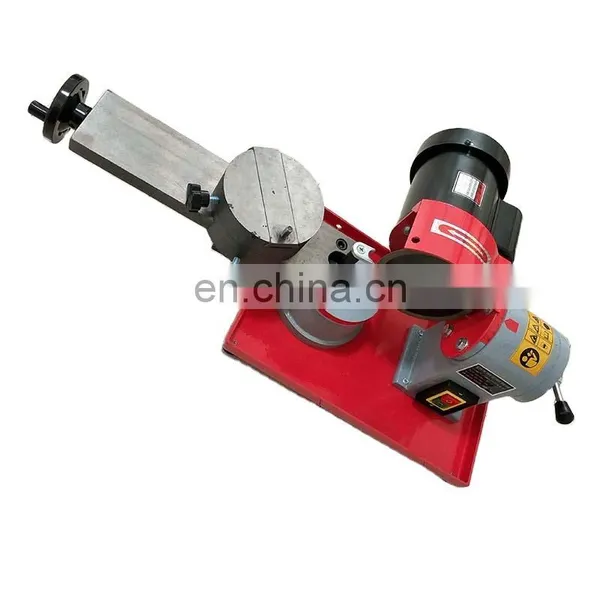

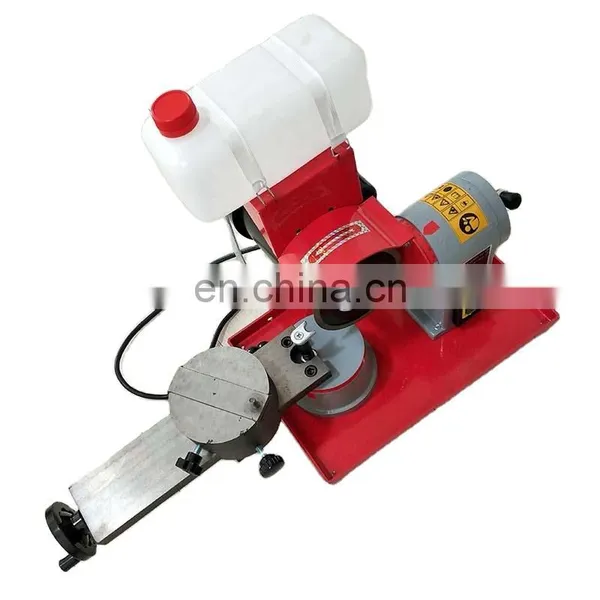

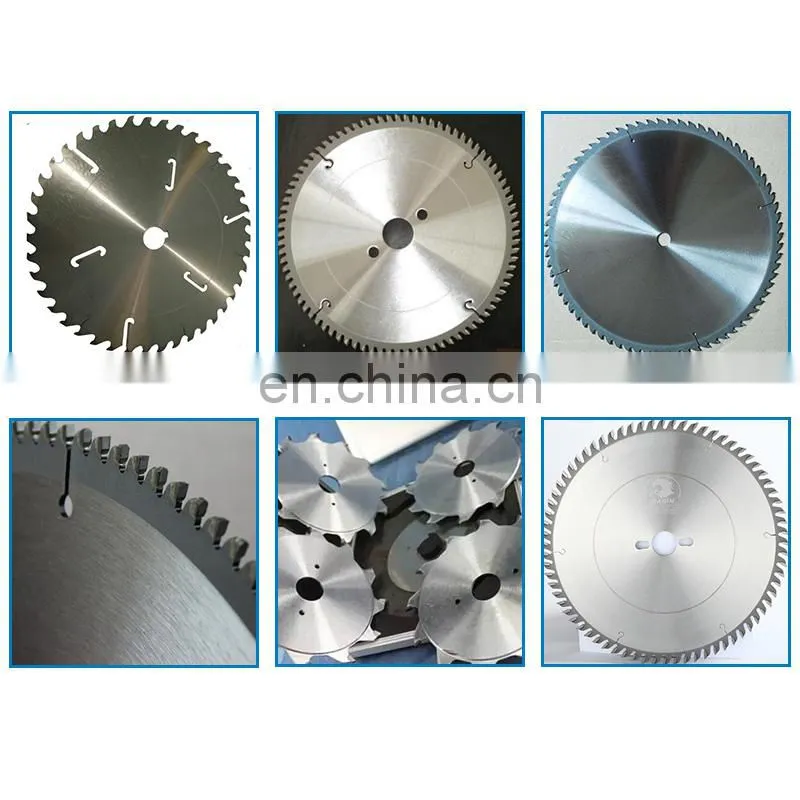

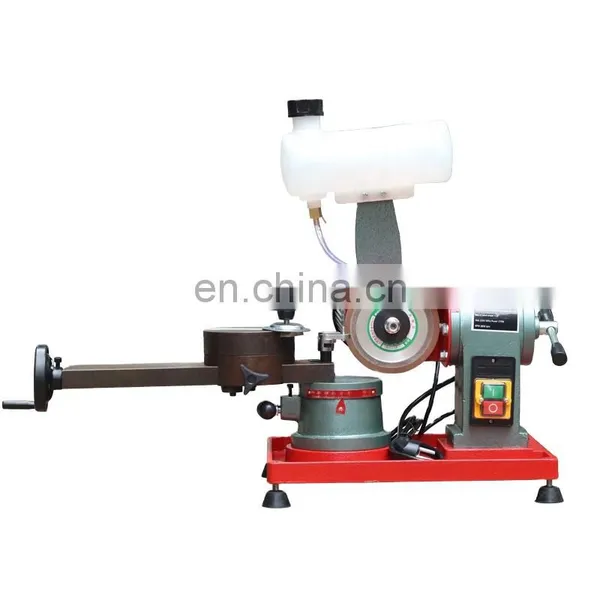

TCT saw blade circular saw blade for wood panel saw blades sharpening grinding machine
Method of operation:

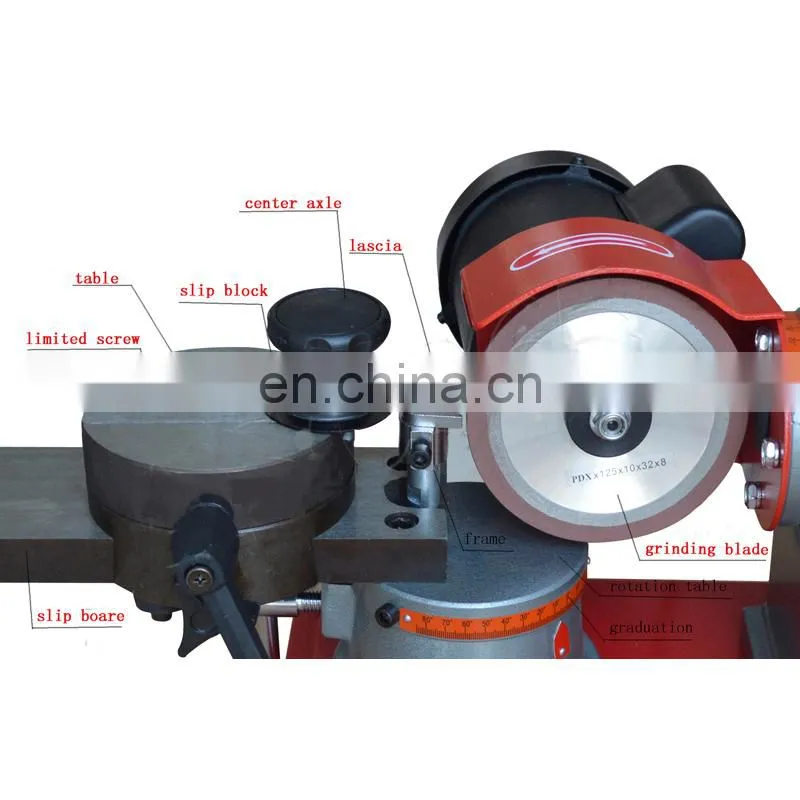

First, loosing the fascia, then adjust the angle of grinding blade and fasten.
Second, adjusting of center axle.
-
Rotating the center axle to the grinding blade.
-
Pushing the center axle to the right.
-
Installing the saw blade ,rotate the wheel and decide the position of grinding surface saw teeth.
-
Rotating the rotation table to ensure the angle of grinding blade.
-
The cross angle between the grinding surface and work surface is about 5.
Third, adjusting of positioning assembly.
-
Adjusting the saw blade to the best grinding position, rotating the positioning frame and fascia.
-
Adjusting positioning pin to the proper base of saw teeth and leave gap of grinding quantity, fasten the fixed screw.
Fourth, adjusting the center axle to the same gap of grinding quantity to the right.
Last, when all the parts are fastened, the saw blade supported with hand will be grinded.
Parameters
| Voltage | 250w/370w/550w |
| Speed | 2850 rpm |

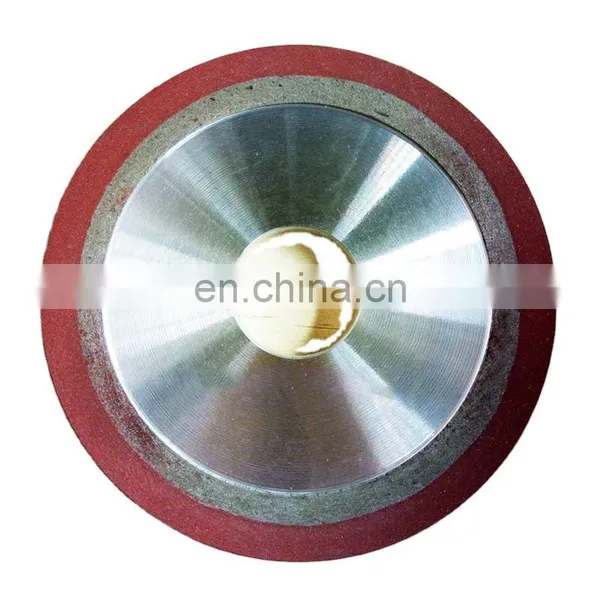

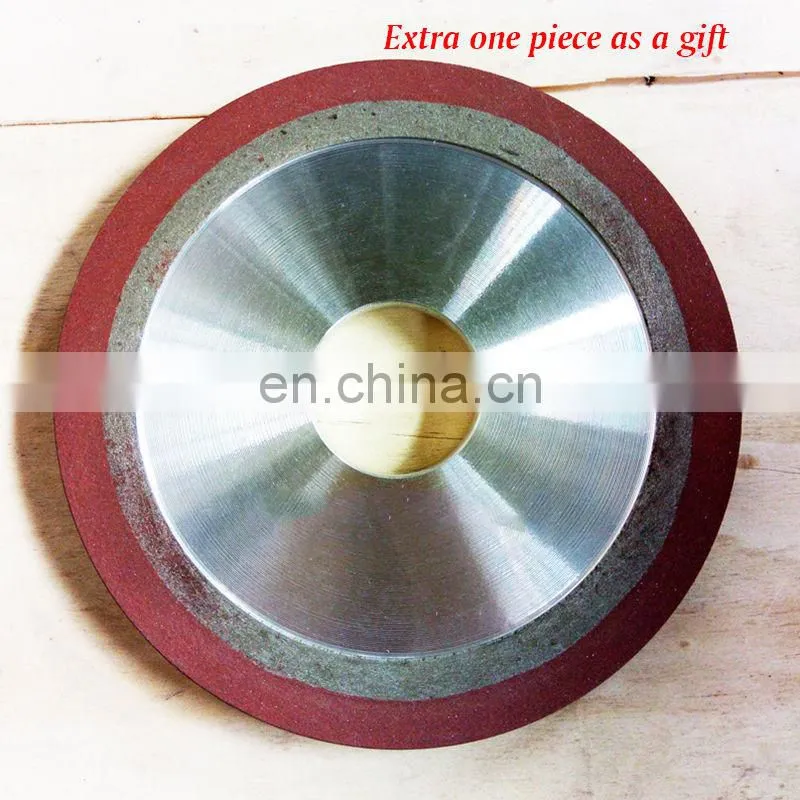

| Diamond wheel | 125*10*32*2 mm |
| Packing size | 720*430*500 mm |
| Grinding range | 80-700 mm |
| Angle | Left 30° Right 40° |
| Adjust angle | -20° --- +20 ° |
| Gorss weight | 30-32 kgs |
Q1:How could we know the quality, if we want to order your product?
A1:Please just test it with a very small trial order, then you will know the quality by your
own eyes. Our company is one of the most professional manufacturers in diamond toolsbusiness
for more than 20 years.If the market in your area is complete new for our brade's product, a small trial
order for testing will be necessary.
Q2: How can you guarantee the quality?
A2: We employ several experienced inspectors to strictly monitor the whole production process: raw material
—production—finished products-packing. There are appointed staff responsible for each procedure.
Q3:What could we do if we find your goods are not in good performance?
A3:Give us detailed report as feedback.
Analyze the possible reasons.
Try to find a way to solve the problem.
If the problem caused by our products quality itself, We will make the compensation according to your actual loss.
Q4: What payment terms do you have?
A4: For small orders, we usually prefer Paypal and Western Union; for items that are not in stock,
we charge 30% deposit and will ship goods out before the 70% balance are received.
Q5:What about the shipping ways?
A5:We will choose the sea transportation,and if necessary,
we will choose the express like DHL,UPS,ect. or other shipping ways according
to your requirement.
