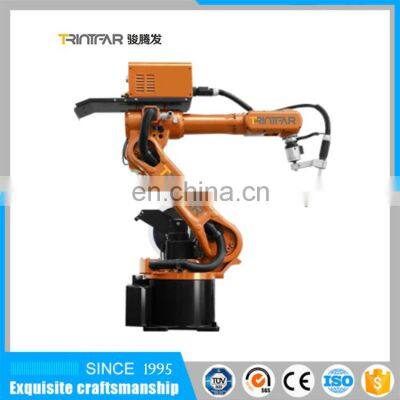

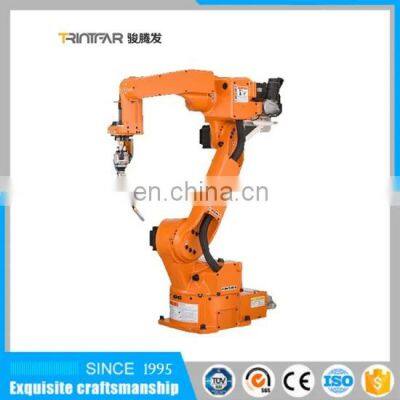

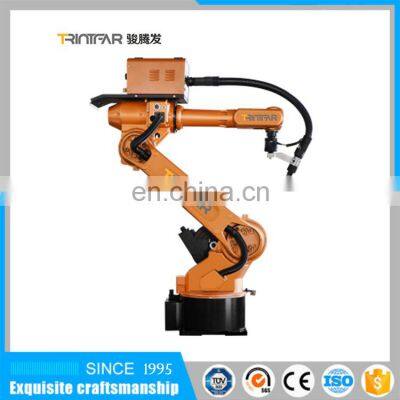

Fast Efficient Flexible Manipulator 6 Axis Robot Robot Welding Arm
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2006
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Industrial Production Line Equipment Fast Robotic Industrial Robot ArmNegotiableMOQ: 1 -
China Economical 6 Axis High-effective Programmable Robot Arm for Industrial Welding or TeachingNegotiableMOQ: 1
-
China Hot Sale Robotic Welding Arm Supply Mechanical Robot Arm With CENegotiableMOQ: 1
-
CNC Precisie and Efficient Robot Arm Industrial Robot Arm 6 Axis Industrial Robot ArmNegotiableMOQ: 1
-
High Precision 6 Axis Industrial Robots Industrial Manipulator CNC Robot Arm for Stamping With CE CertificateNegotiableMOQ: 1
Product Description
The welding robot has high accuracy and high speed, which greatly improves work efficiency. The control system is sensitive and reliable, with few failures, and convenient operation and maintenance. The start, stop, pause, emergency stop, etc. of the system can all be performed through the teach pendant. In addition, the operating status of the system and system alarms can be displayed on the teach pendant.
It is easy to start the arc, the arc is soft and stable, the metal deposition rate is high, and the weld seam is formed well.
1.Excellent performance, high main CPU processing capacity, speed up
2.More precise control of the robot's motion trajectory, so that the robot runs quickly and smoothly
3.Equipped with multiple interfaces, more convenient for external equipment and data connection
4.Wide temperature and humidity adaptability, easy maintenanceSpecification
Model | RA-100 | ||
Payload | 6 KG | ||
Max Working Radius | 1405 mm | ||
Arm Length | 2391 mm | ||
Number of Axis | 6 | ||
Max speed | Axis1 | 158 °/S | |
Axis2 | 145°/S | ||
Axis3 | 140 °/S | ||
Axis4 | 217 °/S | ||
Axis5 | 172 °/S | ||
Axis6 | 500 °/S | ||
Max Operation Area | Axis1 | ±170° | |
Axis2 | +80° ~150° | ||
Axis3 | +95° ~ -72° | ||
Axis4 | ±170° | ||
Axis5 | ±122° | ||
Axis6 | ±220° | ||
Weight | 300kg | ||
Position Repeatability | 0.05mm | ||
Working temperature | 0-45 ℃ | ||
