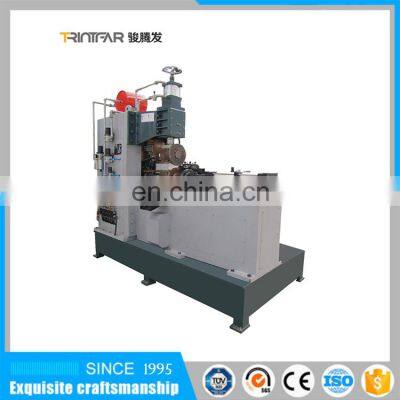

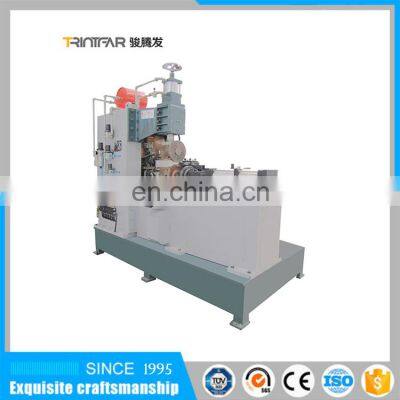

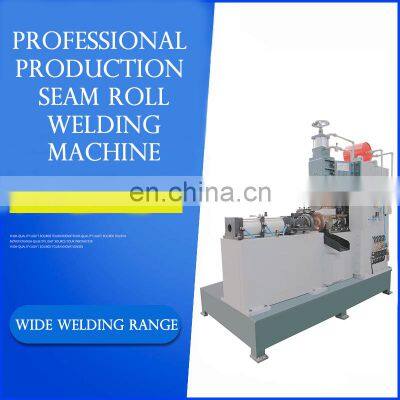

Metal Seam Welder Stitch Welding Machine For Pipe Welding Machine
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
China welding machine manufacture good quality stainless steel CNC automatic rolling seam welding machine
-
automatic air seam welding machine price
-
pneumatic projection spot welding machine steel wire mesh welding machine
-
Pneumatic AC Projection Spot Welding Machine Multiple types of multifunctional spot welder
-
Cookware Aluminium Sheet Capacitor Discharge Copper Aluminium Good Price Resistance Projection Welding Machine Price
-
stainless steel foot Projection welding machine
Product Description
Product Description
Feature
The power supply unit's duty are balanced. Three phase power make MD frequency inverter more adaptable in winding and pressure
of wire.
More preaser, faster current control, can analyse parameters more and faster compare with power frequency system.
Faster to set up current, the speed is 20folds quicker than traditional technic
Process more reliable: the majority of the application of solder DC welding metal effect will be even better.
Reduce operating costs, including energy savings each and every point of welding as well as shortening the welding cycle.
Save energy :especially suitable for welding thick workpieces and high-conductivity metal .such as aluminum and galvanized
steel sheet.etc.
of wire.
More preaser, faster current control, can analyse parameters more and faster compare with power frequency system.
Faster to set up current, the speed is 20folds quicker than traditional technic
Process more reliable: the majority of the application of solder DC welding metal effect will be even better.
Reduce operating costs, including energy savings each and every point of welding as well as shortening the welding cycle.
Save energy :especially suitable for welding thick workpieces and high-conductivity metal .such as aluminum and galvanized
steel sheet.etc.
Specification
Item Model | Maximum Short Current KA | Rated Duty Cycle % | Secondary Voilage V | Rated Power KVA | Electrode Pressure N | Electrode Stroke mm | Cooling Water Lmim |
FM-20 | 20 | 50 | ≈9.8 | ≤50 | 4700 | 80 | 24 |
FM-25 | 25 | 50 | ≈9.8 | ≤70 | 4700 | 80 | 24 |
FM-40 | 40 | 50 | ≈11.6 | ≤120 | 7300 | 80 | 30 |
FM-60 | 60 | 50 | ≈11.6 | ≤160 | 12000/18000 | 100 | 50 |
FM-80 | 80 | 50 | ≈11.6 | ≤240 | 12000/18000 | 100 | 50 |
FM-120 | 120 | 50 | ≈11.6 | ≤300 | 18000 | 100 | 60 |
