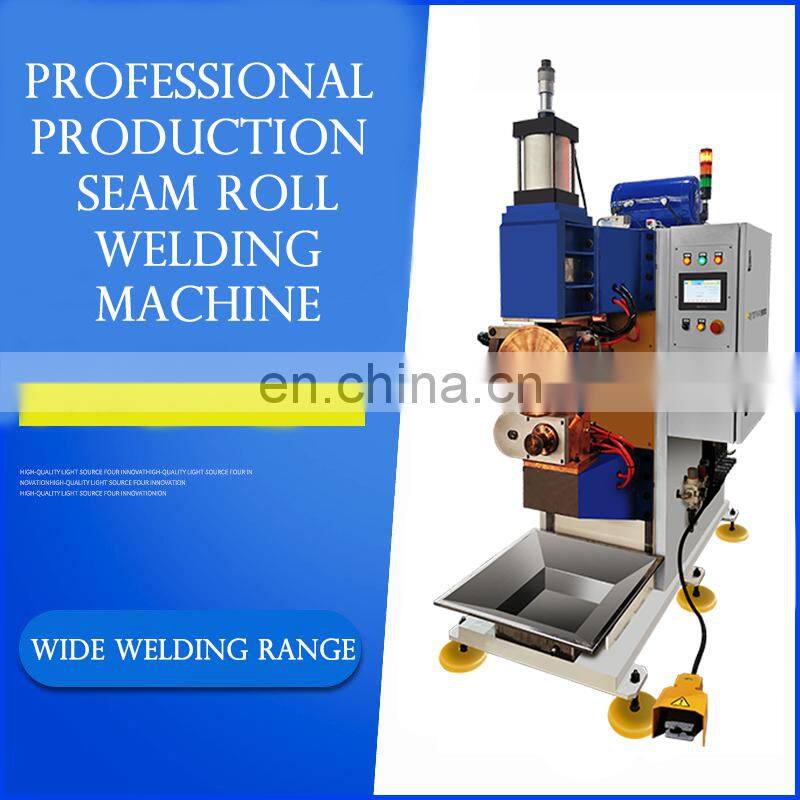

Full Automatic Drop in Sink Rolling Resistance Seam Welding Machine Welding Machine Manufacturer
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
High Frequency Welding Machine Automatic Industrial Seam Welding Machine
-
High Quality Seam Welding Machine Equipment
-
China Manufacturing High Speed Seam Welder Seam Welding Machine
-
Fuel Tank Automatic Price Inverter Steel Drum Poultry Cage Mesh Longitudinal Seam Welding Machine
-
Straight Seam Automatic Solar Water Heater Tank Seam Welding Machine
-
Metal Seam Welder Stitch Welding Machine For Pipe Welding Machine
Product Description
Product Description
Feature
The power supply unit's duty are balanced. Three phase power make MD frequency inverter more adaptable in winding and pressure
of wire.
More preaser, faster current control, can analyse parameters more and faster compare with power frequency system.
Faster to set up current, the speed is 20folds quicker than traditional technic
Process more reliable: the majority of the application of solder DC welding metal effect will be even better.
Reduce operating costs, including energy savings each and every point of welding as well as shortening the welding cycle.
Save energy :especially suitable for welding thick workpieces and high-conductivity metal .such as aluminum and galvanized
steel sheet.etc.
of wire.
More preaser, faster current control, can analyse parameters more and faster compare with power frequency system.
Faster to set up current, the speed is 20folds quicker than traditional technic
Process more reliable: the majority of the application of solder DC welding metal effect will be even better.
Reduce operating costs, including energy savings each and every point of welding as well as shortening the welding cycle.
Save energy :especially suitable for welding thick workpieces and high-conductivity metal .such as aluminum and galvanized
steel sheet.etc.
Specification
Item Model | Maximum Short Current KA | Rated Duty Cycle % | Secondary Voilage V | Rated Power KVA | Electrode Pressure N | Electrode Stroke mm | Cooling Water Lmim |
FM-20 | 20 | 50 | ≈9.8 | ≤50 | 4700 | 80 | 24 |
FM-25 | 25 | 50 | ≈9.8 | ≤70 | 4700 | 80 | 24 |
FM-40 | 40 | 50 | ≈11.6 | ≤120 | 7300 | 80 | 30 |
FM-60 | 60 | 50 | ≈11.6 | ≤160 | 12000/18000 | 100 | 50 |
FM-80 | 80 | 50 | ≈11.6 | ≤240 | 12000/18000 | 100 | 50 |
FM-120 | 120 | 50 | ≈11.6 | ≤300 | 18000 | 100 | 60 |
