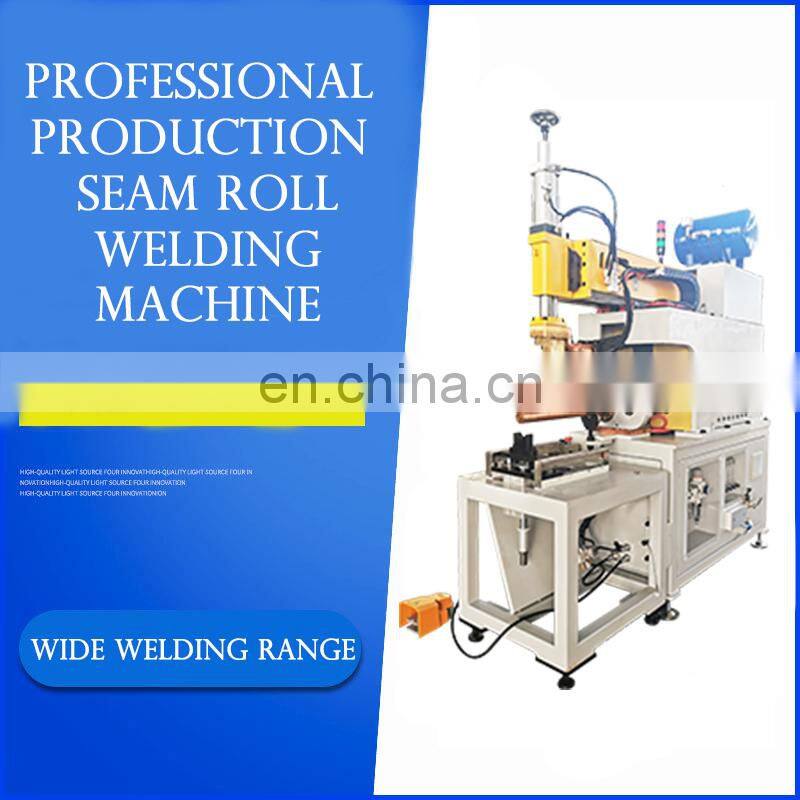

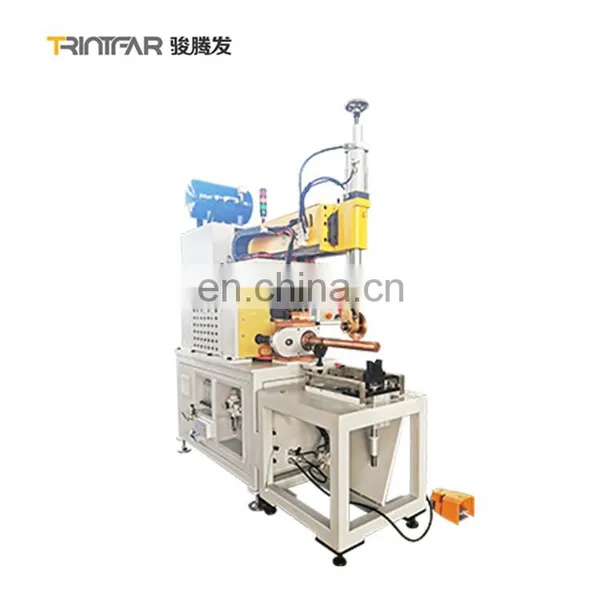

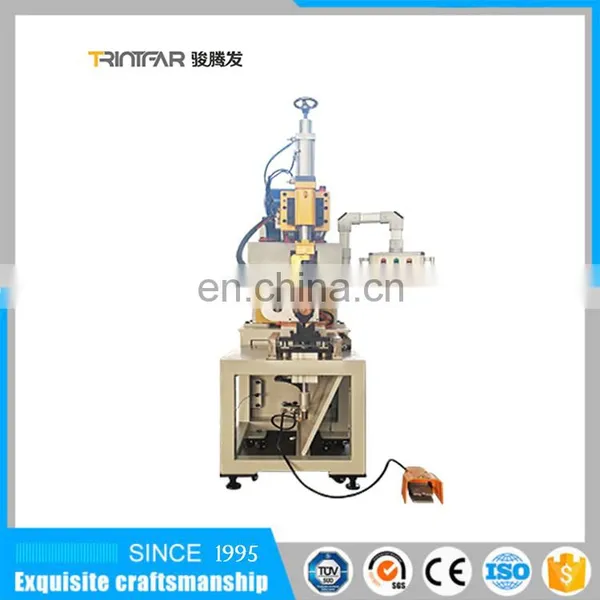

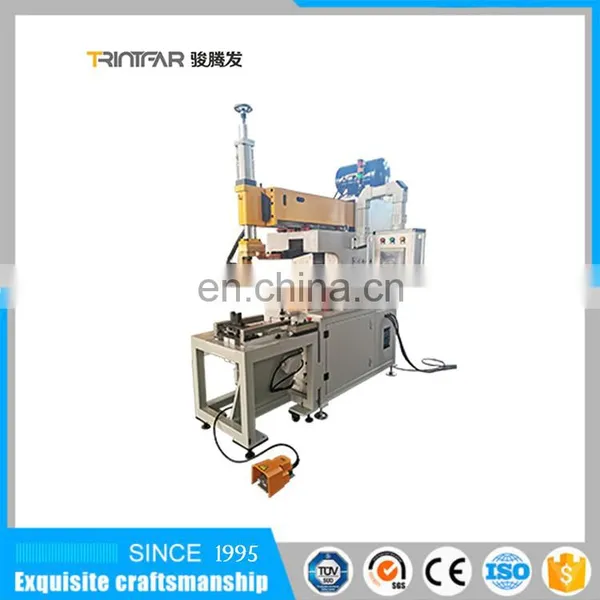

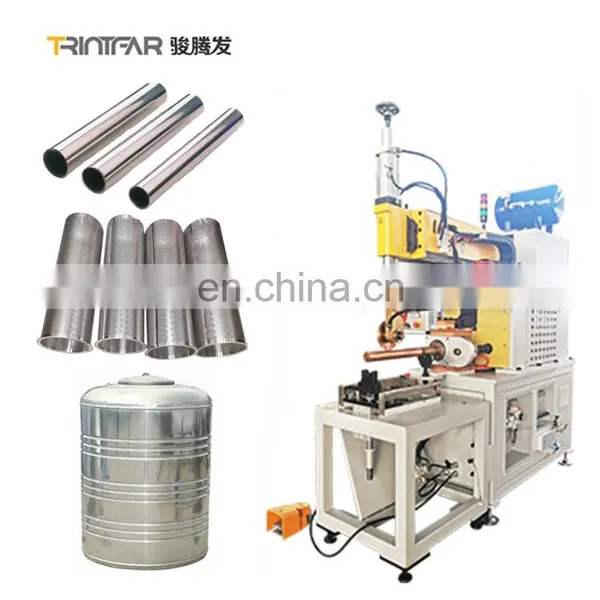

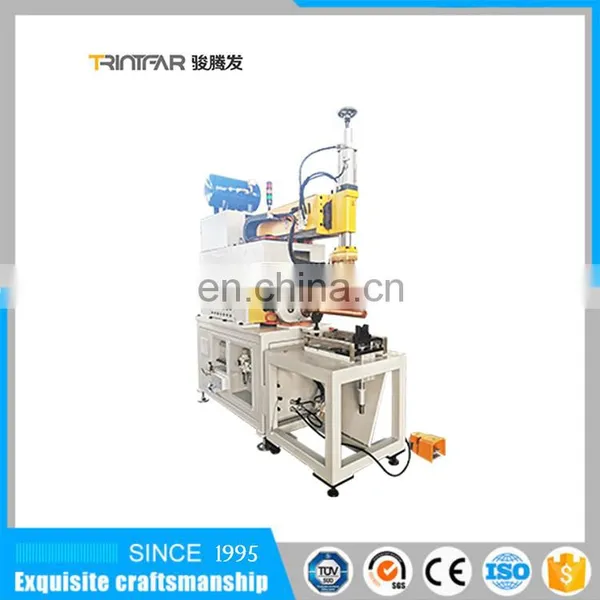

Longitudinal Resistance Seam Welder Machine Seam Welding Equipment
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Automatic Butt Roll Seam Welding Machine Automatic Tank Seam Welder Machine
-
Equipment Automatic Metal Inverter Seam Spot Cold Welding Machine
-
Motorcycles Fuel Tank Manufacturing Seam Welding Machine Seam Welder Welders
-
Capacitor Discharge Door Panels Seam Welding Machine
-
ac Pneumatic Pedal Seam Welding Machine
-
Fuel Tank Steel Mesh Seam Inverter Smart Welding Machine Price Welder
Product Description
Product Description
Feature
The power supply unit's duty are balanced. Three phase power make MD frequency inverter more adaptable in winding and pressure
of wire.
More preaser, faster current control, can analyse parameters more and faster compare with power frequency system.
Faster to set up current, the speed is 20folds quicker than traditional technic
Process more reliable: the majority of the application of solder DC welding metal effect will be even better.
Reduce operating costs, including energy savings each and every point of welding as well as shortening the welding cycle.
Save energy :especially suitable for welding thick workpieces and high-conductivity metal .such as aluminum and galvanized
steel sheet.etc.
of wire.
More preaser, faster current control, can analyse parameters more and faster compare with power frequency system.
Faster to set up current, the speed is 20folds quicker than traditional technic
Process more reliable: the majority of the application of solder DC welding metal effect will be even better.
Reduce operating costs, including energy savings each and every point of welding as well as shortening the welding cycle.
Save energy :especially suitable for welding thick workpieces and high-conductivity metal .such as aluminum and galvanized
steel sheet.etc.
Specification
Item Model | Maximum Short Current KA | Rated Duty Cycle % | Secondary Voilage V | Rated Power KVA | Electrode Pressure N | Electrode Stroke mm | Cooling Water Lmim |
FM-20 | 20 | 50 | ≈9.8 | ≤50 | 4700 | 80 | 24 |
FM-25 | 25 | 50 | ≈9.8 | ≤70 | 4700 | 80 | 24 |
FM-40 | 40 | 50 | ≈11.6 | ≤120 | 7300 | 80 | 30 |
FM-60 | 60 | 50 | ≈11.6 | ≤160 | 12000/18000 | 100 | 50 |
FM-80 | 80 | 50 | ≈11.6 | ≤240 | 12000/18000 | 100 | 50 |
FM-120 | 120 | 50 | ≈11.6 | ≤300 | 18000 | 100 | 60 |
