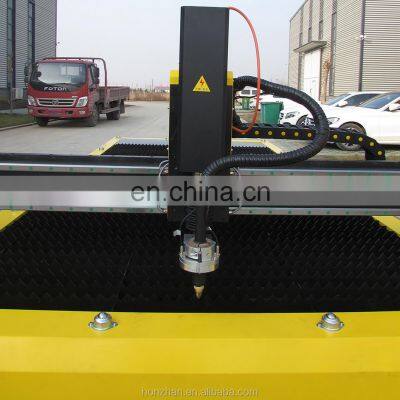

Cheap Plasma Cutter 1530 Cnc Plasma Cutting Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2015
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Selling Carbon Steel Stainless Steel Cutting Plasma Cutter 1530 Cnc Plasma Cutting MachineNegotiableMOQ: 1 -
9512 Table Top Small Drilling and Milling Machine Multifunctional Machine Manual Vertical Milling MachineNegotiableMOQ: 1
-
Professional Supplier Drill Water Milling Drilling And Tapping Machine With Water Jet CuttingNegotiableMOQ: 1
-
Factory Price Vertical Drilling and Milling Machining Center CNC Milling MachineNegotiableMOQ: 1
-
Wholesale Cheap Price 4 Axis High Speed Drilling And Tapping Machine For Milling With The Fourth AxisNegotiableMOQ: 1
Plasma cutting machine is a cnc machine used for cutting all kinds of metals. We also call it plasma cutter, cnc plasma table,
metal plasma cutter, cnc metal cutter, 4x8ft plasma table, 5x10ft plasma table. We usually equip it with Chinese Huayuan or USA
Hypertherm plasma source to cut 0~30mm thickness metal.
If more than 30mm thickness, we advise use plasma and flame cutting machine, to add flame torch to cut thicker metals.
metal plasma cutter, cnc metal cutter, 4x8ft plasma table, 5x10ft plasma table. We usually equip it with Chinese Huayuan or USA
Hypertherm plasma source to cut 0~30mm thickness metal.
If more than 30mm thickness, we advise use plasma and flame cutting machine, to add flame torch to cut thicker metals.
Product Application
1. Applicable materials:
Honzhan Plasma Cutting Machine is suitable for carbon steel, copper, iron, aluminum and galvanized sheet, titanium sheet,
stainless steel and other metal sheet.
Application industry:
it is widely used for processing shells of machinery and electronic products, advertising signs, crafts, iron garden, car
manufacture, boat building, electrical accessories, board cutting.
2. Machine features:
1). Heavy machine bed after high temperature treatment can keep running speed and cutting precision.
2). Chinese Huayuan plasma source have good cutting quality and long lifetime, optional USA Hypertherm.
3). plasma cutting for aluminum, stainless steel use STARFIRE control system with FastCAM software or StarCam software with
nesting function can auto save material easily, large capacity storing function, convenient to read and process.
4). If cut thick metal, cutting head will have cooling system, which can quickly cool surface of material to avoid burr and smoke.
5). Overall Stepper motor with high precision rack and pinion, to ensure the cnc plasma cutting machine has small noise, smooth,
precise coordinates of the mobile performance.
6). Perfect software compatibility, such as Ucancam, Type 3, ArtCum etc.
Advantage of HONZHAN Plasma Cutting Machine:
1). cutting faster, more accurate control, the cutting surface is more smooth, no glitches, no black; cutting holes in high
quality
2). Stability and reliability for light path system and control system
3). Humanizing design, convenient operation
4). High performance price ratio, low operating cost
5). High cutting efficiency and quality, no noisy. Small heat influence area, cutting seam smooth and no deformation, post
treatment is not needed.
6). The machine adopt Beijing STARFIRE plasma control system, standard high sensitivity arc voltage device.
7). Machine use Leadshine drive system, high precision stepper motor and driver, ensure the efficiency and accuracy, increasing
the stability and reliability greatly.
8). Cable: Imported German cable, custom-made imported materials for the production of wire and cable, maximizing the service life
of the machine.
Honzhan Plasma Cutting Machine is suitable for carbon steel, copper, iron, aluminum and galvanized sheet, titanium sheet,
stainless steel and other metal sheet.
Application industry:
it is widely used for processing shells of machinery and electronic products, advertising signs, crafts, iron garden, car
manufacture, boat building, electrical accessories, board cutting.
2. Machine features:
1). Heavy machine bed after high temperature treatment can keep running speed and cutting precision.
2). Chinese Huayuan plasma source have good cutting quality and long lifetime, optional USA Hypertherm.
3). plasma cutting for aluminum, stainless steel use STARFIRE control system with FastCAM software or StarCam software with
nesting function can auto save material easily, large capacity storing function, convenient to read and process.
4). If cut thick metal, cutting head will have cooling system, which can quickly cool surface of material to avoid burr and smoke.
5). Overall Stepper motor with high precision rack and pinion, to ensure the cnc plasma cutting machine has small noise, smooth,
precise coordinates of the mobile performance.
6). Perfect software compatibility, such as Ucancam, Type 3, ArtCum etc.
Advantage of HONZHAN Plasma Cutting Machine:
1). cutting faster, more accurate control, the cutting surface is more smooth, no glitches, no black; cutting holes in high
quality
2). Stability and reliability for light path system and control system
3). Humanizing design, convenient operation
4). High performance price ratio, low operating cost
5). High cutting efficiency and quality, no noisy. Small heat influence area, cutting seam smooth and no deformation, post
treatment is not needed.
6). The machine adopt Beijing STARFIRE plasma control system, standard high sensitivity arc voltage device.
7). Machine use Leadshine drive system, high precision stepper motor and driver, ensure the efficiency and accuracy, increasing
the stability and reliability greatly.
8). Cable: Imported German cable, custom-made imported materials for the production of wire and cable, maximizing the service life
of the machine.
Working size (X Y axis) |
1500*3000mm |
Power source |
Hypertherm / Huayuan plasma power supply |
Cut materials thickness |
0-30mm |
Travelling speed |
0-20000mm/min(MAX) |
Working speed |
0-16000mm/min(MAX) |
Plasma Unit Max |
5.5KW |
Positioning accuracy |
±0.3mm |
Working voltage |
AC380V/3PH/50HZ |
Plasma current |
63A |
Plasma power source |
According to materials cutting thickness, generally use 100A power source |
Arc |
Untouched arc striking |
Software support |
FASTCAM plasma software |
Files transfer |
USB interface |
Instruction format |
G code |
Work Countertop |
Serrate working platform |
Working pressure |
0.3-0.7Mpa |
Machine architecture |
One-step molding for stress-relief fine milling, six-legged bed, two funnels under the bed, with trays. The quartet anti-interference independent cabinet has stable structure, high accuracy and small deformation. |
Drive system |
XYZ: stepper motor and DMA860 drive |
Gear rack |
1.25M alloy hard toothed helical rack + alloy hard toothed helical gear |
Linear guide |
20 linear guide rail |

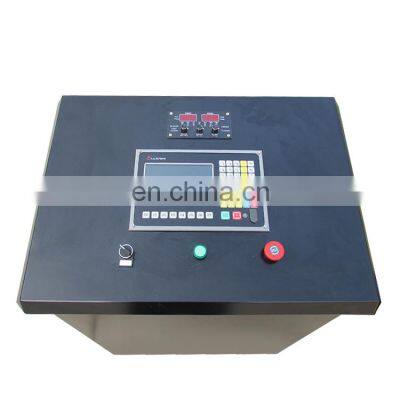

operating system |
Beijing STARFIRE 2100 |
Arc voltage increase |
Beijing STARFIRE SF-HC25K |
Lifting body |
Lifting body stroke 130 with anti-collision body |
Oiler |
Lubrication system with oil pump |
Fan |
Standard equipped with two fans 220V Single Phase 50HZ, each with 4 meters pipe |
Power cable |
Custom high-speed shielded cable, Anti-interference and anti-break |
Security system |
Overtravel protection / safety cover / electrical protection, etc. |
Quality Control |
24-hour machine working inspection experiment before delivery |
Machine dimension(L*W*H) |
3000*2520*1540mm |
Machine Weight NET./GW |
1500/1700KG |
*For different industries, HONZHAN Plasma Cutting Machine can be equipped with different configurations to meet the requirements of different users.
Heavy-duty body, multi-column support
Structural distribution of mechanical science
Equipped with professional pipe smoking system
Use1.25mm rack and gear
Rack transmission, higher precision
High flexibility wire
Strong output signal,strong anti-interference ability
The machine delivers a 16G USB flash drive
With detailed operation video tutorials included
