XK200 Mini CNC Indexing Drilling Machine Four Axis CNC Milling Machine Table Type
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2015
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
XK300 Small CNC Milling Machine Multi-functional CNC Drilling and Milling MachineNegotiableMOQ: 1 -
CK140 Small CNC Machine Tool CNC Lathe Desktop Teaching Machine Tool Table TypeNegotiableMOQ: 1
-
CK140sp Desktop CNC Lathe Desktop Teaching Machine Small CNC MachineNegotiableMOQ: 1
-
0618 Small Manual Lathe Multi-function Lathe Mini Machine Tool Maker Tool MachineNegotiableMOQ: 1
-
MT9510 Small Manual Lathe Multi-function Lathe Mini Machine Tool Maker Tool MachineNegotiableMOQ: 1
Product Description
The samples show

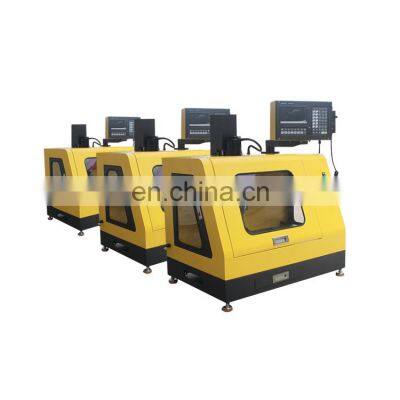

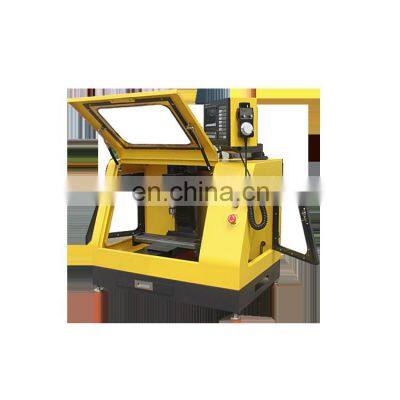

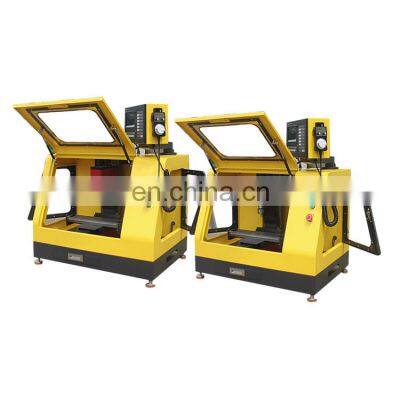

The machine display
Specification
Main performance features |
Fully enclosed and transparent plexiglass structure, cast with high quality cast iron material, using high-precision grinding ball screw; Equipped with industrial grade 4-axis CNC linkage system; Implement international standard G code programming, support M code and S code, compatible with FANUC, Mitsubishi G code and a variety of CAD/CAM software (MasterCAM, UG, CAXA and other software programming); Main processing materials: copper, aluminum alloy, PVC plastic, plexiglass, etc |
precision |
Repeat positioning accuracy: 0.02mm System resolution: 0.001mm Rotation accuracy: +-1" |
XYZA axis stroke |
Horizontal (X axis) : 210mm Longitudinal (Y-axis) : 95mm Vertical (Z axis) : 200mm Rotation (A-axis) : 360 degrees |
Communication interface |
Ethernet network port, USB port, COM port and other communication modes |
Programming software |
MasterCAM, UG, CAXA, etc |
Spindle speed |
100-3500 RPM (CNC system G code control speed) |
Table size |
400 x 90 mm |
Dividing head speed range |
0-50RPM |
The maximum clamping outside diameter of indexing head |
60mm |
Reduction ratio |
100:1. |
Top and tail seat travel |
50mm |
Maximum clamping bit diameter |
13mm |
Maximum clamping cutter diameter |
60mm |
T-slot size/quantity |
12 mm/3 |
The spindle taper |
MT3 |
Electronic hand wheel |
Electronic handwheel with 4 axis and 3 gears |
Numerical control system |
Industrial grade 4 axis CNC linkage system |
The output power |
600W |
Use the power supply |
AC220V/50Hz |
Net/gross weight |
145/160kg |
Installation dimensions |
845 * 580 * 850 mm |
Packing size |
950 * 680 * 950 mm |
Random accessories |
Fourth axis, top tail seat, 1 drill collet, 1 drill collet key, 1 drill collet locking screw, 1 set of T-shaped nut, 1 set of hex key, 1 set of double-end spanner, 1 oil can, 2 hook head spanner, 1 push rod, 1 fuse, 1 flat pliers, 1 drill bit, 1 single head spanner, 2 sets of instructions, machine tool LED lighting, machine tool hardware instructions, CNC system programming instructions, CNC system operation instructions |
Product features and advantages
1, suitable for campus makers, innovation studio technology production processing parts, practical integration of professional CNC training, enterprise research units processing small parts. |
2, the configuration of professional-grade industrial panel NUMERICAL control system (machine with panel system, do not need another computer), no longer worry about machine failure, more safe, more stable, more durable; The system is equipped with remote operating software, which can be networked to remotely manage and operate multiple machine tools. With graphics simulation function, perfect self-diagnosis function, real-time display abnormal alarm immediately, ensure operation safety, with electronic handwheel, convenient manual operation, can be equipped with the fourth axis CNC dividing head, more powerful, although the machine tool is small, all the five organs. |
3, use method is simple and professional combination, namely satisfy beginners introduction to numerical control population, and meet the professional learning CNC operation, can be directly with third party graphical programming software directly to G code program, can also be manual programming, processing materials widely (iron, copper, aluminum, plastic, organic glass and other materials), machining precision is high, the machine stable and durable. |
4, transparent plexiglass and metal sheet metal closed structure, using 220 volts of voltage, improve the safety and observation of use, the use of selected high-quality cast iron material casting, the use of high-precision grinding ball screw, to ensure machine processing accuracy, covers an area of 0.5 square meters, has a strong actual processing capacity. |
5, ISO standard G code programming, support M code and S code, fully compatible with FANUC, Mitsubishi G code and a variety of CAD/CAM software (MasterCAM, UG, CAXA and other software programming), graphic programming. |
Packing & Delivery
product certification
Company Profile
Warranty and after-sales service
1.two years warranty for machine
2.We have a professional English after-sales engineer team,and supply online service 24 hours by Whatsapp,Skype, and so on. or by phone if urgently.
3.We will provide you with a detailed video tutorial to teach you how to use the machine .
4.lf you need installment support,we can arrange our engineer fly to your place to help
FAQ
Q: Do you support customized manufacturing?
A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to
quantity.10-20 days if customized manufacturing.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with sample price.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment.
