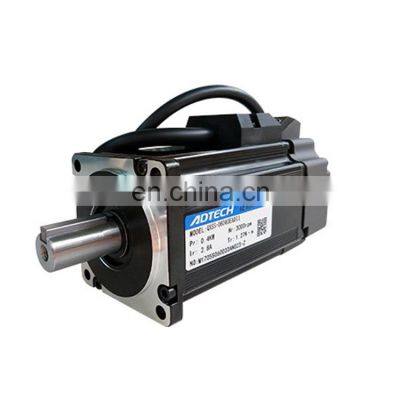

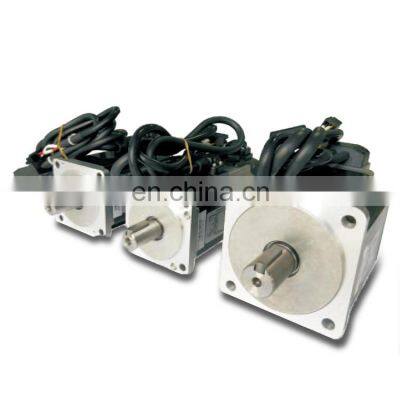

Manufacturer QXS Series Servo Motor Power Range 100w-3.8kw
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2015
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cheap Factory Price For Wrapping Industrial Sewing Machine Motor Circuit Board Servo EngineNegotiableMOQ: 1 -
Quality Choice Kit Motor Drive 80N Series 730W AC Single-phase Servo EngineNegotiableMOQ: 1
-
Factory Cheap Price One Set Sakura Sewing Motor Industrial Three-phase Waterproof Servo EngineNegotiableMOQ: 1
-
Good Quality For Spindle Custom Servomotor Ac Motor AC Servo Motor 130ST-M06025 Servo EngineNegotiableMOQ: 1
-
Top Selling Easy 7.5A OF 130ST-M07725 Leadshine Direct Drive Motor Sewing Servo EngineNegotiableMOQ: 1

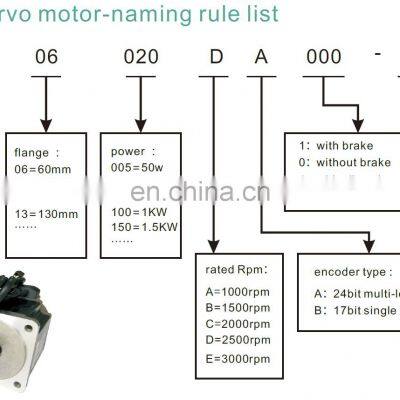

QXS series servo motor-naming rule list
QXSS motor series overall dimension drawing [130-180 flange]（unit：mm）
QXSH series motor overall dimension drawing [40-80 flange]（unit：mm）
QXSS series motor dimension list (unit：mm)
QXSH series motor dimension list (unit：mm)
QXSH series motor overall dimension drawing [130-180 flange]（unit：mm）
QXSM series motor dimensions (unit: mm)
QXSM series motor size table (unit: mm)
Motor wiring definition
Definition of encoder signal wiring when using QXS (40-80mm flange) motor
Definition of encoder signal wiring when using QXS (40-80mm flange) motor
Terminal
symbol
|
signal |
colour |
1 |
SD+ |
blue |
2 |
SD- |
purple |
3 |
BAT+ |
Orange |
6 |
EX5V |
White |
7 |
EX0V |
black |
8 |
BAT- |
Brown |
9 |
Shielded wire |
Shielded wire |
Definition of power cable wiring when using QXS (40-80mm flange) motor
Terminal symbol |
Signal |
Color |
1 |
U |
Red |
2 |
V |
White |
3 |
W |
Black |
4 |
PE |
Green/Yellow |
Definition of brake wiring when using QXS (40-80mm flange) motor
Terminal symbol |
Signal |
Color |
1 |
24+ |
Yellow |
2 |
24- |
Yellow |
Definition of encoder signal wiring when using QXS (130-180mm flange) motor
Terminal symbol |
Signal |
Color |
K |
SD+ |
blue |
L |
SD |
Purple |
T |
BAT+ |
Orange |
H |
EX5V |
White |
G |
EX0V |
Black |
S |
BAT |
Brown |
J |
Shielding Cables |
Shielding Cables |
Definition of power cable wiring when using QXS (130-180mm flange) motor
Terminal |
symbol |
Signal Color |
A |
U |
Red |
B |
V |
White |
C |
W |
Black |
D |
PE |
Green/Yellow |
Definition of power cable wiring (with brake) when using QXS (130-180mm flange) motor
Terminal symbol |
Signal |
Color |
F |
U |
Red |
I |
V |
White |
B |
W |
Black |
E-D |
PE |
Green/Yellow |
G |
Brake
|
±24V No polarity |
H |
