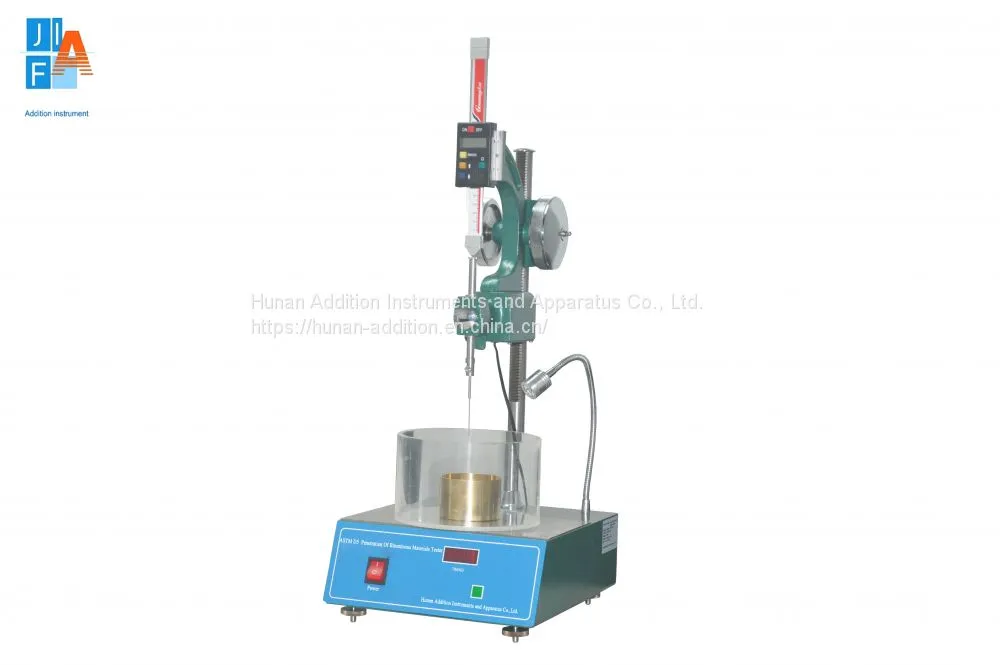

Penetration Of Bituminous Materials Tester ASTM D5
Product Model: JF4509b
Product Introduction
This instrument is suitable for detecting the penetration of solid and semi-solid asphalt materials with a penetration degree of less than 350, and is also suitable for asphalt materials with a penetration degree of 350~500.
Technical Parameter
1. Applicable standards: ASTM D5, ISO3997, DIN52010, NFT66004, GB/T4509
2. Time: ≤60s
3. Needle and needle bar: 50±0.05g
4. Weight mass: 50±0.05g 100±0.05g
5. Measured value:
6. Circulation mode: self-priming pump circulation (optional circulating water bath)
7. Working power supply: AC220V±10% 50HZ
8. Power of the whole machine: 1200W
9. Instrument size: 310*250*550mm
10. Net weight: 12KG
Main Feature
1. The instrument includes an electric head and a manual gear, which can adjust the position of the cone and plate on the asphalt sample:
2. Digital display results, independent electronic timer;
3. A temperature-controlled water bath is optional, and the penetration test can be performed in water at 25°C through the connection tank and the conversion plate.
4. Solid flat aluminum plate and central equipment, spirit level and positioning screws;
5. The range of motion of the decoder and the penetration of 50mm;
6. Electronic programming timer can set the penetration time;
7. The probe conforms to ASTM/IP, with a total weight of 2.5 g;
8. 1 weight 50 g, 1 weight 100 g;
