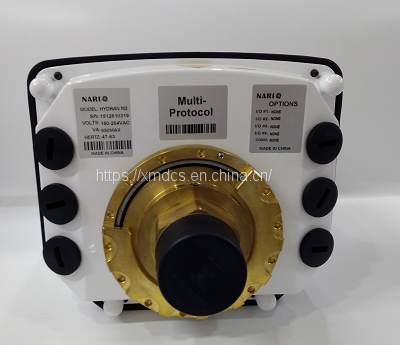

Hydran M2 Transformer Monitoring Device Hydran M2-X

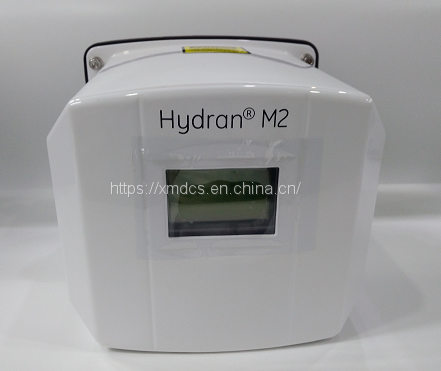

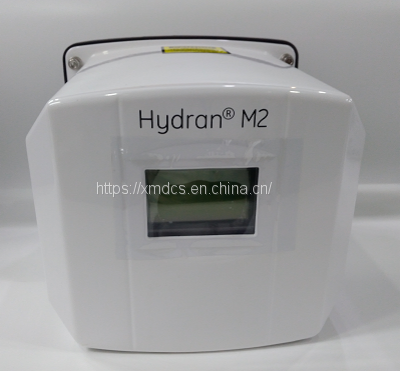

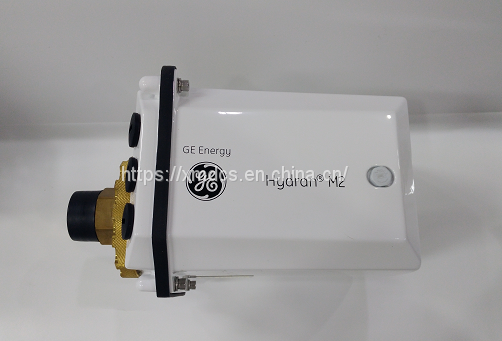

The Hydran M2 is a compact permanently mounted on-line transformer monitoring device that will alert personnel to developing fault conditions. It continuously monitors a composite value of various fault gases (in ppm) or a Hydrogen gas only value (depending on sensor purchased). In addition it tracks moisture in oil (reading in %RH and ppm).

With additional sensors added, the Hydran M2 can also compute transformer mathematical models based on IEEE® and IEC® standards to provide further information on the performance of the transformer.

Xiamen Xiongba Electronic Commerce Co. LTD

FROM：Mr. Wei

E-Mail：2322181769@qq.com

TEL/WeChat:15396237607

• Real-time Hydrogen or composite fault gas monitoring system

• Moisture in oil measurement

• Ability to integrate additional sensors (load, oil temperature, …)

• Option to process transformer mathematical models based on IEC/IEEE standards

• Easy to install on a single valve.

• No moving parts, no pumps and no extra piping required.

• No field calibration required.

• Local and remote alarms set at pre defined levels.

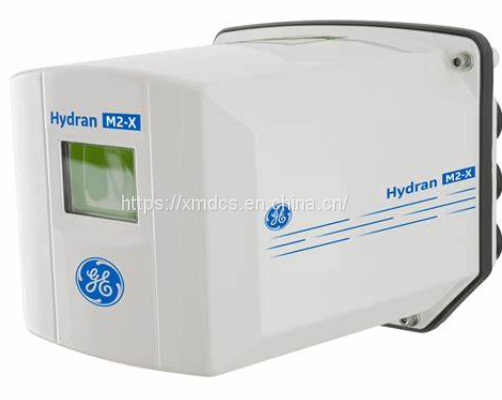

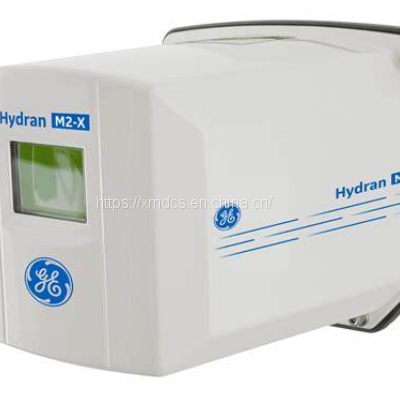

The Hydran M2-X is the next generation of the field-proven family of Hydran DGA monitoring solutions, providing continuous monitoring of gas and moisture levels to alert users of developing faults and minimize the risk of unplanned outages. The M2-X builds on GE’s strong domain expertise to deliver an optimized, low maintenance monitoring device with extended sensor life.

The Hydran M2-X is also available in a UL certified, HazLoc version (part number: M2-X-HZ) for installation on transformers located in hazardous locations designated as Class I, Division 2

The Hydran sensors are available as a traditional Hydran composite gas (H₂, CO, C₂H₂, C₂H₄) sensor or a discrete Hydrogen only (H₂) sensor. In addition, it tracks moisture in oil (reading in %RH and ppm) and is compatible with various transformer oil types (standard mineral insulating oils and newer natural and synthetic ester based fluids).
