Silver Coated Copper Power Price

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

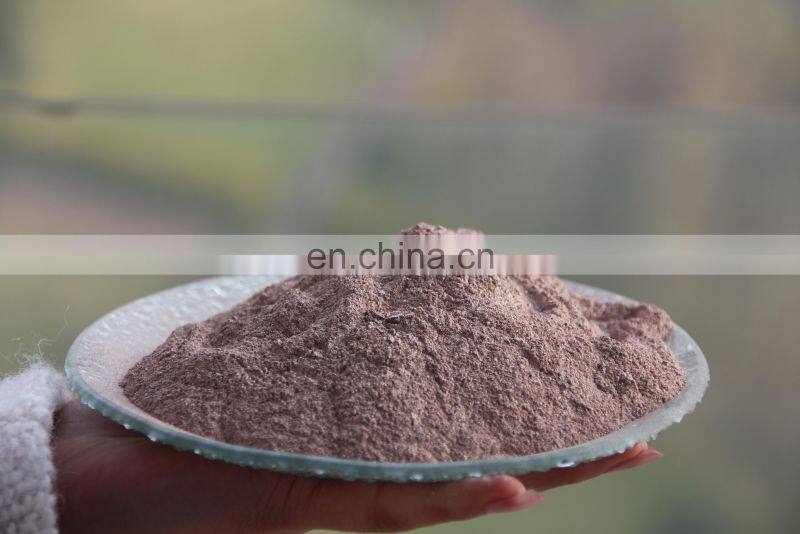

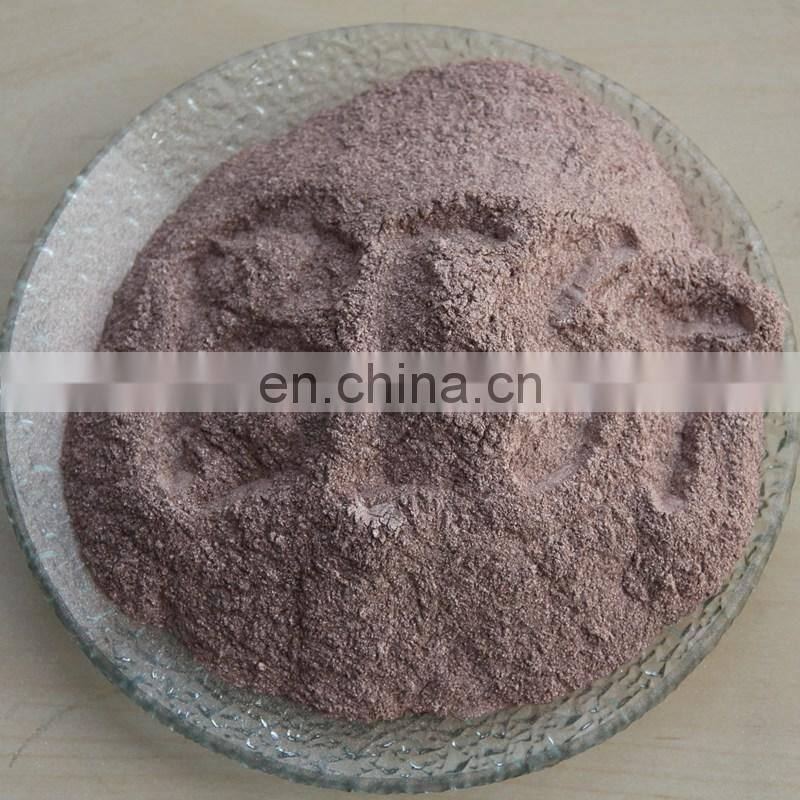

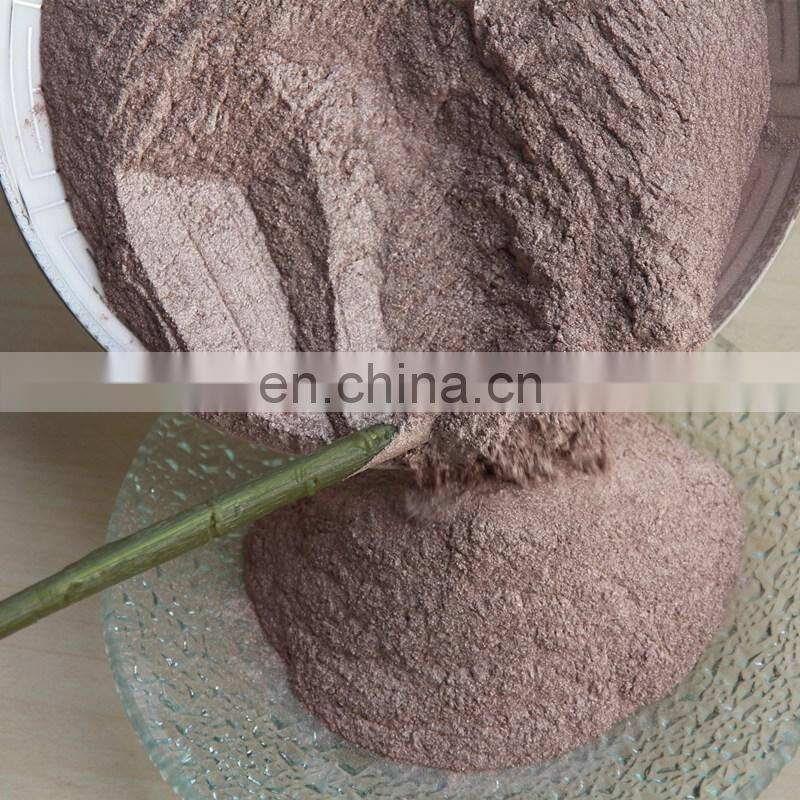

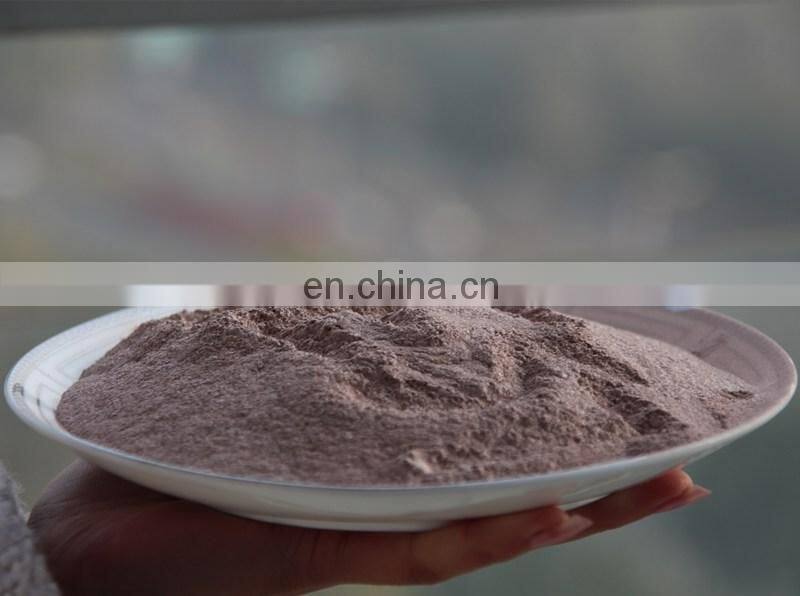

conductive paste silver coated copper Ag coated Cu flake/powder

Specifications of silver coated copper powder
Chemical composition : Ag%( Ag:3-30%)
Particle size distribution: D50=2-35um
Apparent Density: 0.6-3.6g/cm3
Quality guarantee:We could provide test report from both ours and third party and we have enough patience to wait for your testing and evaluation.
Product inspection:4 kinds of test,i.e. acid and alkali resistance test,moisture resistance test,Heat cycle test and salt-spray test.

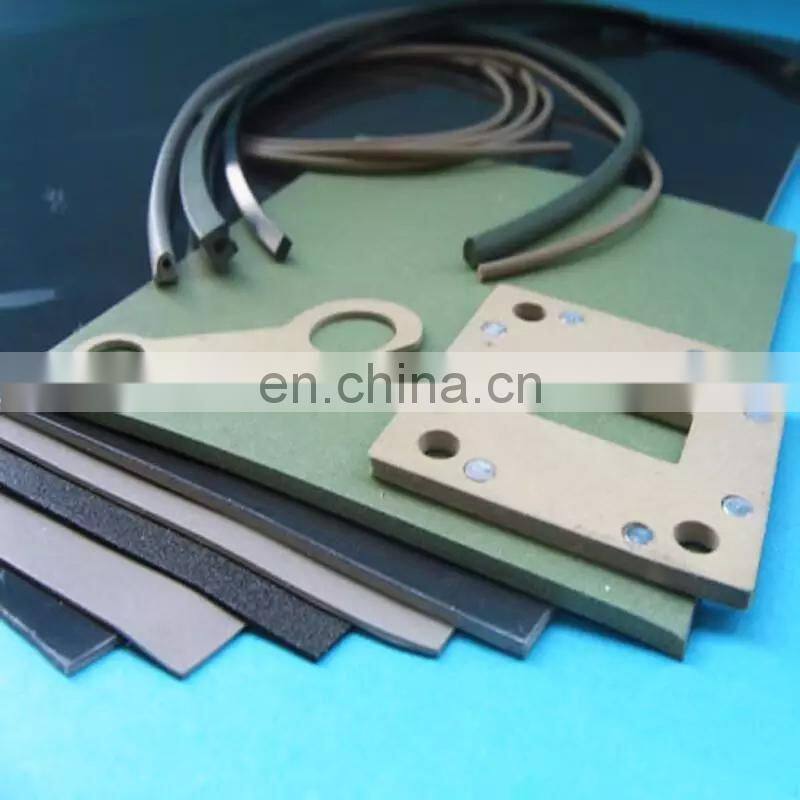

Applications:mainly used in conductive coating, conductive ink,conductive paste,conductive adhesive film/membrane,EMI/EMC
shielding,etc.
Storage conditions:Temperature is 5-20 degree(40-68F) and humidity 25%max.
Shelf life:3 years if the package is not unfold,unless it is 6 months.

Specification

Specification: flake, dendritic, spherical

The higher the silver content, the better the conductivity and the higher the oxidation resistance.

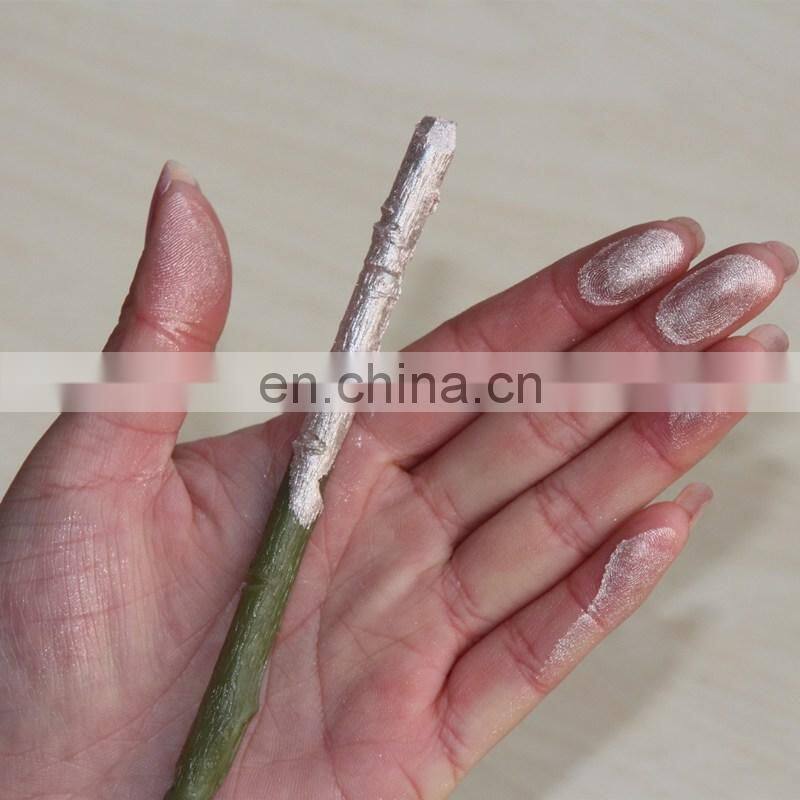

Color: dark red to silver gray, color varies with the amount of silver coating and the morphology of copper powder

Name	Product Code	Chemical Content(%)	Size Ddistribution	Tap Density (g/cm³)	Surface Area (m²/g)	Shape
Silver Coated Copper	XHX-0310	Ag(5-7) Cu(Margin)	D 9 0: 12um D 5 0:8 µ m D 1 0 :5 µ m	0.80-0.90	2.70- 2.95	Flake
Silver Coated Copper	XHX-4010	Ag(10-11) Cu(Margin)	D 9 0:12um D 5 0:7um D 1 0:4um	0.8-0.9	0.7-0.76	Flake
Silver Coated Copper	XHX-4010DS	Ag(10-11) Cu(Margin)	D 9 0:20um D 5 0 :15um D 1 0 :5um	0.70-0.85	0.80-1.22	Flake
Silver Coated Copper	XHX-4020CI	Ag(20-25) Cu(Margin)	D 9 0: 12um D 5 0: 7um D 1 0: 4um	0.85-0.91	2.15-2.25	Flake
Silver Coated Copper	XHX-4030CI	Ag(30-35) Cu(Margin)	D 9 0:12um D 5 0 :8um D 1 0 :6um	0.85-0.91	2.15-2.25	Flake
Silver Coated Copper	XHX-6010	Ag(10-11) Cu(Margin)	D 9 0: 11um D 5 0: 6um D 1 0: 3um	0.52-0.55	1.90-2.10	Flake
Silver Coated Copper	XHX-6020	Ag(20-21) Cu(Margin)	D 9 0 :8 µ m D 5 0 :6 µ m D 1 0 :3 µ m	0.68-0.75	3.25-3.35	Flake
Silver Coated Copper	XHX-8123FA	Ag(30-35) Cu(Margin)	D 9 0 :9 µ m D 5 0 :7 µ m D 1 0 :5 µ m	2.50-2.76	0.80-0.90	Flake
Silver Coated Copper	XHX-8030	Ag(30-35) Cu(Margin)	D90 :7 µ m D50: 5 µ m D10 :3 µ m	0.60-0.65	1.56-1.72	Flake
Silver Coated Copper	XHX-8040IA	Ag(40-45) Cu(Margin)	D 9 0: 6 µ m D 5 0: 5 µ m D 1 0 :3 µ m	0.70-0.76	2.80-2.90	Flake
Silver Coated Copper	XHX-8617	Ag(10-11) Cu(Margin)	D901 2 µ m D50:8 µ m D10: 4 µ m	0.9-0.98	3.25-3.45	Dentritic
Silver Coated Copper	XHX-8123C	Ag(20-25) Cu(Margin)	D 9 0 :7 µ m D 5 0 :3 µ m D 1 0 :1 µ m	1.45-1.60	1.25-1.35	Spherical

Application

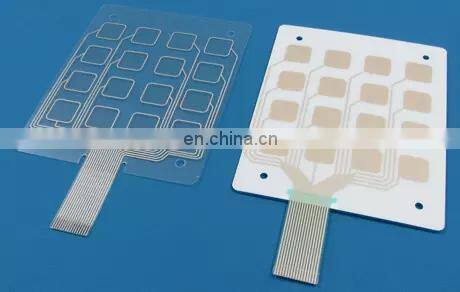

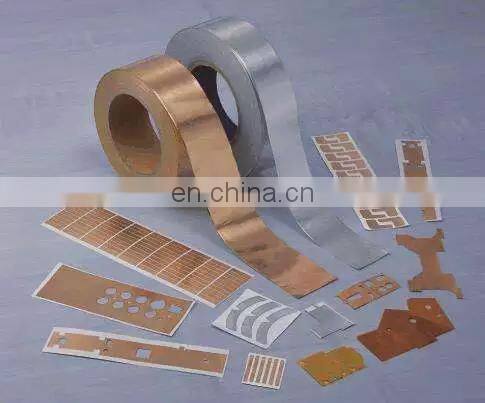

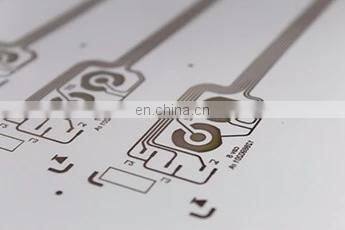

To make conductive membrane film; conductive ink; conductive paste; conductive paint; conductive rubber, to printed electronics membrane switch, etc..

Company Profile

Chengdu Xinhongxin Technology Co.,Ltd located in Chengdu, China. We are a professional manufacturer & exporter of metal powders for more than 10 years .

Our well-equipped facilities and excellent quality control throughout all stages of production enable us gained a global sales network reaching Japan, South Korea, Poland, England, the United States,Turkey and Brazil etc.

Our office and Team & Factory

Quality control

Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction.

Carbon and sulfur analyzer ELTRA CS2000

Oxygen, nitrogen, hydrogen analyzer LECO TCH600

Laser particle size analyzer BECKMAN LS13 320

Tap density analyzer BT-300 Tap density analyzer

FAQ

Q: Are you a factory or trading company? A: Yes ,We are a factory. Q:What are the key properties of metal powder I should be concerned with when selecting one kind of powder for my application? A:The key properties of metal powder that define their performance level for different applications include purity , particle size , impurity content , and loose density . Q: if I need some sample before a large number of procurement, how much free sample can you supply ? A: Usually we can provide 100-500g free sample .

Customer Photos

Test report

Product Warranty & Particle size distribution

SEM photo

Packing & Delivery

Small quantity :packing by bags , send by express

Big quantity : packing by barrel , send by sea

Welcome to contact us all the time , We 24 hours service for you ^_^
