Titanium Carbide Parts Tic Welding Rod On Blow Bar And Hammer Castings

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

1. Product Introduction

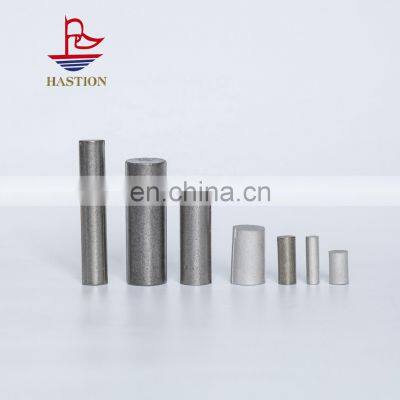

The titanium carbide cermet rod(TiC rod) belongs to the steel-bonded cemented carbide, which is a kind of compound material based on the steel as the binder phase and used the refractory metal carbide(mainly the titanium carbide and the tungsten carbide) as the hard phase. The TiC rod is the high-hardness and high-strength titanium-based alloy composite material.

TiC carbide rods can be used in very poor working conditions in order to improve the life of the workpiece.
Since the titanium carbide has a strong high temperature corrosion resistance, so titanium carbide
products are also used in a high-temperature corrosive environment .

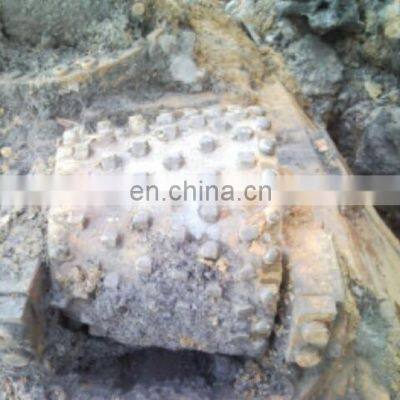

TiC carbide rods are mainly used in crushing hammer.It makes the crushing hammer life more longer. It makes crushing hammer life increase 3-5 times.

We can produce different sizes of rods according to customers' special requirements or drawings.

2.Product Physical and Mechanical Characteristics

Grade

Density

(g/cm3)

Hardness(HRC)

TRS

(Mpa)

Porosity

Abrasion test

Machining

Annealing

Hardening

TM60

6.42~6.45

sintered state:
HRC≥56

≥68

A04 B04

TM52

6.12~6.25

sintered state:

HRC≥60

≥1500

A04 B04

7.2

Grade	Elastic modulus (×102kg/cm2)			Specific resistivity (Ωmm2/m)			Coercive force(HC)	Impact toughness (J/cm2)	Thermal expansion Coefficient(×10-6/ºC)
Grade		Annealing	Hardening	Annealing	Hardening		Coercive force(HC)	Impact toughness (J/cm2)		Temperature	a
TM60	353	-	-	H2O toughing treatment ≧6.0	-	H2O toughing treatment ≧6.0	20~200 20~700	11.75 15.3
TM52	-	-	-	-	-	-	20~200 20~700	9.16 11.13

3.Examples of Application

HOT SELLING Size:

Φ8*60(L) Φ12*18(L); Φ12*30(L); Φ12*40(L); Φ12*50(L);
Φ14*50(L) Φ14*60(L) Φ14*80(L)
Φ16*60(L) Φ16*90(L) ;

4.The Advantage Of Economic Cost(common Hammer With High Manganese Steel VS Tic Hammer With Our Tic Rod

Packing & Delivery

1. Package Details(Metal Powders and TiC Rod/Insert/Plate Products)
Samples: by vacuum plastic bag firstly, then by Carton.
Productions: by steel drums, then packed by pallet.

2. Shipping Method
By international express(DHL,FEDEX,TNT or others) / by sea / by air

We could do different package methods according to customers' requirements.

Company Profile

1. HASTION Introduction

Zhuzhou Hastion High-tech Materials Co., Ltd.(short for HASTION) is located in Yanling Small and Medium Enterprise Pioneer Park in Zhuzhou City, Hunan Province, which is covering an area of 60,000 square meters and a planned factory area of 50,000 square meters. Now HASTION have 2 different productions lines, one is the raw material metal compound and elemental powder(TiC/Cr3C2/VC/NbC/ZrC/HfC/(W,Ti)C/(Ta,Nb)C and so on), the other one is the titanium carbide cermet rod/insert/plate/customized shape/guide roller and so on(belong to the steel-bonded cemented carbide), until now our products have been sold to many countries, like the Turkey, Belgium, Australia, Japan, Korea, Vietnam, India, Pakistan, Thailand and etc.

2. HASTION Workshop

HASTION has passed the ISO9001:2008 international quality system authentication. we are well equipped with the high-level machines for production and inspection.until now HASTION has total over 600tons annual production capacity(TiC rod: 120-180tons; metal powder: 400-450tons), also our prodution scale is still increasing.

Certifications

Exhibition

FAQ

1. who are we?
We are based in Hunan, China, start from 2011,sell to Domestic Market(11.11%),South Asia(11.11%),Southern Europe(11.11%),Central America(11.11%),Eastern Asia(11.11%),Southeast Asia(11.11%),Eastern Europe(11.11%),South America(11.11%),North America(11.11%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Steel-bonded cemented carbide,carbide ceramic tile cutting,carbide rods,Carbide glass cutting wheel,Cermet rods

4. why should you buy from us not from other suppliers?
Our factory in yanling, Zhuzhou of Carbide centralized place, occupies an area of 50 acres of land. Langfeng own excellent R&D team, responsible for the design of the products, R&D and quality control, have achieved a number of invention patents already.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,Express Delivery；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese
