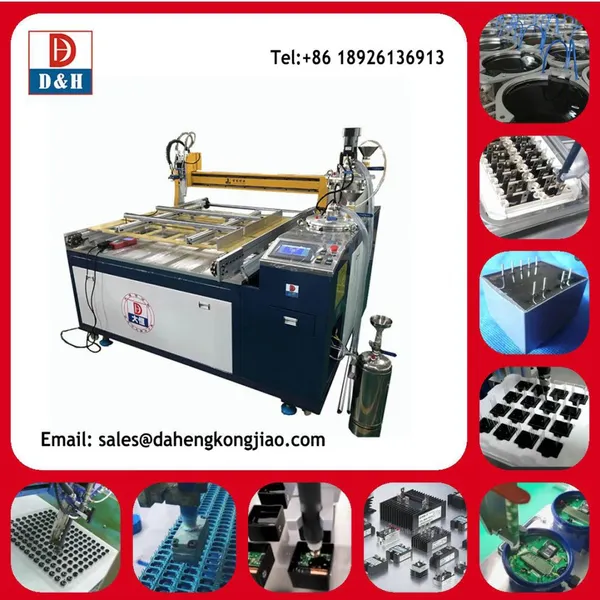

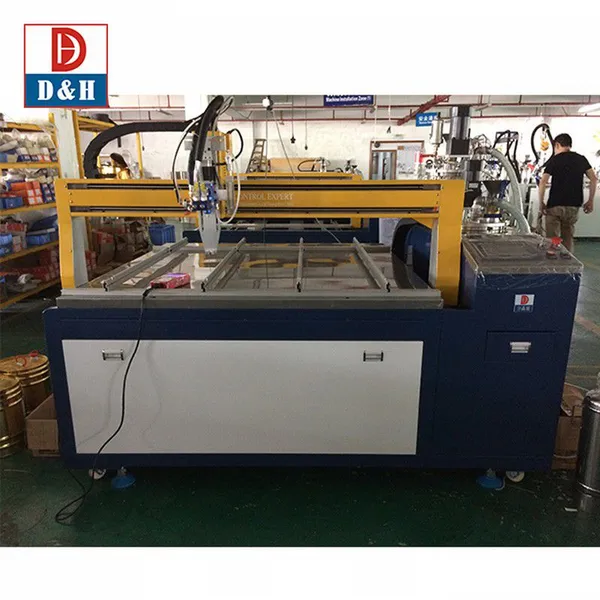

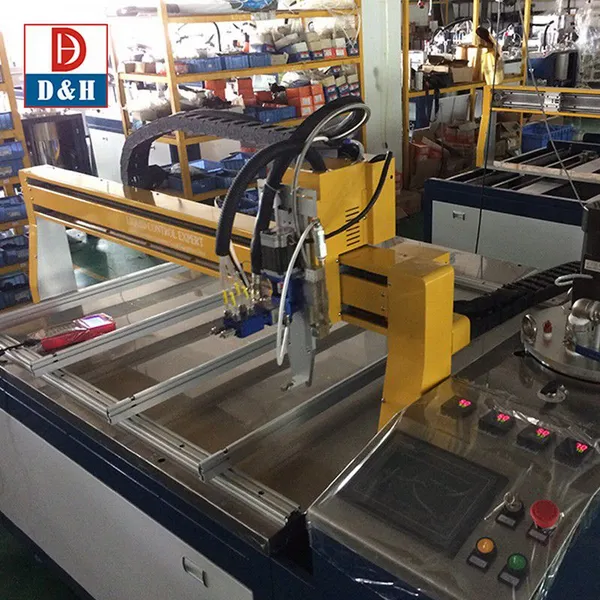

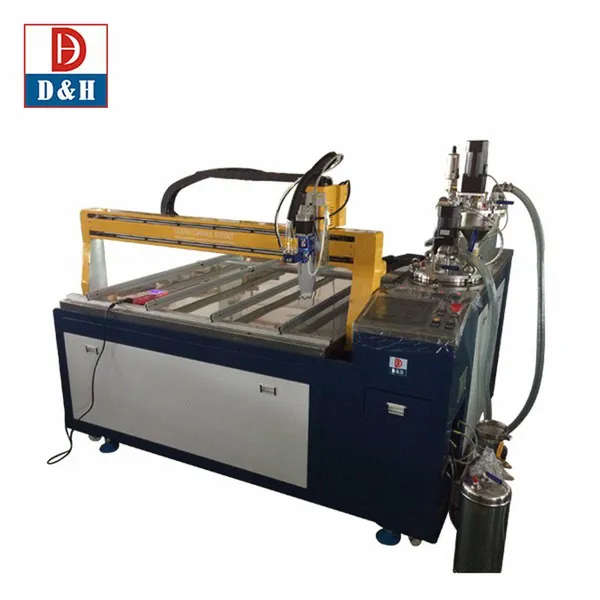

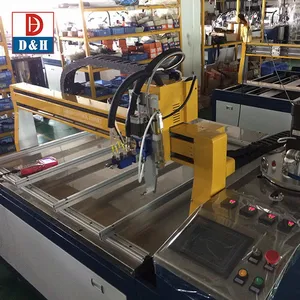

Automatic Glue Dispensing Machine High Precision 2 Part Epoxy Dispensing Equipment Robotic Glue Dispenser
US$ 16000 - 18000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Daheng
Place of Origin:
China
Model Number:
PGB-1200
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou, Shenzhen, or other port in China
Delivery Detail:
15 days
Related Products
-
Automatic Carton Box Fold Glue MachineUS$ 3000 - 30000MOQ: 1 Set -
OSD-820b Hot Melt Glue Machine for Mattress Foam Spraying and LaminationNegotiableMOQ: 1 Set
-
Hot Melt Glue Machine, Hot Melt Glue Tube for Dispensing Machine, Hot Melt Glue Tube for PUR Glue Machine, Hot Melt Glue TubeCNY 400 - 500MOQ: 1 Piece
-
Glue MachineUS$ 3,780 - 3,850MOQ: 1 Set
-
Speaker Machine-glue MachineUS$ 951 - 1,000MOQ: 1 Set
Brand Name
Daheng
Place of Origin
China
Model Number
PGB-1200
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
Why Choose Us
Automatic dispensing robot automatic epoxy resin dispensing machine automatic liquid dispensing machine
We Daheng Automation specialize in different types of potting and dispensing systems. No matter what your resin application requirements look like: we can do most of them in our fully equipped lab. We can handle 1- and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials. They can be from low- to high-viscosity, filled or unfilled and even high abrasive for thermal conductivity.
Potting and encapsulation is the process of embedding products & assemblies in a liquid resin (potting compounds) to protect them against rough environmental conditions. Potting can be performed under atmospheric pressure or even under vacuum if high-voltage insulation and high-temperature differences are needed. Encapsulation of parts will stop the corrosion of metals and reduce damage caused by vibration and mechanical stress.
We offer automatic, semi-automatic fluid dispensing potting machines and the related production line and vacuuming systems.
Introduction ：
1. Working Mode: controlled by PLC module and MCGS touch screen.
2. High precision valve: high speed, glue off clean, no glue drawing, no dropping. 3. Core metering pump specially designed for different materials from low to high viscosities. 4. Mix glue A & B more evenly; no more or no less for agent B.
Working principle ：
Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting the ratio, draining out material individually from tanks A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.
Tank system technology：
1. Stainless panel vacuum pressure tank which can bear negative pressure of the inner tank. 2. Tank with a motor stirrer that prevents the glue from sedimenting and keeps the potting material at a constant temperature. 3 Tank with top/ high /low liquid sensors that ensure alarm warning when liquid is higher or lowers the setting level. 4 Tank with vacuum degasses (degas time can be set through touch screen), so the material can be re-feeding through vacuum negative pressure. 5 Tank with pressure releasing ball valve; the bottom of tank reserved back-flow connector and river closure ball valve.
6 Tank with a heater that can preheat materials to assure good flowability. 7 Tank with an artificial feeding mouth that can be added glue appropriately by hand. 8 Tank with silica-dryer which can prevent material, especially PU from crystallization.
D&H Pump technology
1. Two-cylinder plunger pumps work with durable motors. 2.The biggest flow volume :24g/s，Repetition accuracy:0.2g. 3. Also Suitable for high viscosity glue: 50cps~35000cps. 4. Suitable for big flow dispensing or slight flow dispensing. 5. Suitable for frequent start and stop dispensing. 6. Anti-wear, Anti-corrosion, super long lifetime.

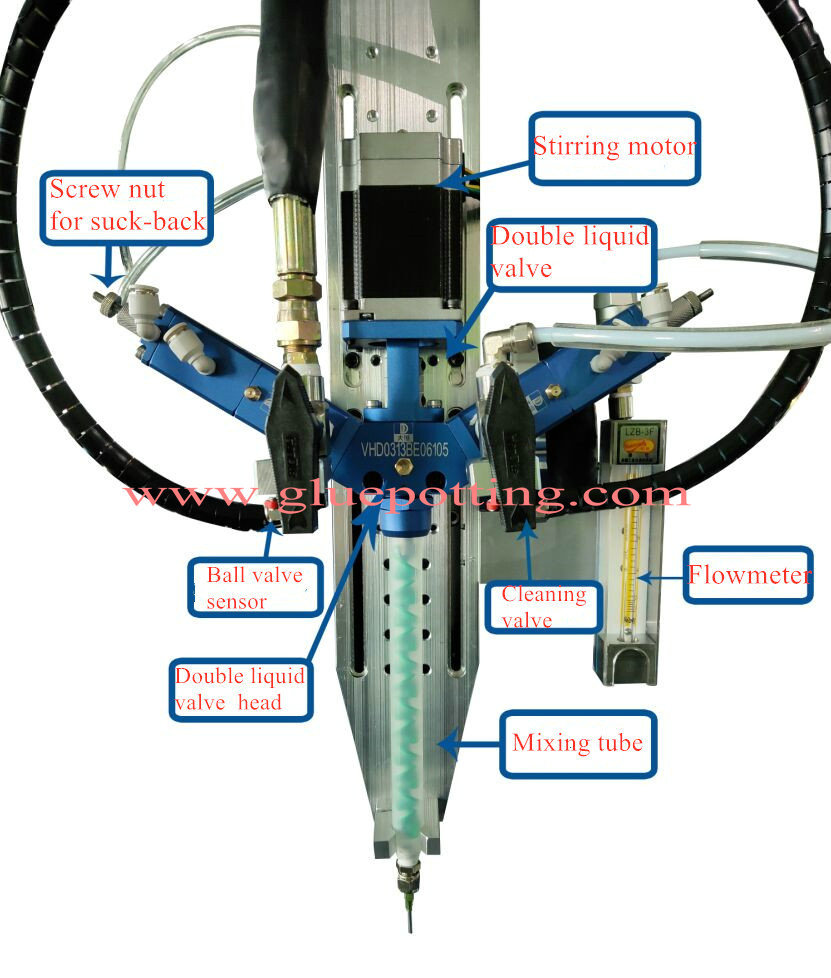

Valve technology
1. Two-cylinder plunger pumps work with durable motors. 2.The biggest flow volume :24g/s，Repetition accuracy:0.2g. 3. Also Suitable for high viscosity glue: 50cps~35000cps. 4. Suitable for big flow dispensing or slight flow dispensing. 5. Suitable for frequent start and stop dispensing. 6. Anti-wear, Anti-corrosion, super long lifetime.
Tech Data
PLC Operation Controlling System
1 Dispensing volume is controlled by the speed of the pump’s motors; Glue speed is adjustable within the speed range.
2 Machine with detecting function that detects the speed and running time of pumps to ensure the ratio reliability.
3 Adjustable gluing-out volume make sure glue A/B dispenses out at the same time from the glue valve to get better glue mixing effect.
4 Machine with gel resistance calculator, which prevents the mixture from curing inside.
5 You can set a single gluing-out and steady gluing-out functions to meet up with your different process requirements.
6 Whole machine system and function are controlled by Panasonic PLC and MGCS touch screen.
7 Reserved PLC communication interface, which easily connects with an outside device.
8 Equipped with a safety lock to prevent staff from the wrong operation.

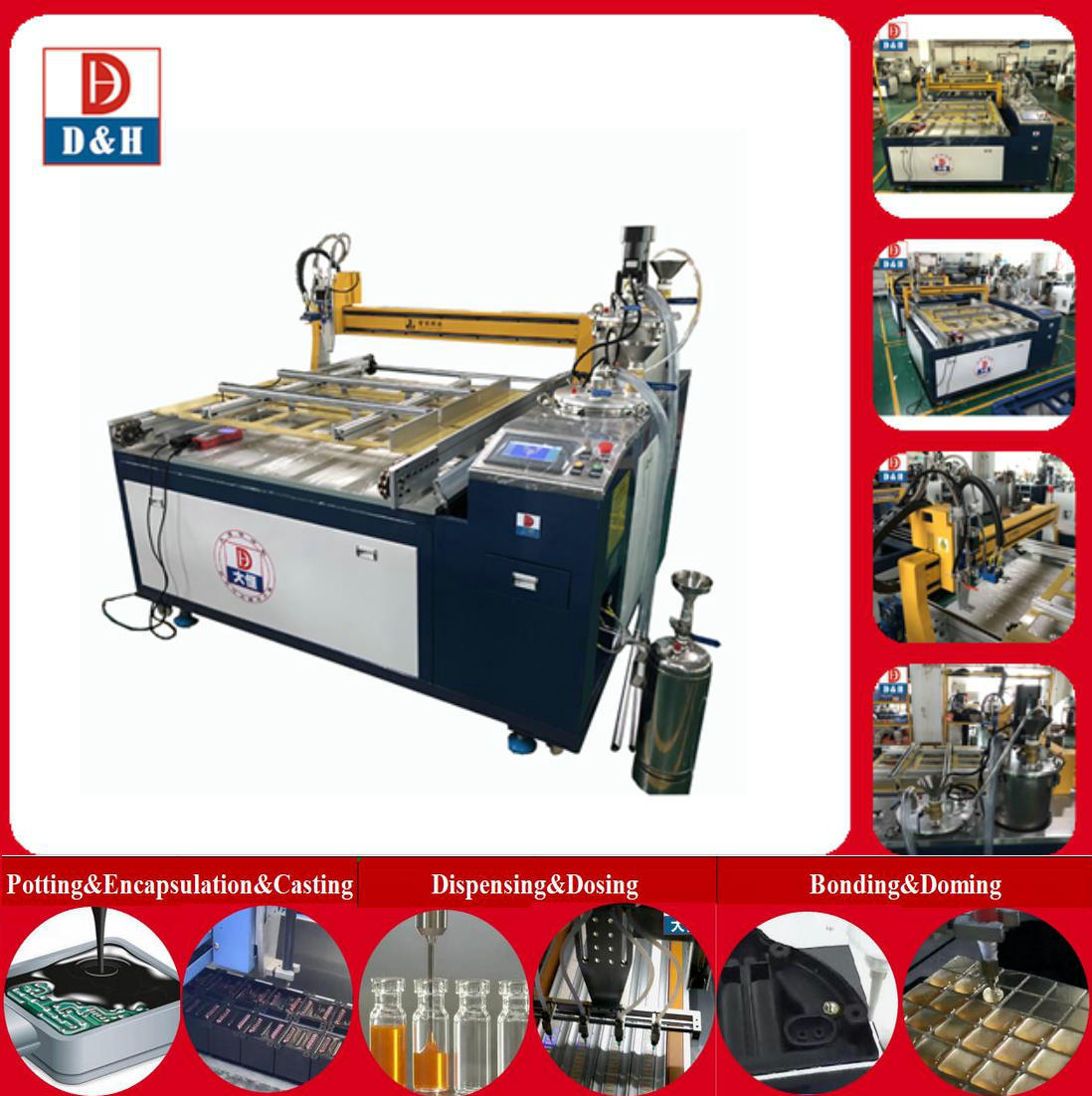

Application
1.Potting&Encapsulation &Casting: electronics components, PCB board, Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, filter products, underwater parts, electronic ballast, aviation parts, aerospace parts... 2. Dispensing & Dosing: LED strip, led lamp, led bulb, aluminum, led screen, display module, medical parts, medical liquid filling... 3. Bonding & doming: LCD screen, LOCA bonding， ABS plastic, different types of stickers, badges, keychains, souvenirs, arts, photo frames, and other arts graphics...
Applicable material
1K and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity, and UV curing materials. Two-component potting materials, 2-part compound materials, AB part compound materials, 2K silicones, 2K epoxies resin, Bi-component PU, Polyester, Polyurethane, UV materials, and so on.
Our customer cases
Service Term
1、 Staff training Seller is responsible to provide machine training including installation, debugging, and maintenance to assure the customer can totally use the operation skills and well acknowledge the maintenance of the machine.
2、Maintenance Service 2.1Seller provide one year warranty period and supports free maintenance service during the warranty. Software upgrade service is provided for a long lifetime.
2.2 In case parts of the machine become broken within the warranty because of non-artificial factors, we send you the part replacement free, and the buyer pay for the shipment. The double-liquid valve should be bought at its cost price.
2.3If the parts of the machine become broken past warranty, the parts replacement should be shouldered by the buyer.
