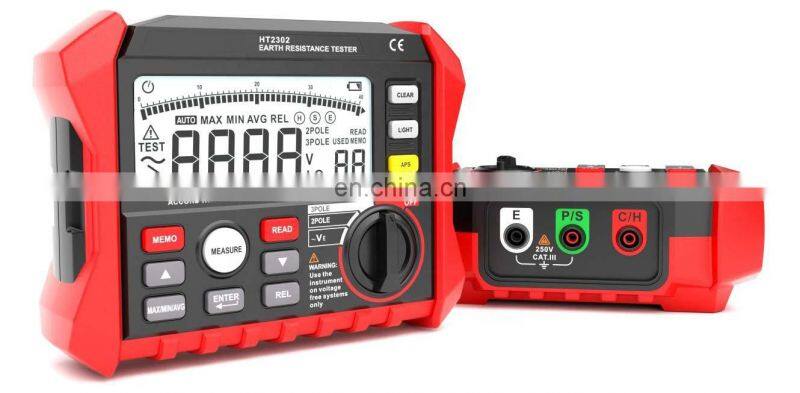

Resistance Tester High quality tester HT2302 Earth Resistance Tester
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Tester Cable Detector and Wire Tester Underground Pipe Locator Wire Tracker
-
Electrical Cable Locator Portable Underground Wall Cable Finder Water Gas Pipelines Detector
-
underground cable fault locator underground pipe detector cable fault finder
-
Intelligent lightning protection component (SPD) tester
-
Double clamp grounding resistance tester soil resistivity ground voltage DC voltage and AC current
-
underground cable fault locator equipment Detect circuit breaker fuse
Product Description
High quality tester HT2302 Earth Resistance Tester Accept do your own brand
Product Description
|
Specifications |
Range |
Accuracy |
Resolution |
Feature |
|
Earth ground resistance |
0Ω~29.99Ω |
±(2%+6dgt) |
0.01Ω |
Digital display & analog bars display |
|
|
|
|
|
2 pole and 3 pole mode |
|
|
30Ω~99.9Ω |
±(3%+3dgt) |
0.1Ω |
Earth resistance by constant current inverter 800Hz/3mA |
|
|
100Ω~999Ω |
±(3%+3dgt) |
1Ω |
MAX/MIN/AVG/REL |
|
|
|
|
|
Measurement functions |
|
|
1.00kΩ~4.00kΩ |
±(3%+3dgt) |
10Ω |
Data logging : 100 group |
|
|
|
|
|
Display back light |
|
Earth voltage |
0V~200V (50~60HZ) |
±(1%+5dgt) |
0.1V |
Low battery indication |
|
General |
|
Power supply:6*LR14 battery |
|
Product size:180mm*140mm*68mm |
|
Product weight:Approx. 950g |
|
Safety rating:EN61010-1/EN61557-3/EN61326-1/CAT.IV 600V/CAT.III 1000V |
