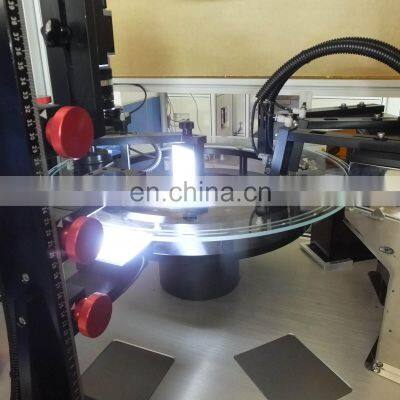

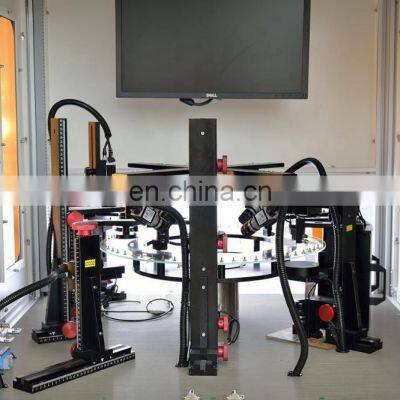

RK-1520 Glass Plate With U-Type Groove Optical Vision Inspection Machine AOI Image Sorting Equipment for Rubber Screw Detection
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2005
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RK-1500 Automated Visual Sorting Machine CMOS Optical Appearance Image Screening Equipment for Micro-parts Rubber ProductNegotiableMOQ: 1 -
RK-1500 Glass Plate Optical Vision Sorting Machine CMOS Image Display Inspection Screening Equipement for Rubber Screw ProductsNegotiableMOQ: 1
-
Industrial RK-1500 Glass Plate CCD Fastener Image Automated Sorting Machine Optical Visual Screening Equipment for Micro PartsNegotiableMOQ: 1
-
RK-1500 Glass Plate Optical Visual Screw Screening Equipment CCD Fastener Image Automated Sorting Machine for Micro PartsNegotiableMOQ: 1
-
Customized RK1500 Screw Optical Sorting Machine Glass Plate CCD Visual Inspection Machine for Nuts Fasteners Rubber MeasuringNegotiableMOQ: 1
Optical Sorting Machine For Pin And Nails
Types: RK-1520 U-Type Groove Optical Sorting Machine

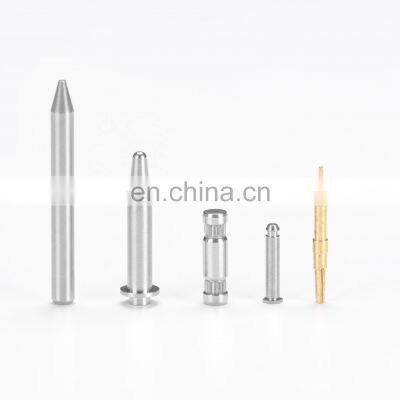

Suited for: Pins, shafts, rollers and special components
Inspection Screen
1.The machine is equipped with a vertical top view industrial camera for inspecting the multi-segment height, outer diameter, and total length of the product.
2.It can be outfitted with additional industrial cameras for the inspection of leaks and other factors.
Technical Parameter:
Note: Customized service can be provided according to the detect demand.
Machine Features:
Patent Number of U Type Groove Optical Sorting Machine:ZL2013202116018
1.The machine is suitable for the inspection of products that cannot stand on the glass plate
2.Both products that can and cannot stand can be inspected by this machine.3.Detection speed:100~500 PCS /Min Depend on individual case.
4.Easy to operate and maintain.
6.Automatic counting packaging machine and automatic feeding system can be added according to customer demand.
6.Automatic counting packaging machine and automatic feeding system can be added according to customer demand.
Inspection Items:
Diameter,Hole diameter |
Roundness |
Length |
With coating |
Width |
With mark |
Height,Thickness |
With cut/tapering |
Surface defect |
Parallel edge length |
Deformed,Broken |
Broken pin,Recess depth |
Different shape |
With thread |
Crack |
Fine or coarse thread |
Burrs,Chips |
Tooth numbers |
Across Corners |
Pitch |
Across Flat |
Slanted thread |
Chamfer angle |
Minor diameter |
Included angle |
Major diameter |
Arc radius |
Hardness |
Concentricity |
Recognition of different materials |
With or without heat treatment |
Delivery and Package:
Delivery: by sea, about 30-60 working days after order confirmation.
Packed in plywood cases (No Fumigation required) or packed according to custom packaging.
Packed in plywood cases (No Fumigation required) or packed according to custom packaging.
Service Advantage:
1, Warranty: 12 months FREE overseas serice.
2, Enjoy lifelong maintenance.
3, Professional service team, to provide 24 hours, 365 days of technical support services.
4.Offer remote online service ,if there is no solution within 2 hours,door to door service will be offered after both parties
negotiation.
5.Convenient service ,response for your machine breakdown in the shortest time and get rid of your worry.
2, Enjoy lifelong maintenance.
3, Professional service team, to provide 24 hours, 365 days of technical support services.
4.Offer remote online service ,if there is no solution within 2 hours,door to door service will be offered after both parties
negotiation.
5.Convenient service ,response for your machine breakdown in the shortest time and get rid of your worry.
Welcome to ask for details.
If you could provide related samples and test items, a project plan will be send to you after practical test by us. Then discuss the equipment specification and procurement plan. We promise that most suitable machine with costing the least money.
