RK-1500 Glass Plate CCD Image Sorting Machine Optical Visual Screening Equipment for Micro Parts Rubber Nur Defect Inspection
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Customized Glass Plate Optical Inspection and Sorting Equipment For Rubber and Seals
-
Glass Plate RK-1500 AOI Rubber Inspection Machine Optical Visual Selection Equipment for Plastics Detection
-
RK-1500 Auto Glass Plate CCD Fastener Image Display Fastener Sorting Machine
-
Glass Plate RK-1500 Automatic Visual Inspection Machine Optical AOI Fastener Sorting Machine
-
RK-1500 Glass Plate CCD Fastener Image Sorting Machine Optical Visual Screening Equipment
-
RK-1500 Glass Plate Screw Optical Inspection Equipment CCD Image Visual Sorting Machine for Defect Measuring
Product Description
Plastic Parts Defect Automated Visual Screening Equipment
Types: RK-1500 Glass Plate Optical Sorting Machine

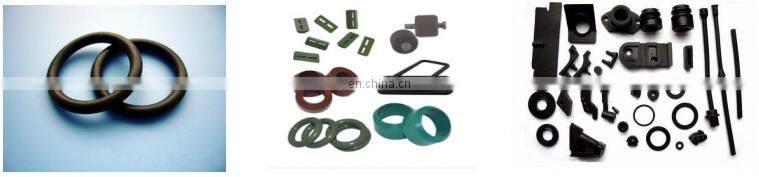

Suited for: O-ring, Rubber Products and Similar Parts.Inspection Screen
The machine comes equipped with three high-precision industrial cameras.
Camera 1 is a Horizontal camera used for inspecting the thickness of products.
Camera 2 is Vertical top view camera, to inspect the inner diameter, outer diameter, and other parameters of each product.

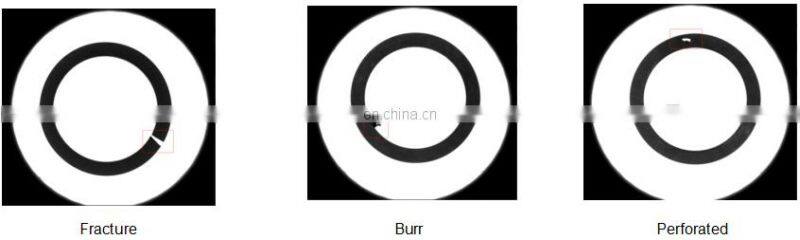

Camera 3 is Vertical top view camera used for inspecting for any appearance defects such as burrs and missing material.
Camera 1 is a Horizontal camera used for inspecting the thickness of products.
Camera 2 is Vertical top view camera, to inspect the inner diameter, outer diameter, and other parameters of each product.
Camera 3 is Vertical top view camera used for inspecting for any appearance defects such as burrs and missing material.
Technical Parameter:
Note: Customized service can be provided according to the detect demand.
Machine Features:
1. Highly-transparent glass plate.
2. Fit for grease-free parts which can be securely placed on the glass plate.
3. Wide detection range of fasteners, mobile phone parts, rubber products, electronic components, special-shaped hardware, screw etc.
4. Detection camera: can add 2-6 sets of cameras according to the inspect items.
5. Detection speed: 300~1000 PCS /Min Depend on individual case.
6. Automatic counting packaging machine and automatic feeding system can be added according to customer demand.
3. Wide detection range of fasteners, mobile phone parts, rubber products, electronic components, special-shaped hardware, screw etc.
4. Detection camera: can add 2-6 sets of cameras according to the inspect items.
5. Detection speed: 300~1000 PCS /Min Depend on individual case.
6. Automatic counting packaging machine and automatic feeding system can be added according to customer demand.
Inspection Items:
Diameter, Hole diameter | Roundness |
Length | With coating |
Width | With mark |
Height, Thickness | With cut/tapering |
Surface defect | Parallel edge length |
Deformed, Broken | Broken pin, Recess depth |
Different shape | With thread |
Crack | Fine or coarse thread |
Burrs, Chips | Tooth numbers |
Across Corners | Pitch |
Across Flat | Slanted thread |
Chamfer angle | Minor diameter |
Included angle | Major diameter |
Arc radius | Hardness |
Concentricity | Recognition of different materials |
With or without heat treatment |
Delivery and Package:
Shipping
1. Upon receipt of payment, delivery date will be in 25-30 working days,
2. By Air, by Sea or by Express (DHL etc.)
Packed in plywood cases (No Fumigation required) or packed according to customer's requirement.
2. By Air, by Sea or by Express (DHL etc.)
Packed in plywood cases (No Fumigation required) or packed according to customer's requirement.
Service Advantage:
1. Warranty: 12 months FREE overseas service.
2. Enjoy lifelong maintenance.
3. Professional service team, provide 24 hours, 365 days of technical support.
4. Remote online service and technicians' door-to-door service also offered.
5. Convenient service, response for your machine breakdown in the shortest time and get rid of your worry.
3. Professional service team, provide 24 hours, 365 days of technical support.
4. Remote online service and technicians' door-to-door service also offered.
5. Convenient service, response for your machine breakdown in the shortest time and get rid of your worry.
Welcome to ask for details.
Provide related samples and test items, evaluation and project plan will sent back to you after technicians practical test. Then discuss the equipment specification and procurement plan.
We promise that the most suitable machine with cost the least money.
We promise that the most suitable machine with cost the least money.
