Product Description

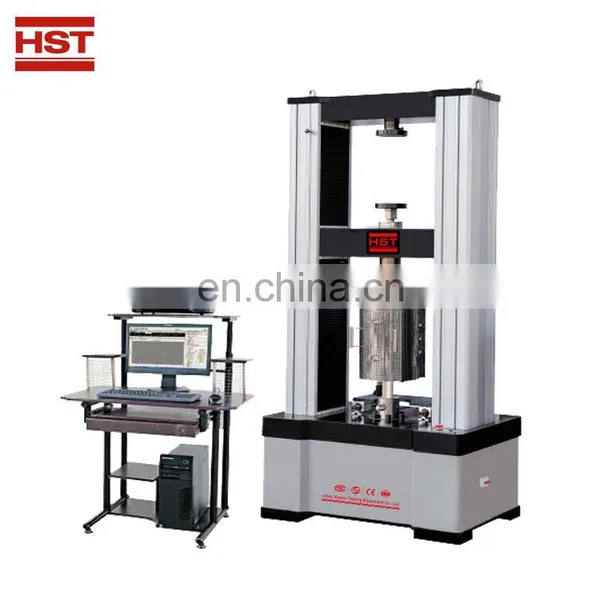

HST RDJ Series Electronic Creep Relaxation Testing Machines

Product Description

1. Function and Purpose:

Creep test machine is applicable to do creep and durable strength test in the condition of high temperature for all kinds of metal and alloys materials, to test creep limit, durable strength limit etc. of material.

2. Application:

This creep test machine is applicable to the field of quality measurement, aerospace, iron and steel metallurgy, machinery manufacturing, electronic appliances, automobile production, civilian nuclear energy, civil aviation, universities, research institutes, commodity inspection, arbitration and other industries.

3. Test Standard:

JB/T9373-1999,JJG276,HB5151-1996 , HB5150-1996 , ASTM E139 , ISO 204 ,ISO/R 206 .

4. Parameters:

Load frame

Model	RDJ-10/20		RDJ-50	RDJ-100		RDJ-200	RDJ-300
Max. Load force(kN)	10,20		50	100		200	300
Accuracy	≤0.5% ; 0.5 class
Deformation accuracy	<±0.5% of reading

Loading Speed	0.05~50mm/min

Voltage	220V/380V±10%;50Hz
Furnace
Operating temperature range		300℃~1100℃
Effective Length constant length		150mm

Furnace inner dimensions		90*380mm

Furnace out dimensions		320*460(Can be adjusted according to user needs)

Temperature control meter		Yudian Temperature control meter
		Electric conduction Temperature control meter
		(optional)
Thermocouple		K type Even thermocouple
		S type Even thermocouple (optional)
High-temperature furnace temperature accuracy (℃)		Test temperature			temperature	temperature gradient
					fluctuation
		300~600			±5	3
		>600~900			±4	4
		>900~1100			±3	5
