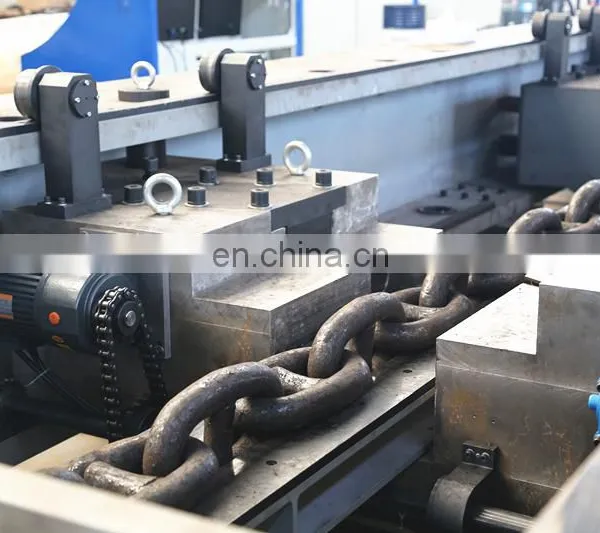

WAL 300ton Computer control hydraulic chain Horizontal tensile testing machine

WAL 5000kn 500ton anchor Horizontal tensile testing machine

Application:

The testing machine is mainly used to determine the tensile strength of electric cable, optic cable, steel wire rope, steel strand and other rope material. The testing machine adopts hydraulic cylinder to load, load cell to measure, computer to print and computer to display test data and other advanced technolog

1. Max tensile force: 1500kn (or 600kN, 2000kN, 3000kN, 5000kN)

2. Test range: 2%~100%FS

3. Load accuracy:±1%

4. Display: Computer display, print,etc

5. WINDOWS interface operation, no language barrier, multilingual choose, report content modification function

6. Tensile distance: 1000mm (can customized)

7. Test speed: 0.1-300mm/min;

8. Max piston travel: 500mm (can customized)

9. Clamp: Bolt way/ hydraulic way
