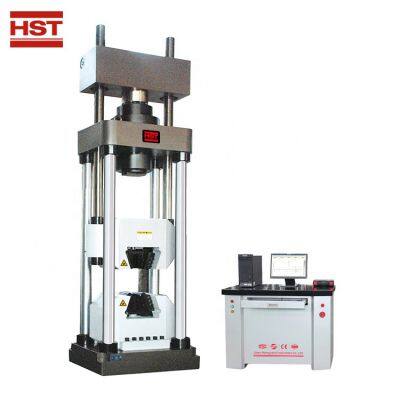

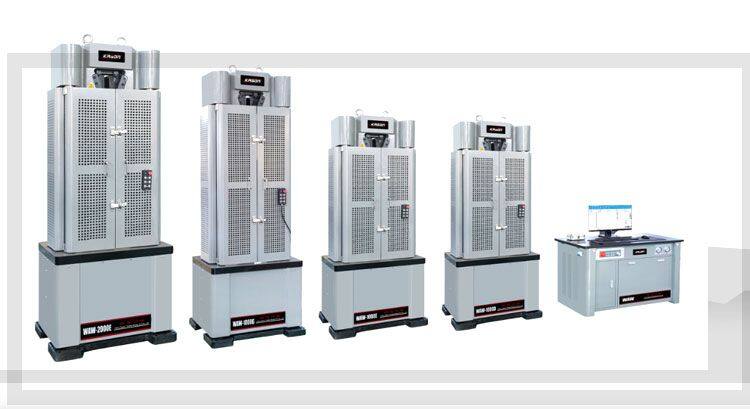

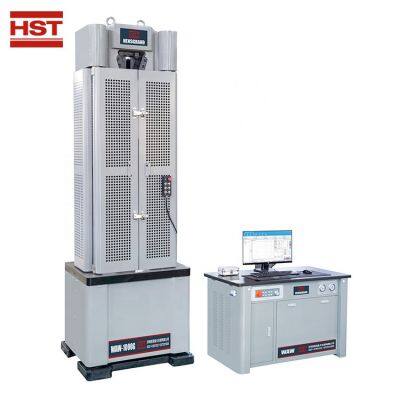

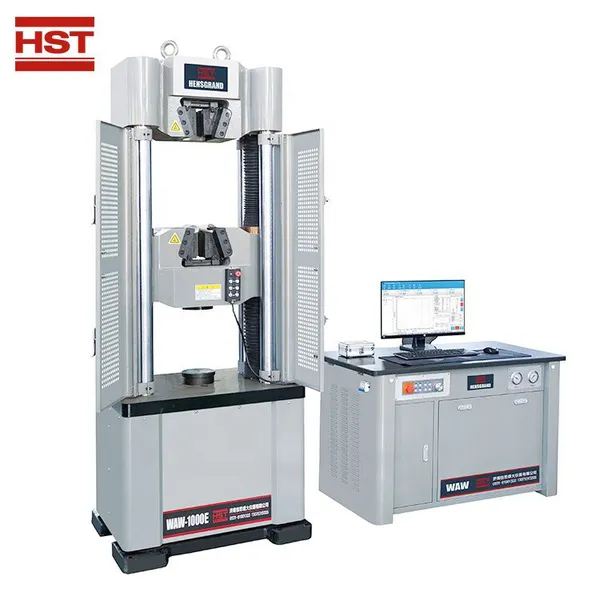

Control universal controlled test bench computer display hydraulic testing machine

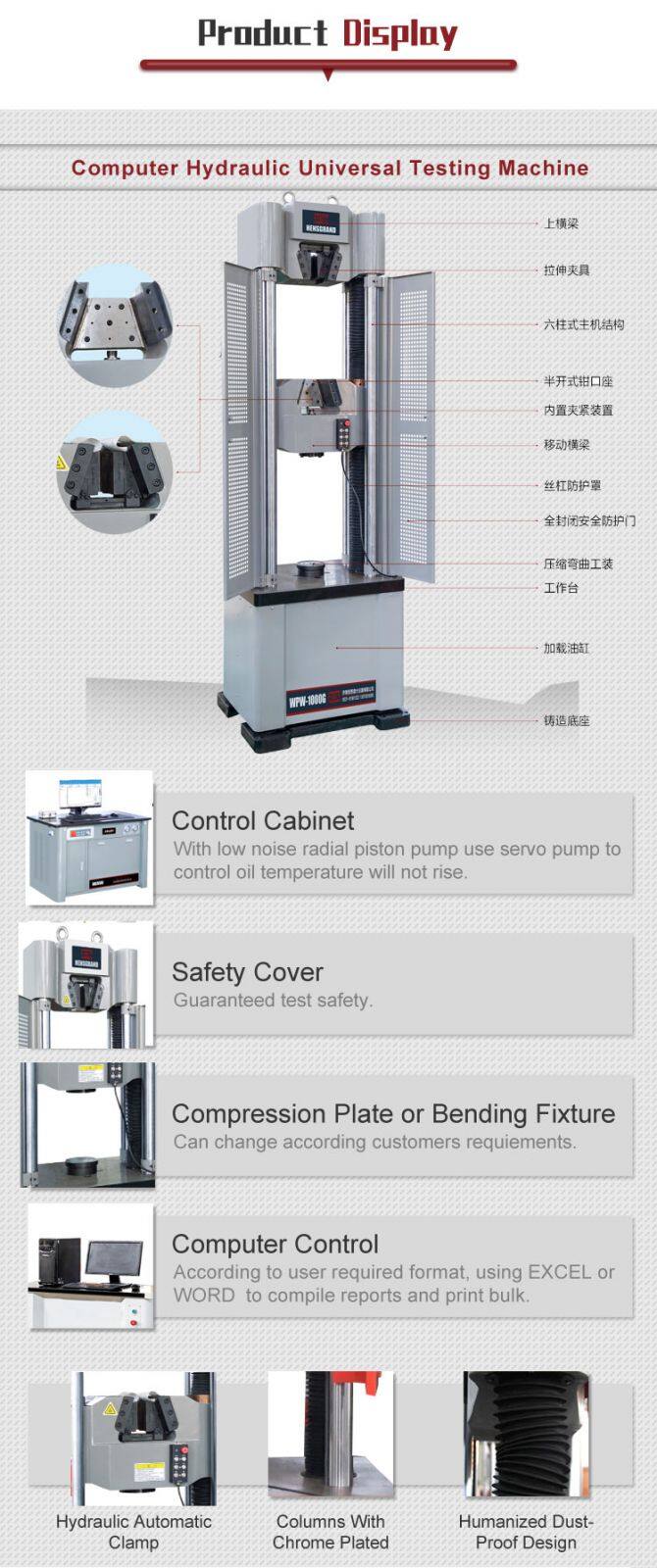

The machine adopts hydraulic loading, digital display, easy and convenient to operate. It is mainly used to execute the tension, compression, bending, shearing etc. Mainly test for metal materials.
Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber and so on. It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force.
|
Model |
WEW-100D WAW-100D |
WEW-300D WAW-300D |
WEW-600D WAW-600D |
WEW-1000D WAW-1000D/E |
WEW-1200D WAW-1200D |
||||
|
Control Way |
Constant stress uniform deformation constant displacement three closed loop control and program control dealing |
||||||||
|
Number of Screw drivers |
4 |
||||||||
|
Max. Load(KN) |
100 |
300 |
600 |
1000 |
1200 |
||||
|
Load Accuracy |
≤± 1%/ ≤± 0.5% |
||||||||
|
Load Range |
2%~100%FS |
||||||||
|
Load Resolution |
1/300000 |
||||||||
|
Deformation Measurement Range |
2%~100%FS |
||||||||
|
Deformation Accuracy |
≤± 1% |
||||||||
|
Displacement Resolution |
0.01mm |
||||||||
|
Testing speeds (mm/min) |
0.1~118 |
0.1~123 |
0.1~123 |
0.1~70 |
0.1~70 |
||||
|
Adjustable crosshead speed(mm/min) |
450 |
450 |
350 |
350 |
320 |
||||
|
Displacement Error |
≤±0.5% |
||||||||
|
Max. Piston Stroke(mm) |
200 |
200 |
200 |
200/250 |
250 |
||||
|
Max. Tension Test Space (mm) |
780 |
780 |
900 |
950/980 |
930 |
||||
|
Max. Compression Test Space |
550 |
550 |
650 |
700 |
640 |
||||
|
Column Effective Spacing(mm) |
485 |
485 |
500 |
560/580 |
610 |
||||
|
Clamping Method |
Hydraulic Automatic Clamp |
||||||||
|
Flat Specimen Clamping Width(mm) |
80*80 |
80*80 |
90*90 |
100*100 |
120*110 |
||||
|
Compression Plate Size |
Φ 160mm |
||||||||
|
Bending Roller Distance |
450mm |
||||||||
|
Width Of Bending Rollers |
120mm |
||||||||
|
Power Supply |
3-phase, AC380V, 50Hz (Can Be Customized) |
||||||||
