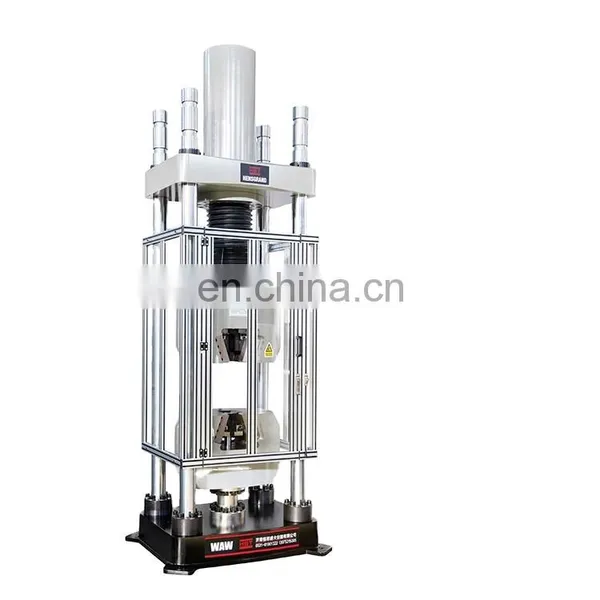

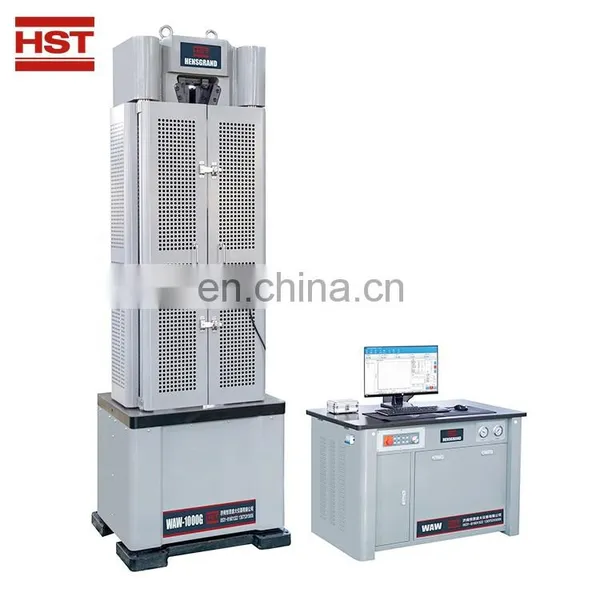

Jinan Universal Testing Machine China Hydraulic Utm Strength Test Equipment

Model

WAW-100D

WAW-300D

WAW-600D

WAW-1000D/E

WAW-1200D

WAW-2000D

Control Way

Constant stress uniform deformation constant displacement three closed loop control and program control dealing

Number of Screw drivers

4

Max. Load(KN)

100

300

600

1000

1200

2000

Load Accuracy

≤± 1%/ ≤± 0.5%

Load Range

2%~100%FS

Load Resolution

1/300000

Deformation Measurement Range

2%~100%FS

Deformation Accuracy

≤± 1%

Displacement Resolution

0.01mm

Testing speeds (mm/min)

0.1~118

0.1~123

0.1~123

0.1~70

0.1~70

0.1~70

Adjustable crosshead speed(mm/min)

450

450

350

350

320

320

Displacement Error

≤±0.5%

Max. Piston Stroke(mm)

200

200

200

200/250

250

250

Max. Tension Test Space (mm)

780

780

900

950/980

930

1250

Max. Compression Test Space

550

550

650

700

640

850

Column Effective Spacing(mm)

485

485

500

560/580

610

800

Clamping Method

Hydraulic Automatic Clamp

Flat Specimen Clamping Width(mm)

80*80

80*80

90*90

100*100

120*110

150*120

Compression Plate Size

Φ 160mm

Bending Roller Distance

450mm

Width Of Bending Rollers

120mm

Power Supply

3-phase, AC380V, 50Hz   (Can Be Customized)
