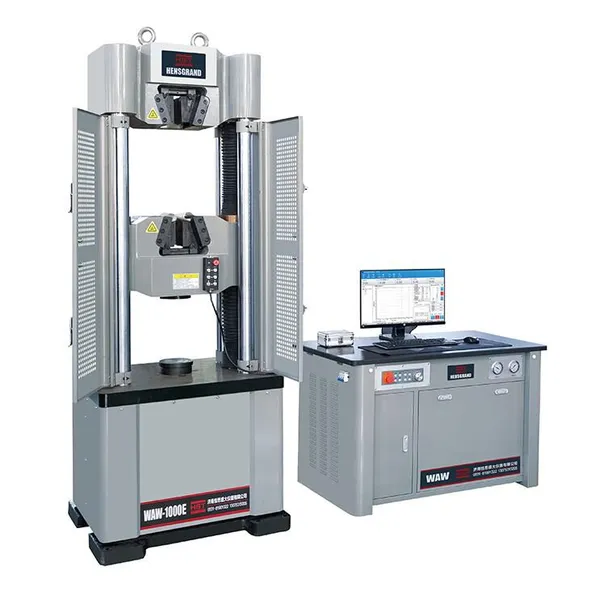

300kn Flexural And Stretch Equipment Tension Tester Universal Test 30t Tensile 3000kn Compression Testing Machine
C
1. Application

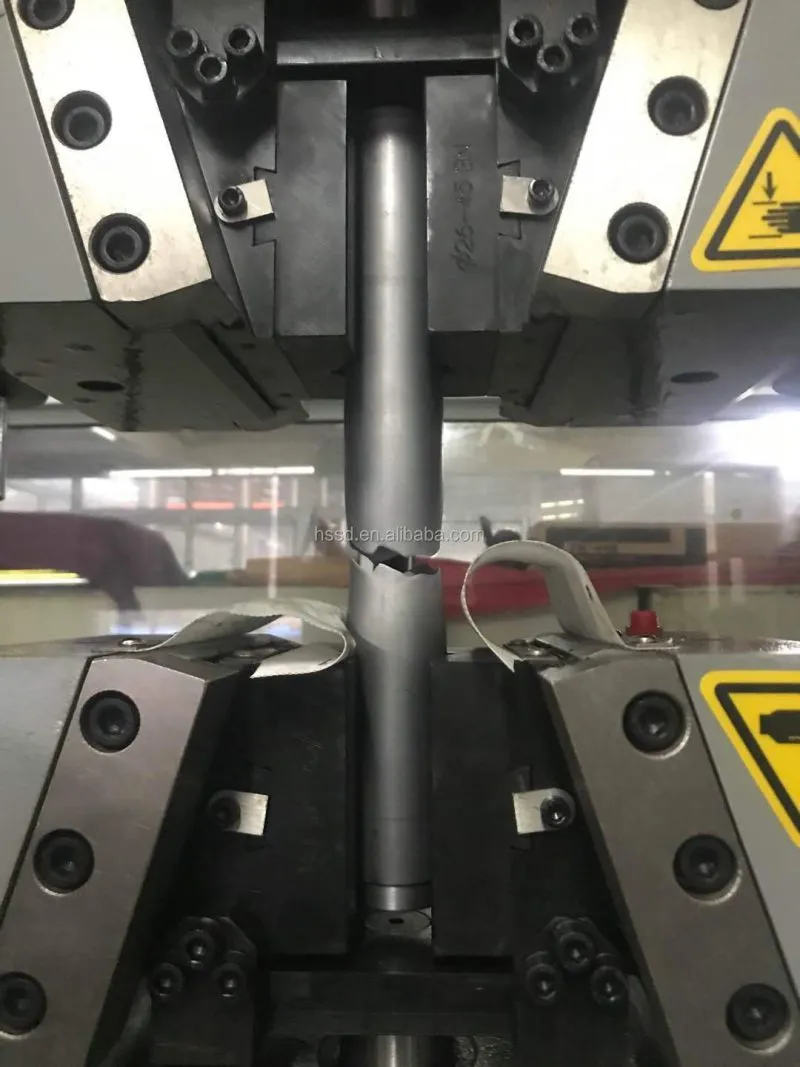

Universal Tensile Strength Testing Machine price is suitable for tension, compression,
bending, shearing,peeling, tearing and other tests by adding different test fixture for metal and nonmetal materials. It is widely used in inspection department, engineering area, laboratories, universities and institutes for material properties research and quality control.
2. Standards of universal testing machine price
ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards
3. Main specifications universal testing machine price
Model |
WAW-100D |
WAW-200D |
WAW-600D |
WAW-1000D /WAW-1000E |
WAW-1200E |
WAW-2000E |
|||
Control Way |
Constant stress uniform deformation constant displacement three closed loop control and program control dealing |
||||||||
Number of Screw drivers |
4 |
||||||||
Max. Load(KN) |
100 |
200 /300 |
600 |
1000 |
1200 |
2000 |
|||
Load Accuracy |
≤± 1%/ ≤± 0.5% |
||||||||
Load Range |
2%~100%FS |
||||||||
Load Resolution |
1/300000 |
||||||||
Deformation Measurement Range |
2%~100%FS |
||||||||
Deformation Accuracy |
≤± 1% |
||||||||
Displacement Resolution |
0.01mm |
||||||||
Testing speeds (mm/min) |
0.1~118 |
0.1~123 |
0.1~123 |
0.1~70 |
0.1~70 |
0.1~70 |
|||
Adjustable crosshead speed(mm/min) |
450 |
450 |
350 |
350 |
320 |
320 |
|||
Displacement Error |
≤±0.5% |
||||||||
Max. Piston Stroke(mm) |
200 |
200 |
200 |
200/250 |
250 |
250 |
|||
Max. Tension Test Space (mm) |
780 |
780 |
900 |
950/980 |
930 |
1250 |
|||
Max. Compression Test Space |
550 |
550 |
650 |
700 |
640 |
850 |
|||
Column Effective Spacing(mm) |
485 |
485 |
500 |
560/580 |
610 |
800 |
|||
Clamping Method |
Hydraulic Automatic Clamp |
||||||||
Flat Specimen Clamping Width(mm) |
80*80 |
80*80 |
90*90 |
100*100 |
120*110 |
150*120 |
|||
Compression Plate Size |
Φ 160mm |
||||||||
Bending Roller Distance |
450mm |
||||||||
Width Of Bending Rollers |
120mm |
||||||||
Power Supply |
3-phase, AC380V, 50Hz (Can Be Customized) |
||||||||
