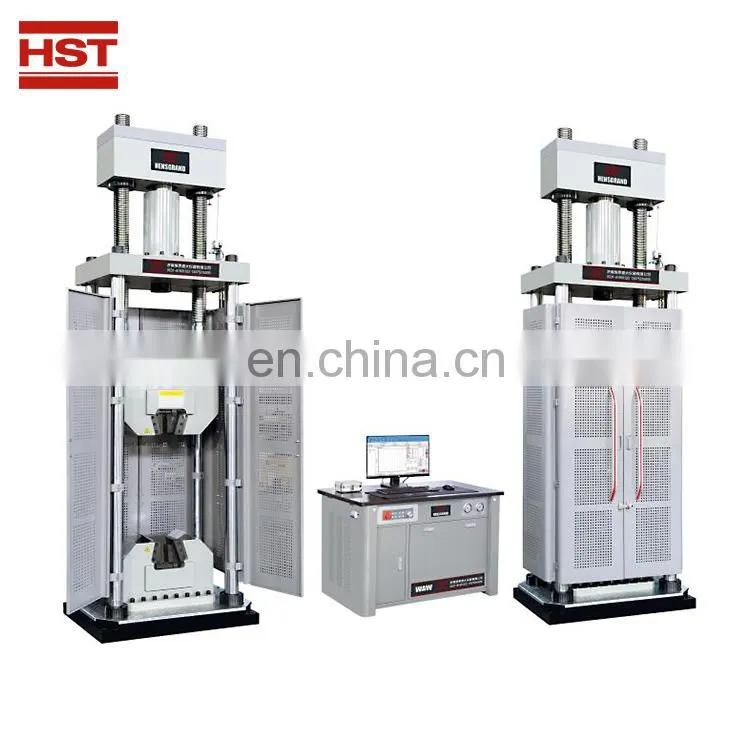

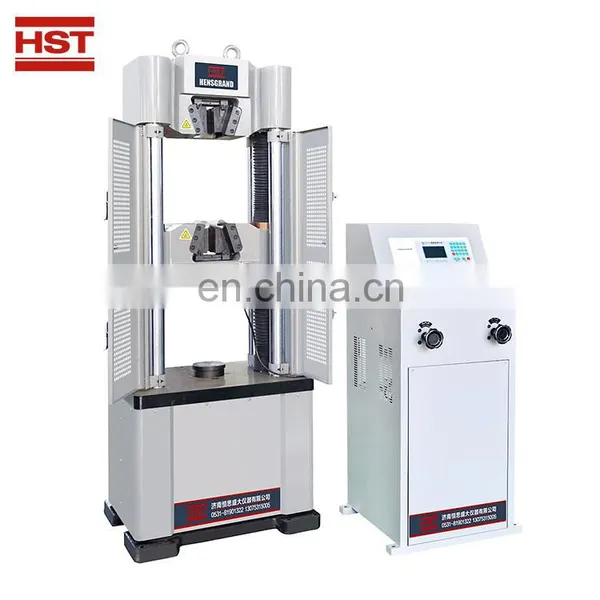

HST WAW-1000A/1500A/2000A Hydraulic Universal Testing Machine for Metals Fasteners Construction materials Non Metal materials
1.Introduction Application
WAW-1000A/1500A/2000A Hydraulic Universal Testing Machine is ideal for high-capacity tension,
compression, bend/flex, and shear testing.
It accords with the correspondent requirements of BS, EN, ISO, ASTM,JIS and many other testing methods.
These frames feature dual spaces so users can quickly change between tension and compression testing
without having to remove heavy fixtures.
2. Standards of universal testing machine price
ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards
3. Main specifications universal testing machine price
|
Model |
WAW-1000A |
WAW-1500A |
WAW-2000A |
|
Control Way |
Constant stress uniform deformation constant displacement three closed loop control and program control dealing
|
||
|
Max. Load(kN) |
1000 |
1500 |
2000 |
|
Load accuracy |
Class 1 |
||
|
Load range |
2%~100%F·S |
||
|
Load resolution |
Capacity/300, 000 (fully auto scaling of single measurement |
||
|
Deformation Measurement Range |
2%~100%FS
|
||
|
Stroke |
250mm |
||
|
Test speed(mm/min) |
0-80 |
||
|
Max. Tension Test Space (mm)
|
1400 |
1400 |
1000 |
|
Compression space |
1200 |
1200 |
800 |
|
Nominal maximum specimen sizes Diamater(mm) |
Φ13-26,Φ26-45, Φ45-60 |
Φ13-26,Φ26-45, Φ45-60 |
Φ20~Φ50, Φ50~Φ80, Φ80~Φ110 |
|
Nominal maximum specimen sizes Thickness(mm) |
5~20, 20~40 |
5~30, 30~60 |
5~50, 50~100 |
|
Column Effective Spacing(mm)
|
850 |
850 |
1000 |
|
Platen dimensions(mm) |
204 |
204 |
204 |
|
Load frame(mm) |
1200*800*3620 |
1200*800*3620 |
1510*1040*4500 (5500) |
|
Weight(kg) |
6000 |
6000 |
6500 |
