Product Description
Tearing lcd electronic plastic tensile tester

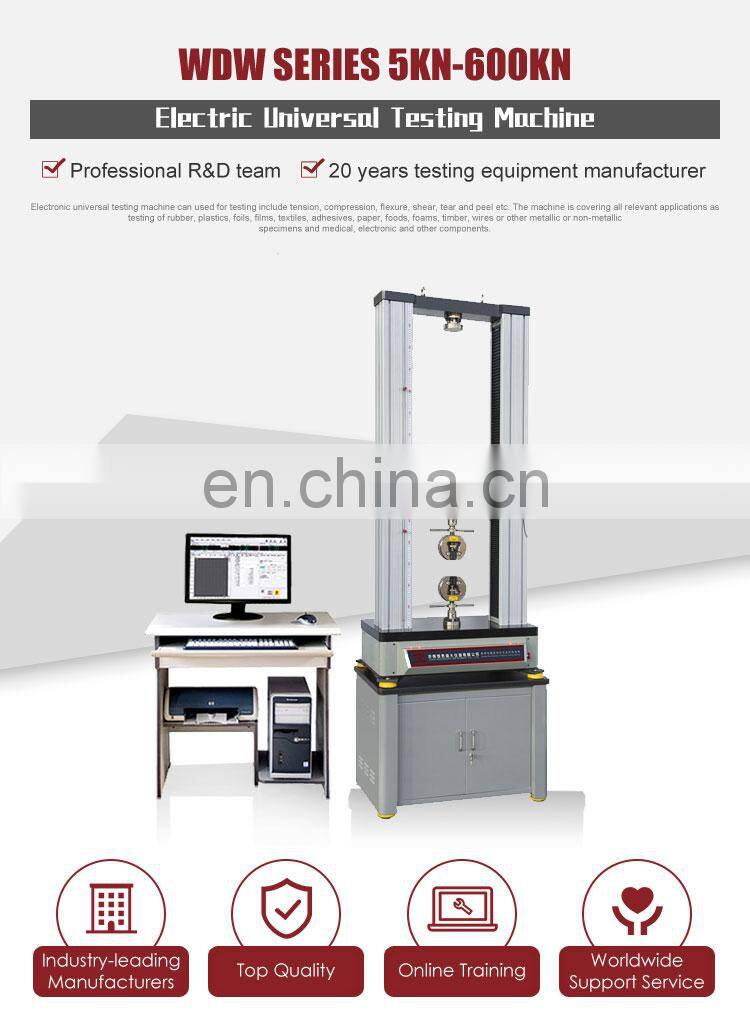

WDW series computer electronic 20kn 50kn 100kn universal testing machines are designed and manufactured according to ASTM, ISO, DIN, GB and other international standards.
Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.

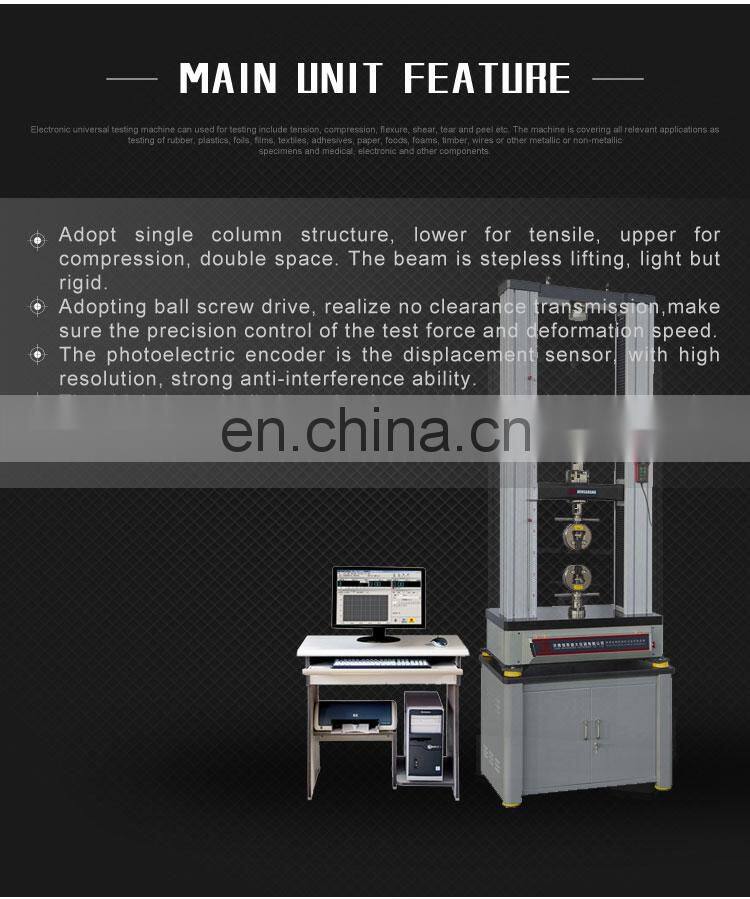

Main Unit Feature:
1. Adopt floor structure,High Stiffness, lower for tensile, upper for compression,upper for tensile,lower for compression, double space. The beam is step less lifting.
2. Adopting ball screw drive, realize no clearance transmission,make sure the precision control of the test force and deformation speed.
3. The shiel plate with limit mechanism used to control the beam moving range, in order to avoid sensor damaged due to the moving distance is too large.
4. The table, moving beams is made of high quality precision machining steel plate , not only
reduce the vibration generated by specimen fracture, but also improve the stiffness.
5. Three columns of mandatory orientation, make the main unit rigidity much improved, to further ensure the repeatability of measurement.
6. Adopt bolt type grip installation, make the grip replace easier.
7. Adopt AC servo driver and AC servo motor, with stable performance,more reliable. Have
over-current, over-voltage, over speed, overload protection device.
over-current, over-voltage, over speed, overload protection device.
Computer control universal Testing machine specification :
NO. | Items | Model | WDW-10 | WDW-20 | WDW-30 | WDW-50 | WDW-100 |
1 | Host | Structure | column and 2 Ball Screw | ||||
Max. Load(kN) | 10 | 20 | 30 | 50 | 100 | ||
Tensile space(mm) | 670 | 770 | 650 | ||||
Compression space(mm) | 900 | 1000 | 1000 | ||||
Effective test width | 450 | 450 | 550 | ||||
size(mm) | 850 x 590 x 1750 | 840 x 570 x 1850 | 950x660x2000 | ||||
Host Weight (mm) | 370kg | 420kg | 680kg | ||||
Power Supply | 220V/50-60Hz | ||||||
2 | control system | Controller | 24 bit AD, external controller | ||||
communication mode | USB 2.0 | ||||||
Test software | HKTest | ||||||
Hand control box | 320x240 Display Sscreen,8 key control |
NO. | Items | Model | WDW-200E | WDW-300E | WDW-500E | WDW-600E |
1 | Host | Structure | 4 column and 2 Ball Screw | |||
Max. Load(kN) | 200 | 300 | 500 | 600 | ||
Tensile space(mm) | 700 | 700 | 800 | 800 | ||
Compression space(mm) | 1100 | 1100 | 800 | 800 | ||
Effective test width(mm) | 600 | 600 | 700 | 700 | ||
size(mm) | 1102*870*2395 | 1450*1140*2730 | ||||
Host Weight (kG) | 2200 | 4000 | ||||
Power Supply | 380V/50-60Hz | |||||
2 | Control System | Controller | 24 bit AD, external controller | |||
communication mode | USB 2.0 | |||||
Test software | HKTest | |||||
Hand control box | 320x240 Display Sscreen,8 key control |
