Product Description

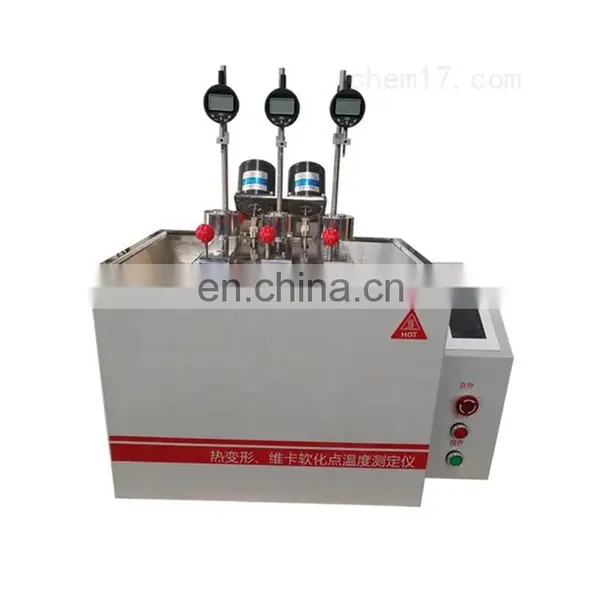

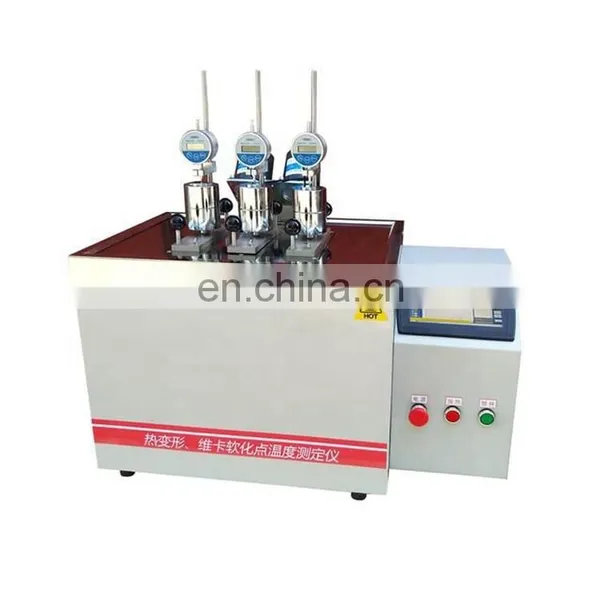

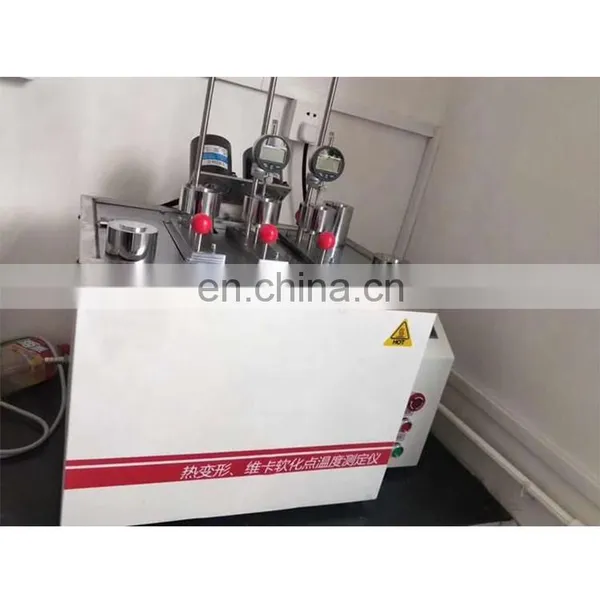

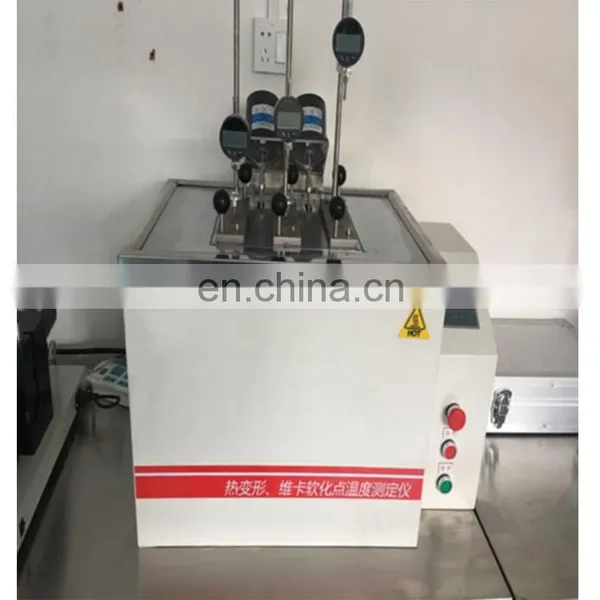

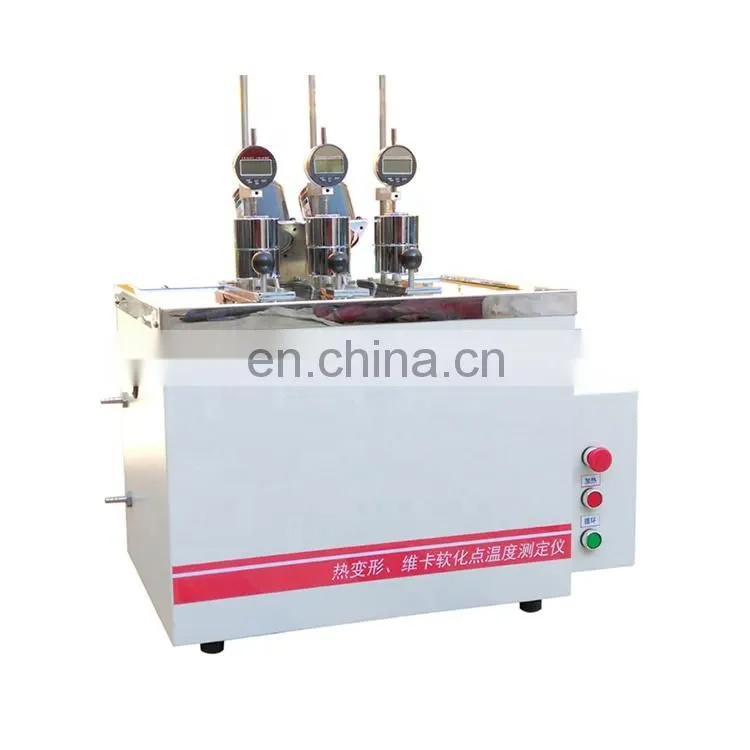

Chinese Supply Laboratory Plastic Rubber Softening Point Vicat Tester
Instruction:
The tester used to measure plastic, rubber, nylon, cable … macro molecule material thermal deformation temperature and vi cat softening temperature, the main sensor, element with high-quality, high reliability, security, the sample frame has the function of automatic up and down, simultaneity equip power test software system function mightiness, is a suit of special software of thermal deformation temperature, vi cat softening point temperature test.
Standard:
ISO 2507 Thermoplastics pipes and fittings- Vicat softening temperature - Part1: General test method
ISO 75 Plastics - Determination of temperature of deflection under load
ISO 306 Plastics-Thermoplastic materials - Determination of Vicat Softening Temperature (VST)
ASTMD 1525 Standard Test Method for Vicat Softening Temperature of Plastics
ASTMD 648 Standard Test Method for Deflection Temperature of Plastics Under Flexural Load in The Edgewise Position
Features:
Multiple security protection: Mechanical temperature upper limit protection switch, software temperature upper limit protection,
to ensure safe and stable operation of the test. High-precision measurement and control system: The high-performance temperature
sensor and the advanced capacitive-type digital display dialimeter are used to accurately measure the small changes of the sample.
The advanced PID algorithm and the all-optical isolation phase-modulation module are used for temperature control to ensure that
the heating rate error is less than 0.5 °C.
|
Model |
KDTV3003S |
|
Structure |
Table type |
|
Temperature control range |
room temperature—300°C |
|
Temperature rise speed |
(120±10)°C/h (12±1°C/6min); (50±5)°C/h(5±0.5°C/6min) |
|
Temperature accuracy |
±0.5 °C (50 degree heating rate) ±1 °C (120 degree heating rate) |
|
Temperature measurement point |
1 |
|
Maximum deformation error |
0.1°C |
|
deformation range |
0~10mm |
|
Maximum deformation error |
±0.01mm |
|
Sample support span |
64mm,100mm |
|
Number of test racks |
3 |
|
Range of load |
0.75N—50N |
|
Test space |
60—120 mm (Adjustable continuously ) |
|
Display |
LCD display |
|
Using media |
Methyl silicone oil or transformer oil |
|
Cooling method |
Natural cooling above 150°C, water cooling below 150°C or natural cooling |
|
Power supply |
4500VA 220VAC 50Hz |
