1.Introduction

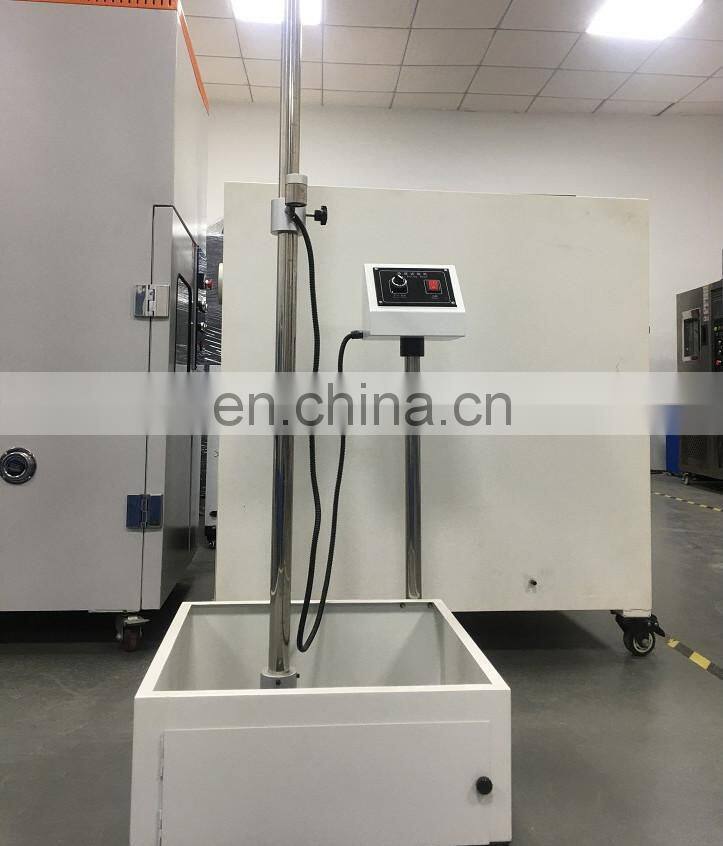

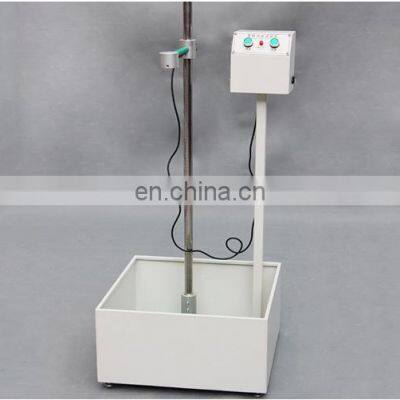

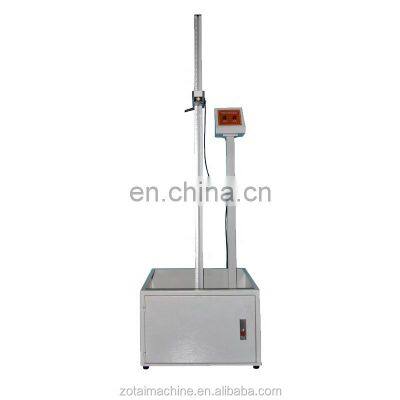

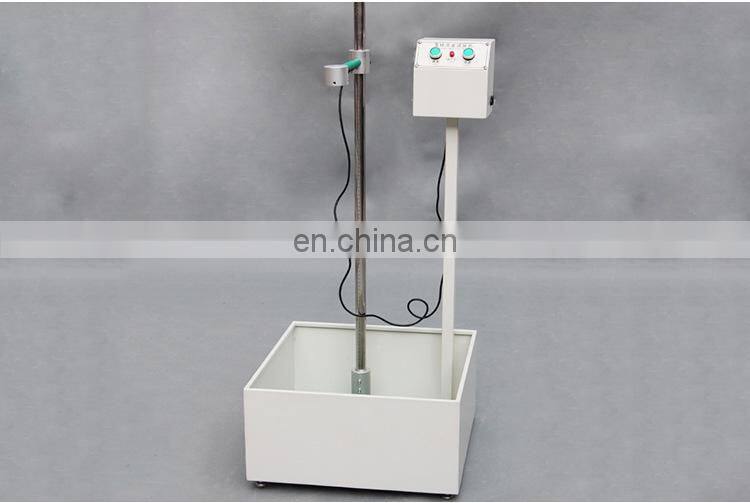

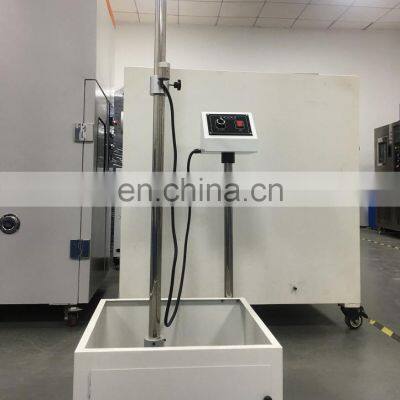

Ball drop impact testing machine price  is used for testing the fastness of mobile phone, plastic, ceramics, glass fiber,ect such materials. Uses certain weight steel ball and adjust to certain height to let it fall freely and impact test  sample.  Then check the sample damage degree to judge the sample quality.

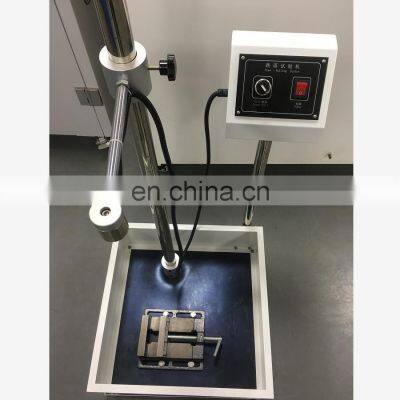

Ball drop impact testing machine price  uses DC electromagnetic control mode, put the steel ball below the electromagenetism sucker and the ball will be absorbed automatically. Press the dropping key, the steel ball will be released instantly and fll to impact the sample surface. The drop height can be adjusted and there are altitude

scale to measure dropping height.

2.Standards

 Reference JIS test standards

 3.Speficiations

 1. Max drop height: 1500mm, 2000mm (optional or custom-made)

 2. Drop ball control mode: DC electromagnetic

 3. Steel ball weight: 112, 198, 225, 357, 533, 1041, 2280g
 4. Dimension: 500*500*1700 (2100)mm
 5. Protector: Crash pads on both sides
 6. Power: 220V/50HZ
