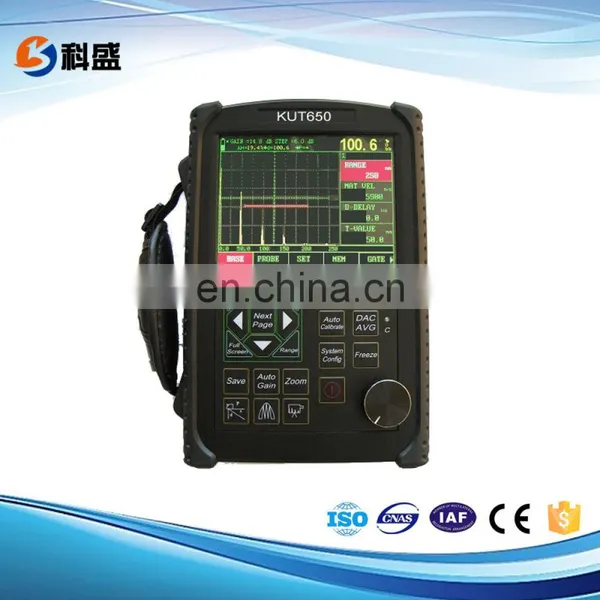

KUT650 Auto Calibration Digital Ultrasonic Flaw Detector
Features
•Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,Φ);
•Automated switch three staff gauge ((Depth d,level p,distance s);
•Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity ;
•Convenient to make and use DACTCG and AVG to evaluate the echo, the curve can be modified
and compensated
•6dB DAC functions;
•Standards of test for DAC is saved.
•500 independence setup, any criterion can be input freely, we can work in the scene without test block;
•Big memory of 1000 A graph
•Automated gain and gain scan;
•Peak Hold and Peak Memory;
•B scan;
•AWS D1.1
•Automated make video of test process and play; use USB flash disk,the length of video is unlimited.
•Powerful pc software and reports can be export to excel;
•Li battery, continue working time up to 10 hours;
•The embeded software can be online updated;
Specifications
Title |
Parameter |
Title |
Parameter |
Measuring Range(mm) |
0 ~ 10000 |
Measurement Mode |
Single,Dual,Thru |
Vertical Linearity Error |
≤3% |
Reject |
0~80% |
Horizontal Linearity Error |
≤0.1% |
Pulse Displacement(μs) |
-20 ~ +3400 |
Sensitivity Leavings |
≥62dB |
Zero(μs) |
0.0 ~ 99.99 |
Dynamic range |
≥34dB |
Port Type |
BNC / LEMO |
Resolving Power |
≥36dB |
Operating Temperature (℃) |
-20~50 |
Frequency Range(MHz) |
0.5 ~ 15 |
H×W×D(mm) |
240×156×50 |
Gain(dB) |
0 ~ 120 |
Weight(kg) |
1.0(with battery) |
Material Velocity(m/s) |
1000 ~ 15000 |
|
|
ultrasonic flaw detector
1. What about your delivery time?
A: We have skilled workers and professional work division for assembly and checkout. Usually, our
delivery time is 7~14days.
2. What about the transportation?
A: We have stable forwarding agent for Air transportation and Sea transportation. And also express
delivery of TNT, DHL.
3. What about your packaging?
A: Digital material universal testing machine packed with export standard wooden box.
ultrasonic flaw detector
After-sales service commitment
Warranty
The testing machine is guaranteed for a year by Jinan Kason Testing Co., LTD and has whole-life service
(including machinery, clamps, hardware, software).
Training
1. We will provide you the operation video about how to install and operate the equipment. We also sincerely
welcome every customer to visit and learn the equipment operation.
2. We can arrange engineer to train the operation of equipment to customer’s company when you need.
Maintenance services
Consultation services. We answer your question timely via the telephone or email.
Our exquisite technology, excellent quality, competitive price, good service and you give us the concern and
support, there will be enjoyable and long-term friendly cooperation.
ultrasonic flaw detector
ultrasonic flaw detector
